Exploded View

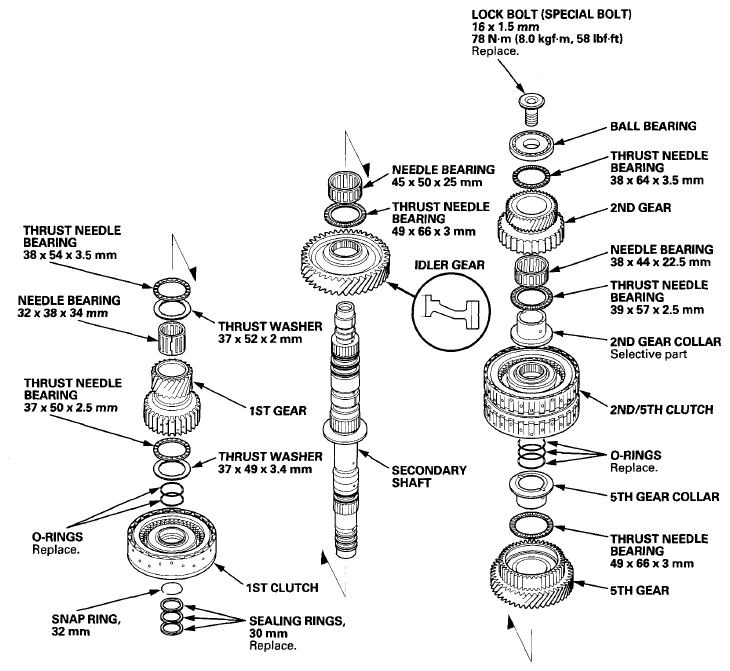

Fig 1: Exploded View Of Secondary Shaft With Torque Specifications

Courtesy of AMERICAN HONDA MOTOR CO., INC.

NOTE: Refer to the EXPLODED VIEW as needed during the following procedure.

Remove the sealing rings (A).

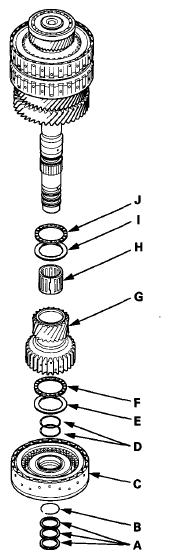

Fig 2: Identifying Sealing Rings And Snap Ring
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Remove the 32 mm snap ring (B), and remove the 2nd clutch (C) and O-rings (D).
Remove the 37 x 49 x 3.4 mm thrust washer (E), the 37 x 50 x 2.5 mm thrust needle bearing (F), 1st gear (G), the 32 x 38 x 34 mm needle bearing (H), the 37 x 52 x 2 mm thrust washer (I), and the 38 x 54 x 3.5 mm thrust needle bearing (J).
Secure the idler gear (A) on the secondary shaft (B) in a bench vise with wood blocks, loosen the lock bolt (C), and remove it.
NOTE: After this procedure, remove wood chips that may be stuck to the gear.

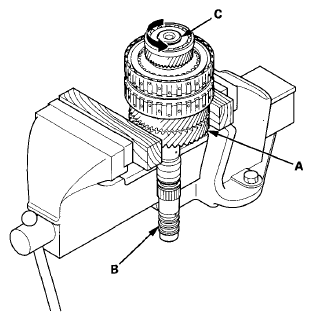

Fig 3: Loosening Lock Bolt
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Place the idler gear (A) on press bases (B), and place a spacer (C) between the secondary shaft (D) and the press to prevent damaging the secondary shaft.

Fig 4: Placing Idler Gear On Press Bases, And Place Spacer Between Secondary Shaft
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Remove the ball bearing (A), the 38 x 64 x 3.5 mm thrust needle bearing (B), 2nd gear (C), the 38 x 44 x 22.5 mm needle bearing (D), the 39 x 57 x 2.5 mm thrust needle bearing (E), the 2nd gear collar (F), the 2nd/5th clutch (G), the O-rings (H), the 5th gear collar (I), the 49 x 66 x 3 mm thrust needle bearing (J), 5th gear (K), the 45 x 50 x 25 mm needle bearing (L), the 49 x 66 x 3 mm thrust needle bearing (M), and the idler gear (N) using a press.

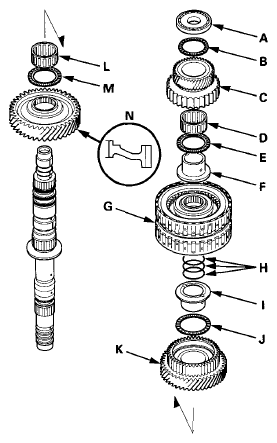

Fig 5: Identifying Ball And Needle Bearings, Thrust Needle Bearing, 2nd And 5th Gears And Collars, 2nd/5th Clutch, O-Rings And Idler Gear
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Inspect the bearings for galling and rough movement.
Check the shaft bearing surfaces for scoring and excessive wear, and check the shaft splines for excessive wear and damage.
Check the secondary shaft 2nd gear and 5th gear axial clearance (see SECONDARY SHAFT 2ND GEAR AND 5TH GEAR AXIAL CLEARANCE INSPECTION ), and check the secondary shaft installation height (see SECONDARY SHAFT INSTALLATION HEIGHT INSPECTION/ADJUSTMENT ).
