Selector Control Shaft Bearing Replacement

Special Tools Required

• Driver Handle, 15 x 135L 07749-0010000
• Bearing Remover Shaft Set, 15 mm 07936-KC10500
• Slide Hammer 07936-371020A
• Bearing Driver Attachment, 28x30 mm 07946-1870100

1. Remove the selector control shaft bearing from the transmission housing using the 15 mm bearing remover shaft and the slide hammer.

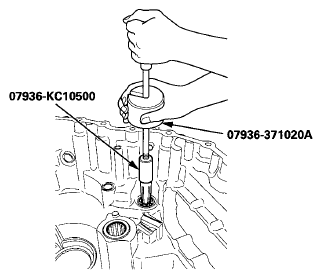

   Fig 1: Removing Selector Control Shaft Bearing Using Bearing Remover Shaft And Slide Hammer

   Courtesy of AMERICAN HONDA MOTOR CO., INC.
2. Install a new bearing until it bottoms in the transmission housing using the 15 x 135L driver handle and the 28 x 30 mm bearing driver attachment.

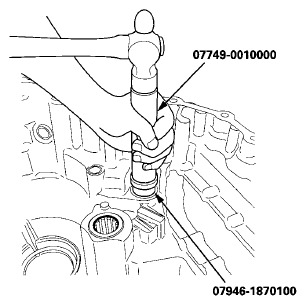

   Fig 2: Installing New Bearing Using Driver Handle And Bearing Driver Attachment

   Courtesy of AMERICAN HONDA MOTOR CO., INC.

Special Tools Required

• Bearing Driver Attachment, 32 x 35 mm 07746-0010100
• Driver Handle, 15 x 135L 07749-0010000
• Slide Hammer 07936-371020A
• Bearing Remover Shaft Set, 15 mm 07936-KC10500

1. Remove the selector control shaft bearing from the torque converter housing using the 15 mm bearing remover shaft and the slide hammer.

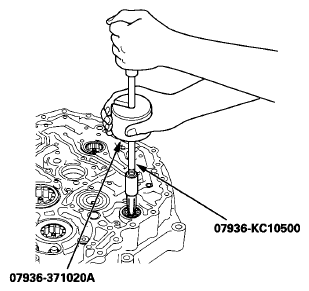

   Fig 1: Removing Selector Control Shaft Bearing Using Bearing Remover Shaft And Slide Hammer

   Courtesy of AMERICAN HONDA MOTOR CO., INC.
2. Install a new bearing until it bottoms out in the torque converter housing using the 15 x 135L driver handle and the 32 x 35 mm bearing driver attachment.
   Fig 2: Installing Bearing In Torque Converter Housing Using Driver Handle And Bearing Driver Attachment

   Courtesy of AMERICAN HONDA MOTOR CO., INC.
