Shift Lock Solenoid Test

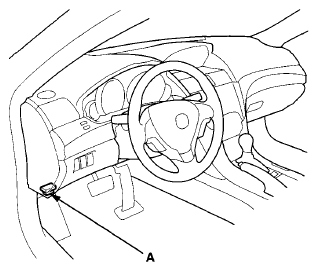

- Connect the HDS to the DLC (A) located under the driver's side of the dashboard.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
- Turn the ignition switch to ON (II), or press the engine start/stop button to select the ON mode. Make sure the HDS communicates with the PCM. If it does not, go to the DLC circuit troubleshooting (see
DLC CIRCUIT TROUBLESHOOTING
).
- Select Shift Lock Solenoid Test in the Miscellaneous Test Menu, and check that the shift lock solenoid operates with the HDS.
- Check that the shift lever can be moved out of P when the Shift Lock Solenoid is ON. Move the shift lever back to P, and check that it locks with the Shift Lock Solenoid is OFF.
- Check that the shift lock releases when the shift lock release is pushed, and check that it locks when the shift lock release is released.
- If the shift lock solenoid does not work properly, go to the SHIFT LOCK SYSTEM TROUBLESHOOTING (see
).
