Transmission Range Switch Replacement

Remove the air cleaner (see THROTTLE BODY CLEANING ).
Remove the spring clip (A) and the control pin (B), then separate the shift cable end (C) from the control lever (D).

Fig 1: Identifying Spring Clip, Control Pin, Shift Cable End And Control Lever
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Check the bushing (E) in the shift cable end for a proper fit and wear. If the bushing is loose or worn, replace the shift cable (see SHIFT CABLE REPLACEMENT ).
Disconnect the transmission range switch connector.

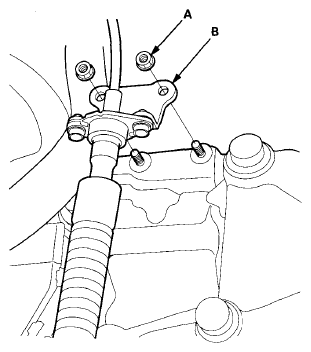

Remove the nuts (A) securing the shift cable bracket (B).

Fig 2: Identifying Nuts And Shift Cable Bracket
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Remove the transmission range switch.

Fig 3: Removing Transmission Range Switch
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Turn the control lever fully counterclockwise to the P position. Turn the control lever clockwise two clicks to the N position.

Fig 4: Turning Control Lever Clockwise Two Clicks To N Position
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Set a new transmission range switch (A) to the N position. Align the cutouts (B) on the rotary-frame with the neutral positioning cutouts (C) on the transmission range switch, then put a 2.0 mm (0.079 in) feeler gauge blade (D) in the cutouts to hold the transmission range switch in the N position.
NOTE: Be sure to use a 2.0 mm (0.079 in) feeler gauge blade or equivalent to hold the transmission range switch in the N position.

Fig 5: Identifying Transmission Range Switch, Cutouts, Neutral Positioning Cutouts And Feeler Gauge Blade
Courtesy of AMERICAN HONDA MOTOR CO., INC.

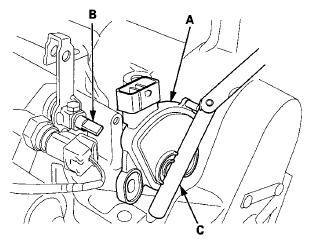

Install the transmission range switch (A) gently on the selector control shaft (B) while holding it in the N position with the 2.0 mm (0.079 in) blade (C).

Fig 6: Identifying Transmission Range Switch, Control Shaft And Blade
Courtesy of AMERICAN HONDA MOTOR CO., INC.

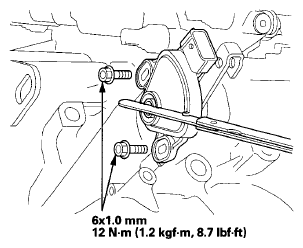

Tighten the bolts on the transmission range switch while you continue to hold the N position. Do not move the transmission range switch when tightening the bolts. Then remove the feeler gauge.

Fig 7: Bolts On Transmission Range Switch With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Check the connectors for corrosion, dirt, or oil, and clean or repair if necessary, then connect the connector securely.

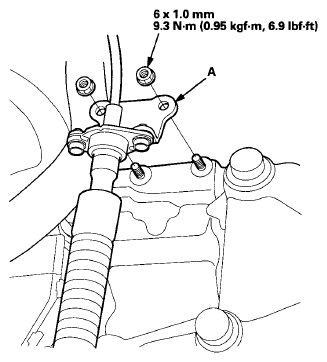

Install the shift cable bracket (A).

Fig 8: Installing Shift Cable Bracket With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.

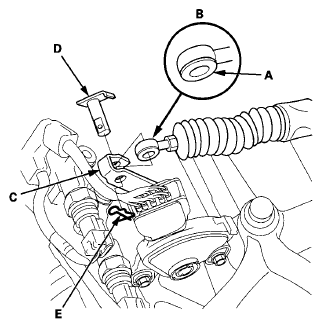

Apply molybdenum grease to the hole in the bushing (A) in the shift cable end (B).

Fig 9: Identifying Bushing, Shift Cable End, Control Lever, Control Pin And Spring Clip
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Attach the shift cable end to the control lever (C), then insert the control pin (D) into the control lever hole through the shift cable end, and secure the control pin with the spring clip (E).
Install the air cleaner (see THROTTLE BODY CLEANING ).
Turn the ignition switch to ON (II), or press the engine start/stop button to select the ON mode. Move the shift lever through all positions, and verify the transmission range switch matches with the A/T gear position indicator.
Check that the engine starts in P and N, and does not start in any other shift lever position.
Check that the back-up lights come on when the shift lever is in R.
Raise the vehicle on a lift, make sure it is securely supported, and allow all four wheels to rotate freely. Then start the engine, and check the shift lever operation.
