Keyless Access RF Unit 2 Replacement

Keyless Access RF Unit 2 Replacement

1. Fold forward the rear seat-back Rear Seat Removal / Installation.

2. Lift the front edge of the seat flap assembly Rear Seat Removal / Installation.

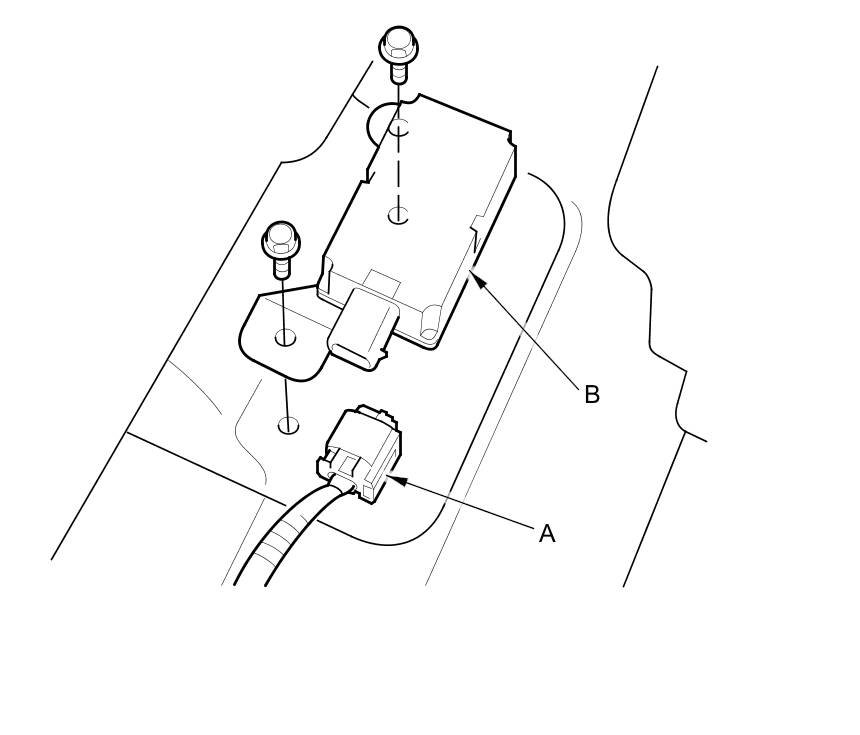

3. Disconnect the 3P connector (A) from RF unit 2 (B).





4. Remove the two bolts, then remove RF unit 2.

5. Install the unit in the reverse order of removal.
