Keyless Access System Mode Switch Test/Replacement

Keyless Access System Mode Switch Test/Replacement

1. Remove the glove box Glove Box Removal / Installation.

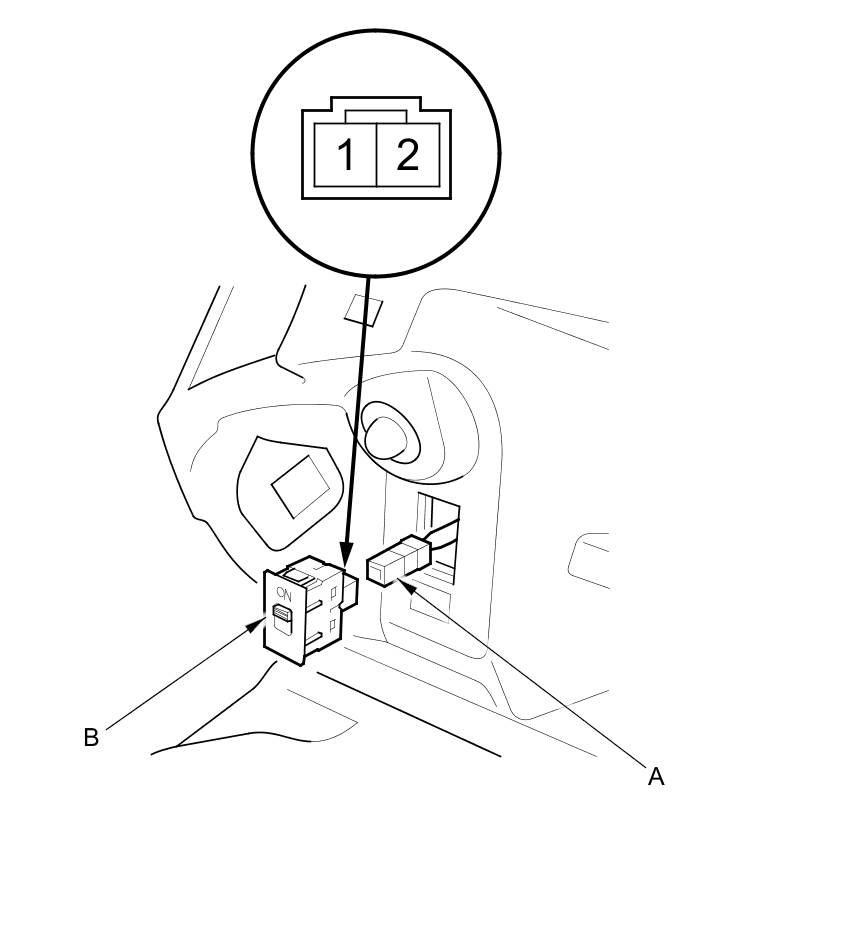

2. Disconnect the 2P connector (A) from the keyless access system mode switch (B).





3. Push out the keyless access system mode switch from the glove box.

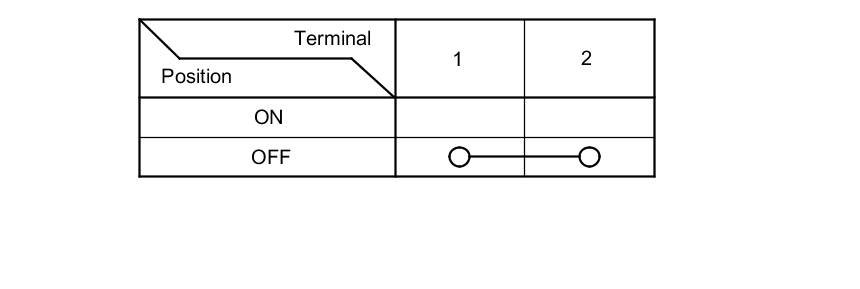

4. Check for continuity between the terminals in each switch position according to the table.





5. If the continuity is not as specified, replace the switch.

6. Install the switch in the reverse order of removal.
