Power Mirror Replacement

Power Mirror Replacement

NOTE: Take care not to scratch the door.

1. Lower the glass fully.

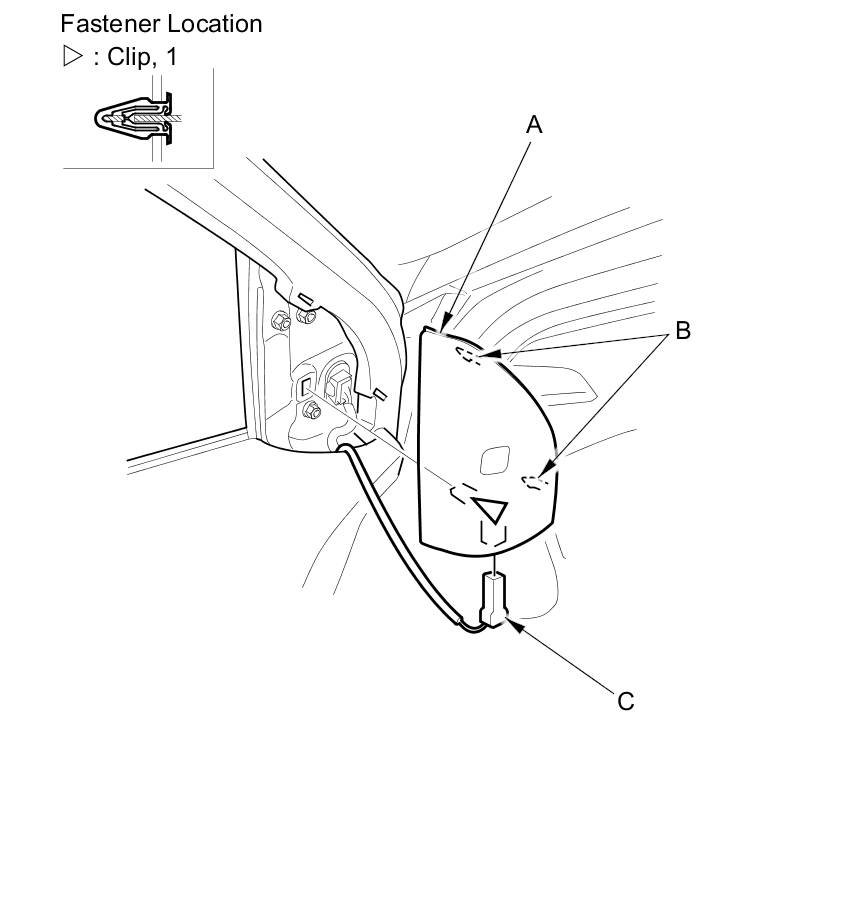

2. Remove the door mirror cover (A).

1. With your hand, carefully pull out the top edge of the door mirror cover to release the hooks (B) and detach the clip.

2. With BSI: Disconnect the BSI alert indicator connector (C).

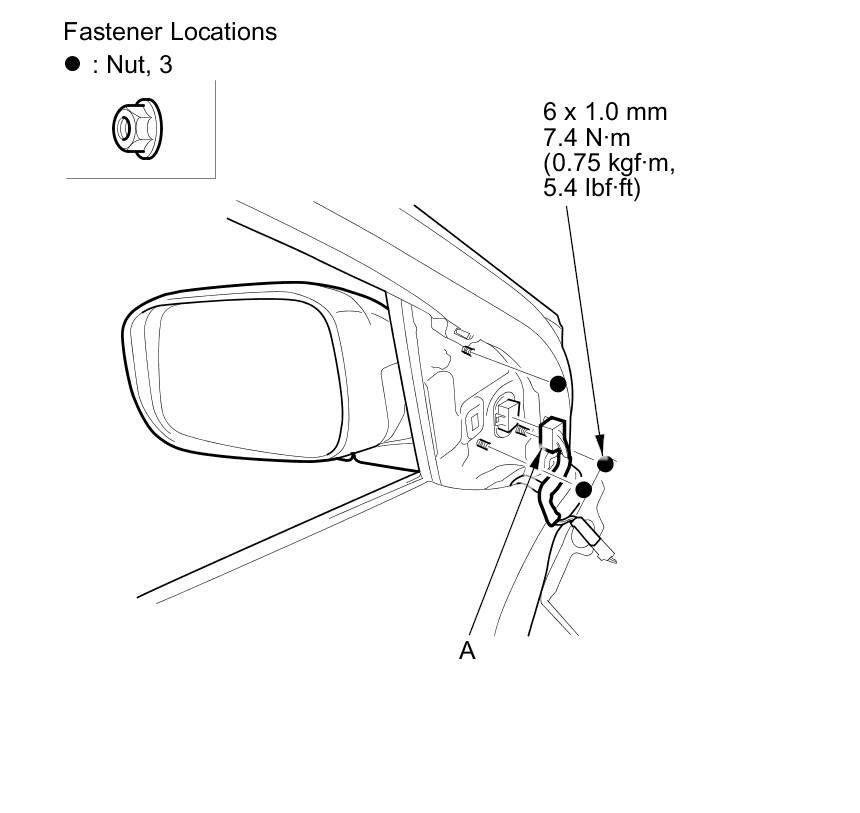

3. Disconnect the power mirror connector (A).





4. While holding the power mirror, remove the nuts securing the mirror.

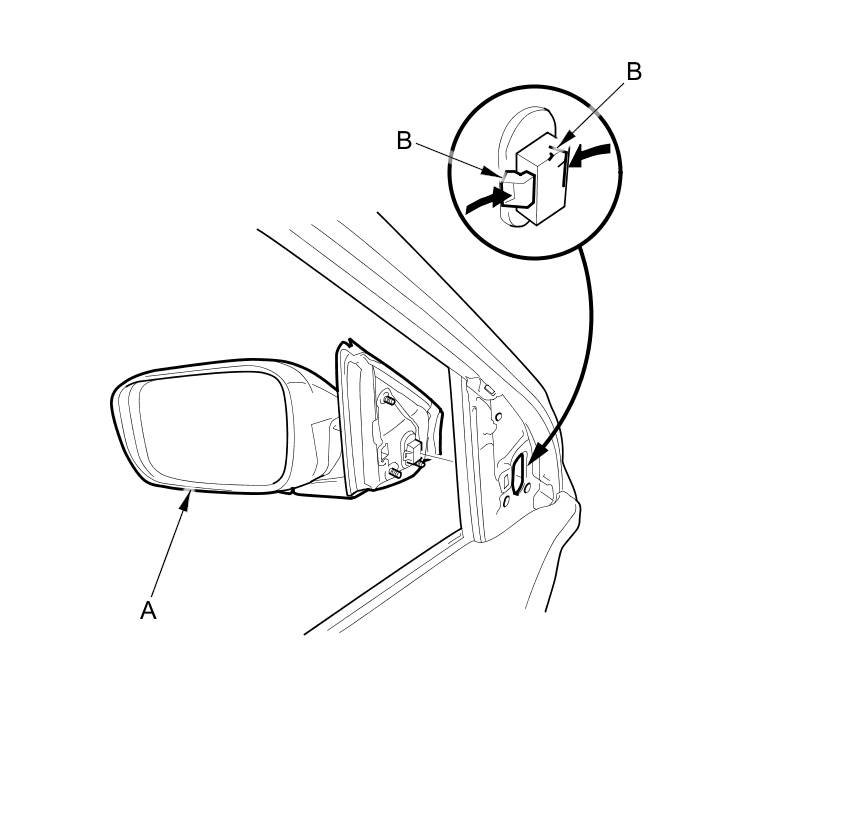

5. While holding the power mirror (A), squeeze the retaining tabs on the connector clips (B), then push out to remove the power mirror.





6. Install the mirror in the reverse order of removal, and note these items:

- If the clip is damaged or stress-whitened, replace it with a new one.
- Make sure each connector is plugged in properly.
- Push the clips and the hooks into place securely.
