Adaptive Cruise Control (ACC) Combination Switch Test

Adaptive Cruise Control (ACC) Combination Switch Test

SRS components are located in this area. Review the SRS component locations Locations and the precautions and procedures Service and Repair before doing repairs or service.

1. Remove the ACC combination switch/distance switch Adaptive Cruise Control (ACC) Combination Switch/Distance Switch Removal/Installation.

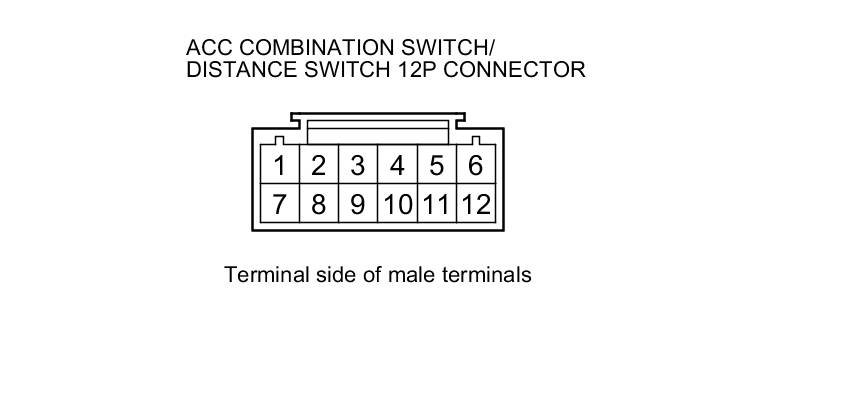

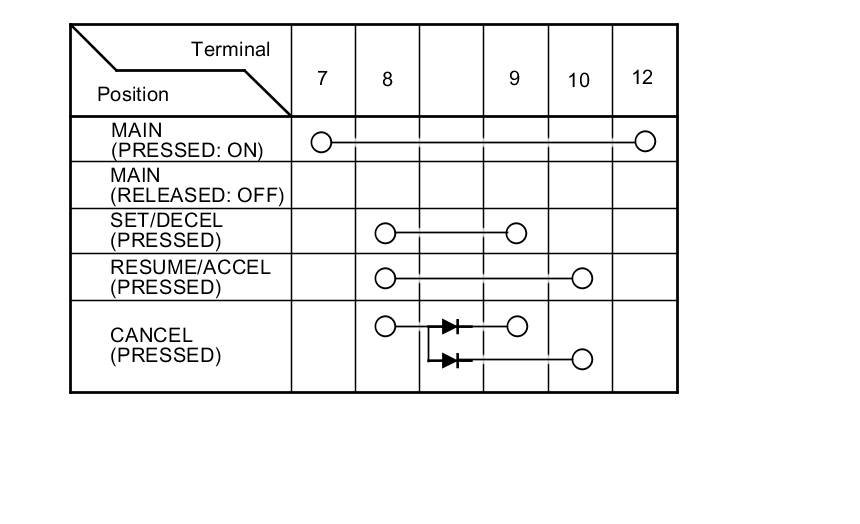

2. On the switch side, check for continuity between the ACC combination switch/distance switch 12P connector terminal in each switch position according to the table.
