Cruise Control Combination Switch Test/Replacement

Cruise Control Combination Switch Test/Replacement

There are SRS components located in this area. Review the SRS component locations Locations, and the precautions and procedures Service and Repair, in the SRS before doing repairs or service.

1. Remove the steering wheel Steering Wheel Removal and disassemble the steering wheel Overhaul.

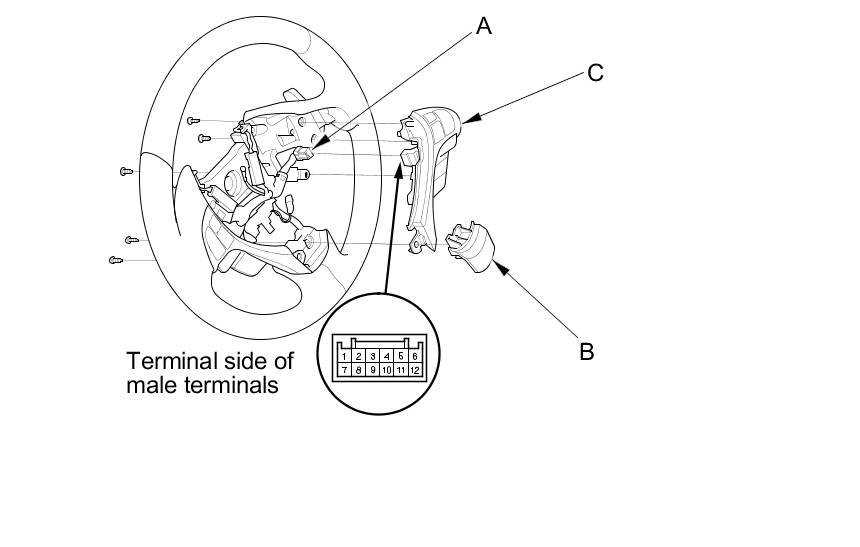

2. Disconnect the cable real subharness connector (A) and the steering wheel center trim (B), then remove the steering wheel trim/cruise control combination switch (C).

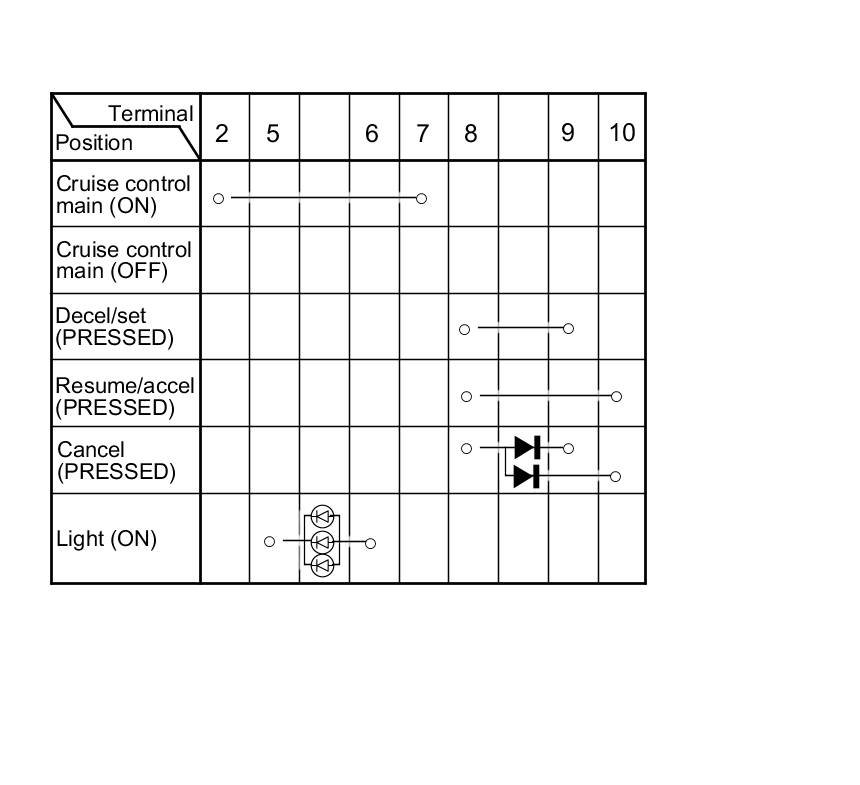

3. Check for continuity between the terminals in each switch position according to the table:

- If there is continuity, and it matches the table, but the cruise control combination switch failure occurred on the cruise control input test, check and repair the wire harness on the switch circuit.
- If there is no continuity in one or both positions, replace the steering wheel trim/cruise control combination switch.





4. Install the cruise control combination switch in the reverse order of removal.
