Left Rear Power Window Switch Connector View
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.

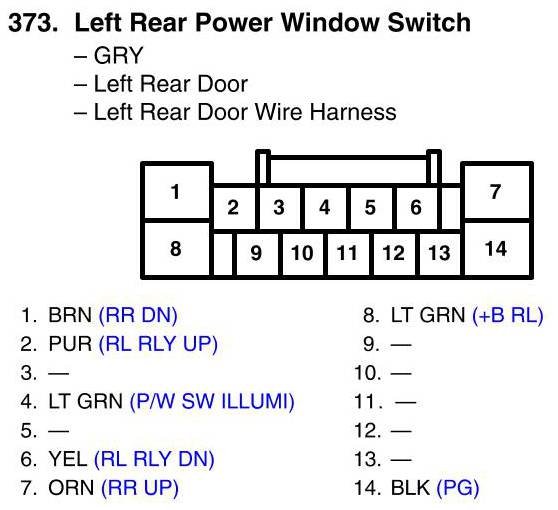

Left Rear Power Window Switch Connector View
