Humidity Sensor: Service and Repair

Humidity/In-Car Temperature Sensor Replacement

1. Remove the driver's dashboard trim Driver's Inner Dashboard Trim Removal / Installation.

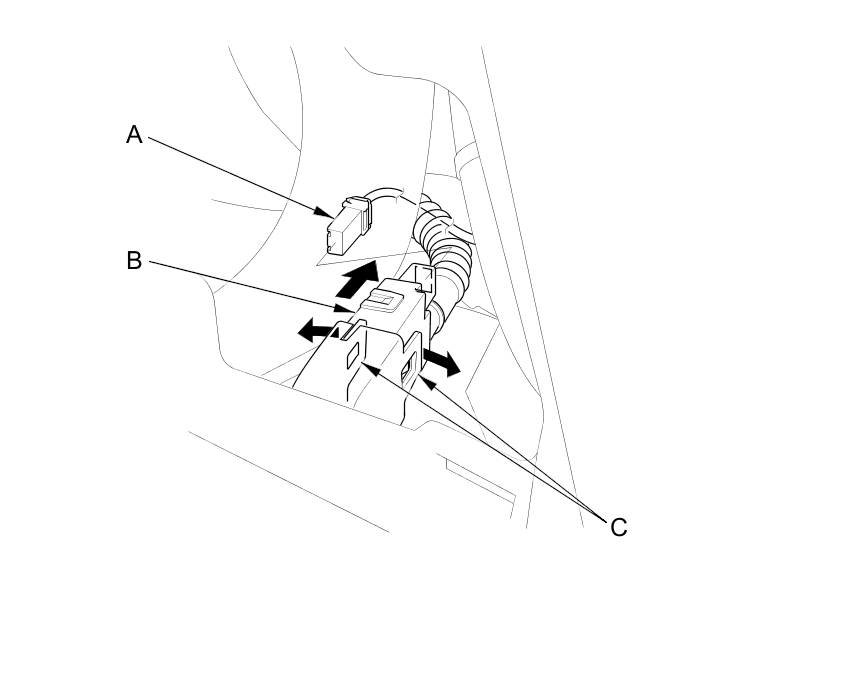

2. Disconnect the connector (A) from the humidity/in-car temperature sensor (B).





3. Unhook the lock tabs (C) of the humidity/in-car temperature sensor, and pull it

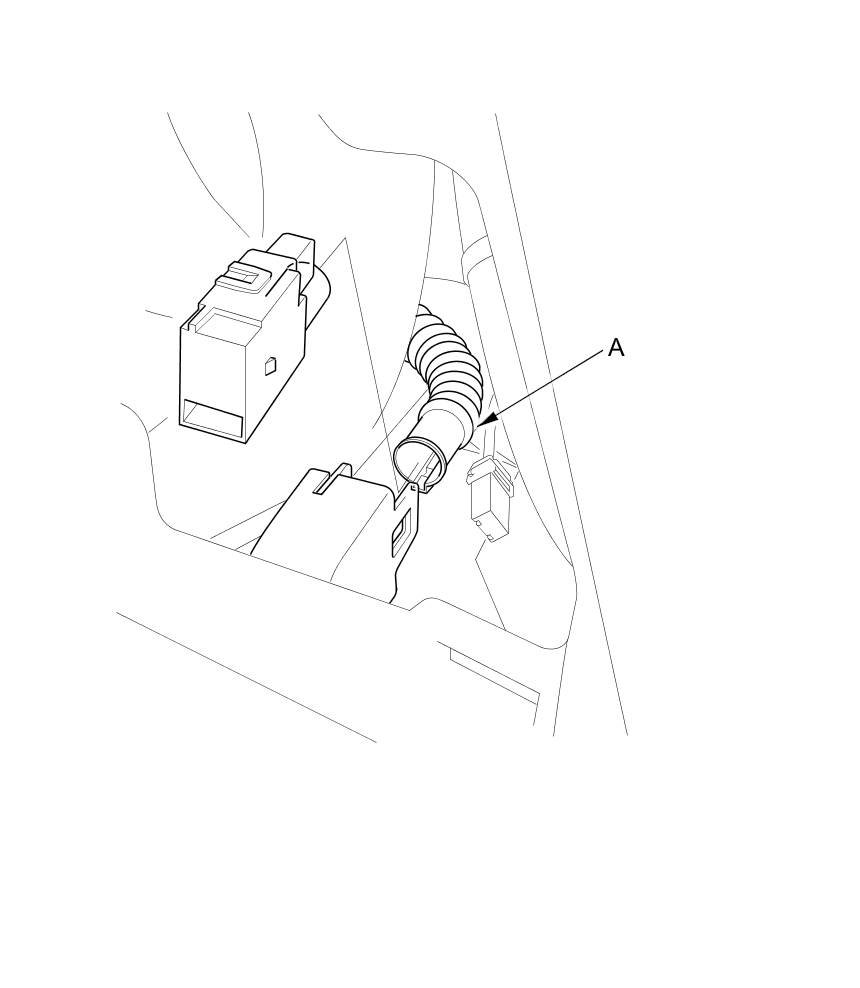

4. Disconnect the aspirator hose (A), and remove the humidity/in-car temperature sensor.






5. Install the sensor in the reverse order of removal.
