Relay And Control Unit Locations - Dashboard
Relay and Control Unit Locations - Dashboard

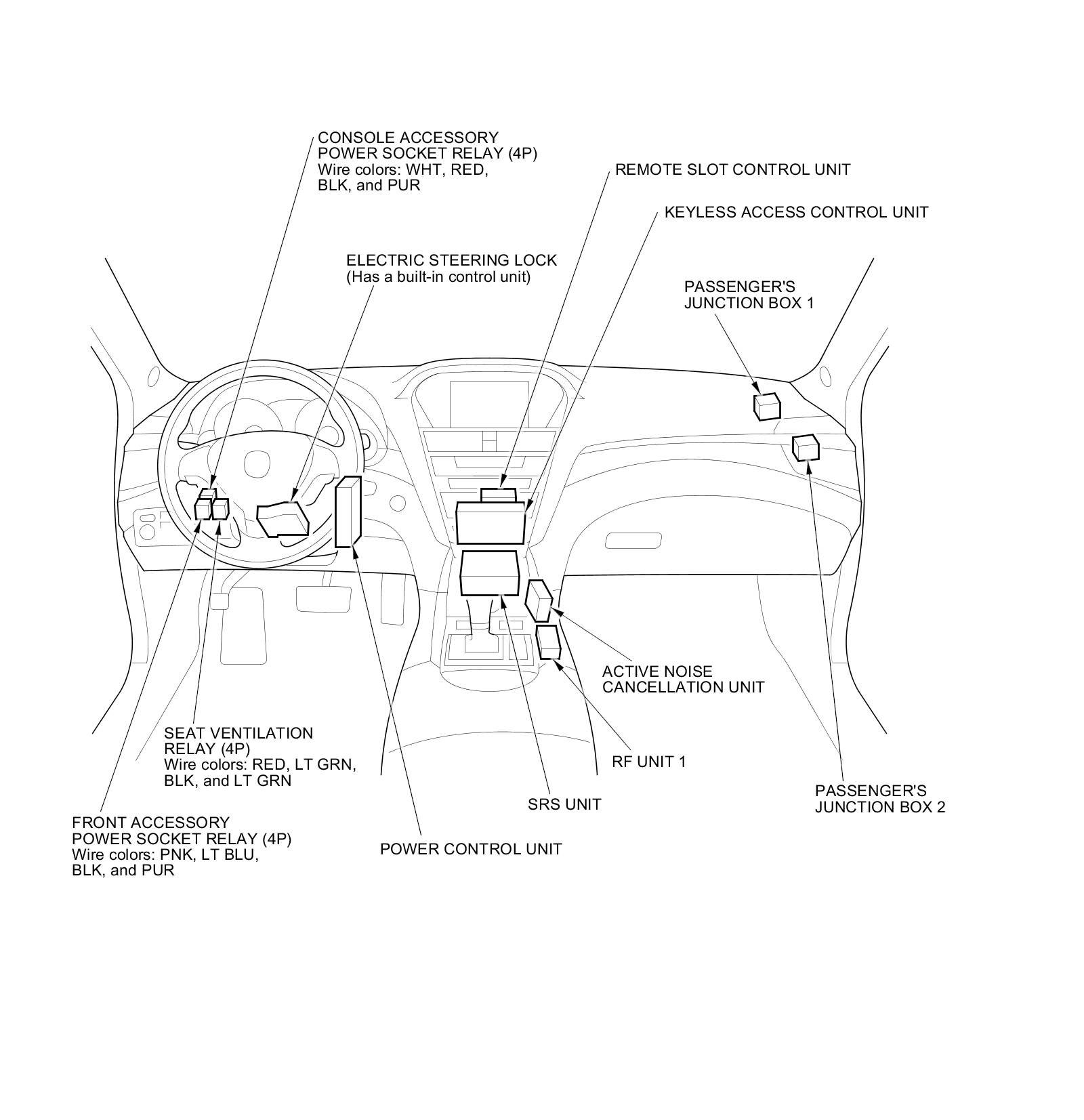

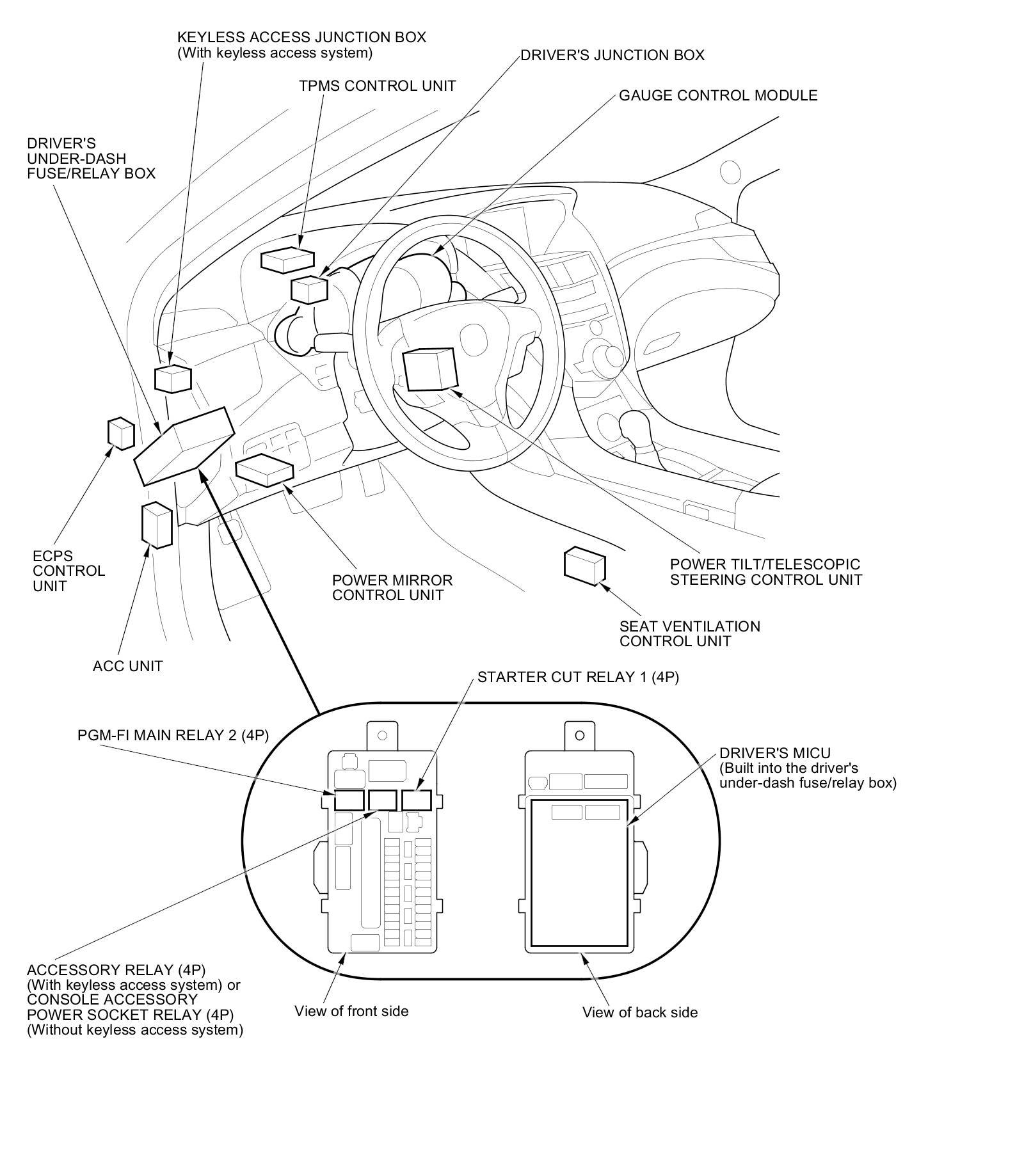

With Keyless Access System

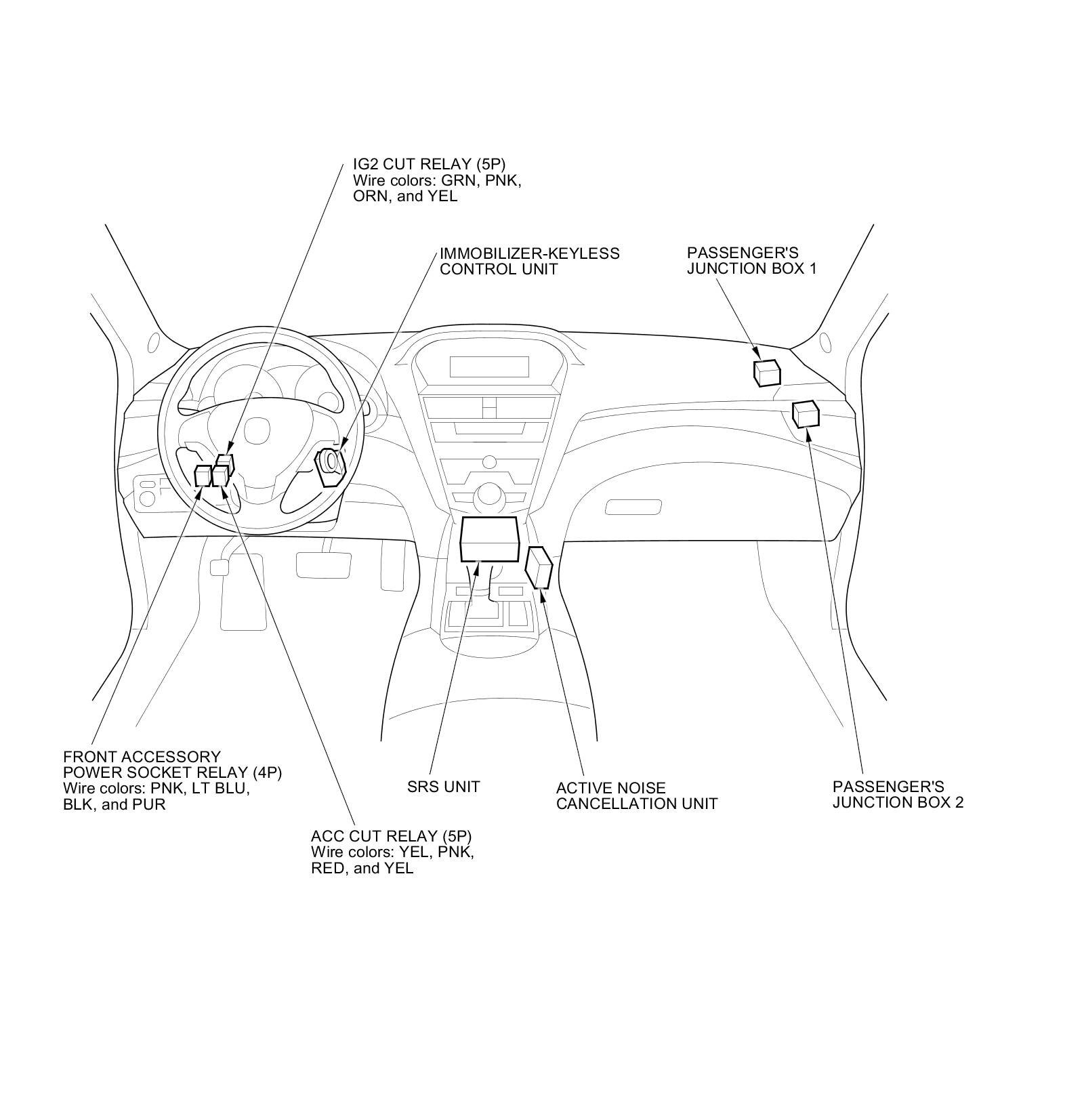

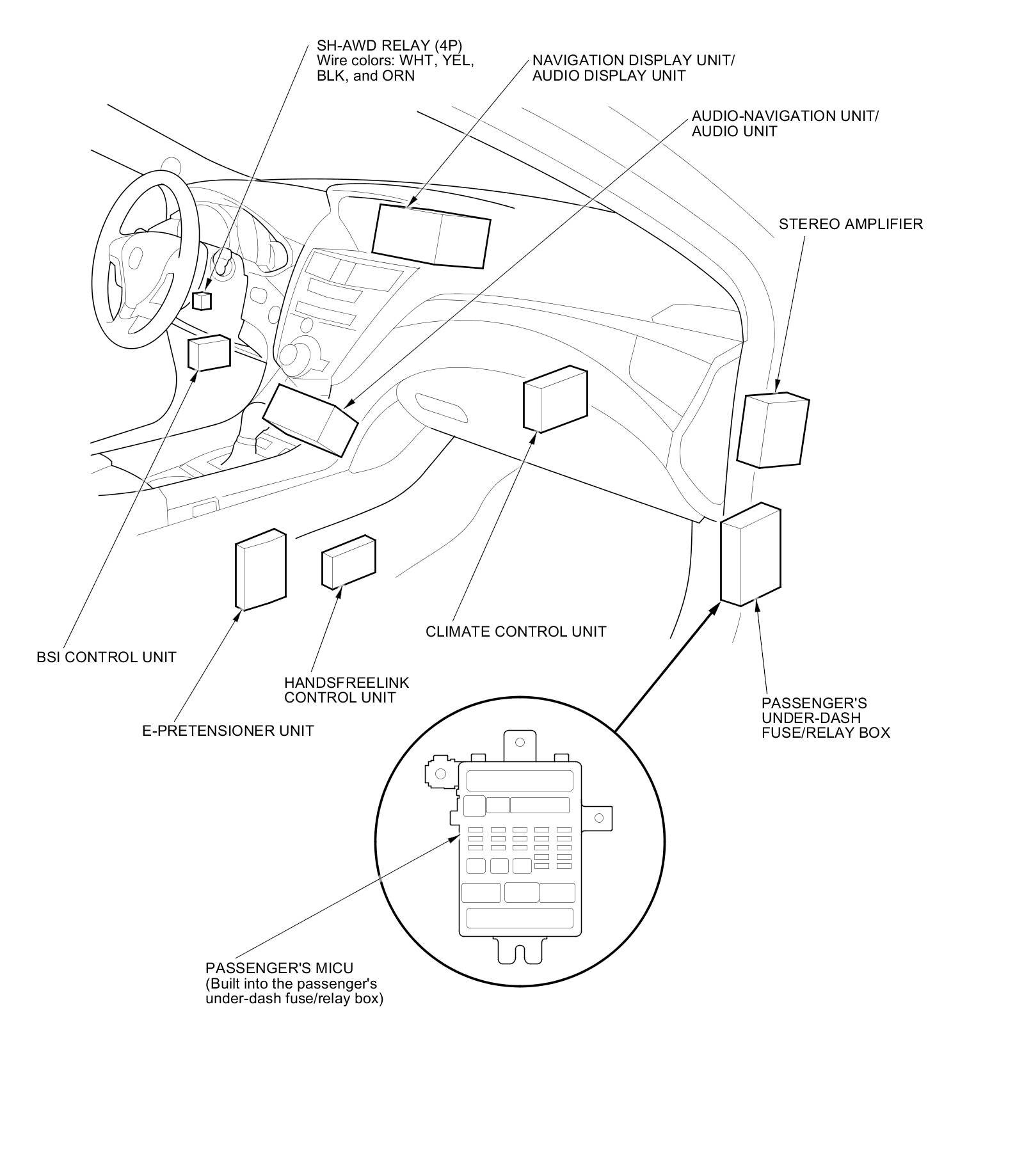

Without Keyless Access System
