Battery Current Sensor: Testing and Inspection

Battery Sensor Input Test

NOTE: Before testing, make sure the battery ground cable is installed correctly, and make sure there is continuity between the battery negative terminal and ground terminal G1.

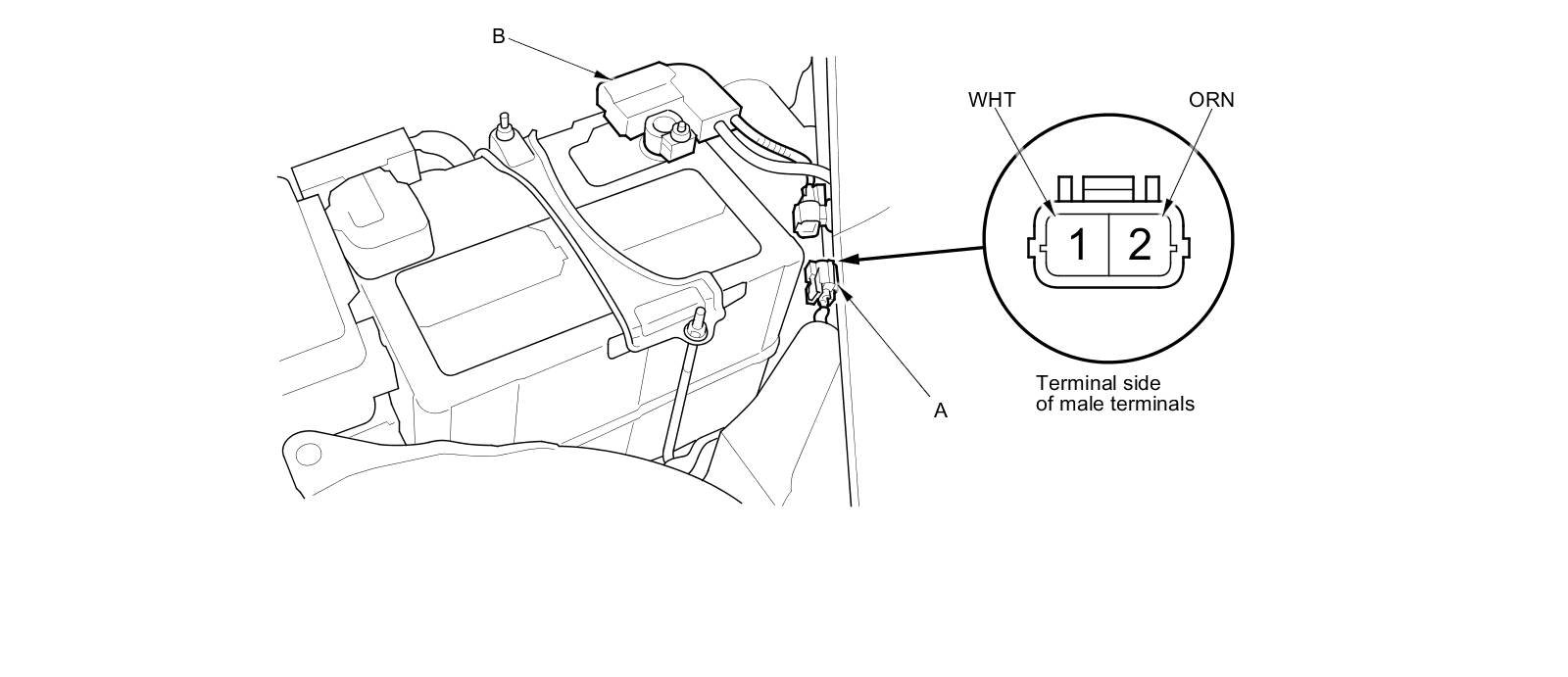

1. Disconnect the 2P connector (A) from the battery sensor (B).





2. Inspect the connector and socket terminals to be sure they are all making good contact.

- If the terminals are bent, loose, or corroded, repair them as necessary, and recheck the system.
- If the terminals look OK, go to step 3.

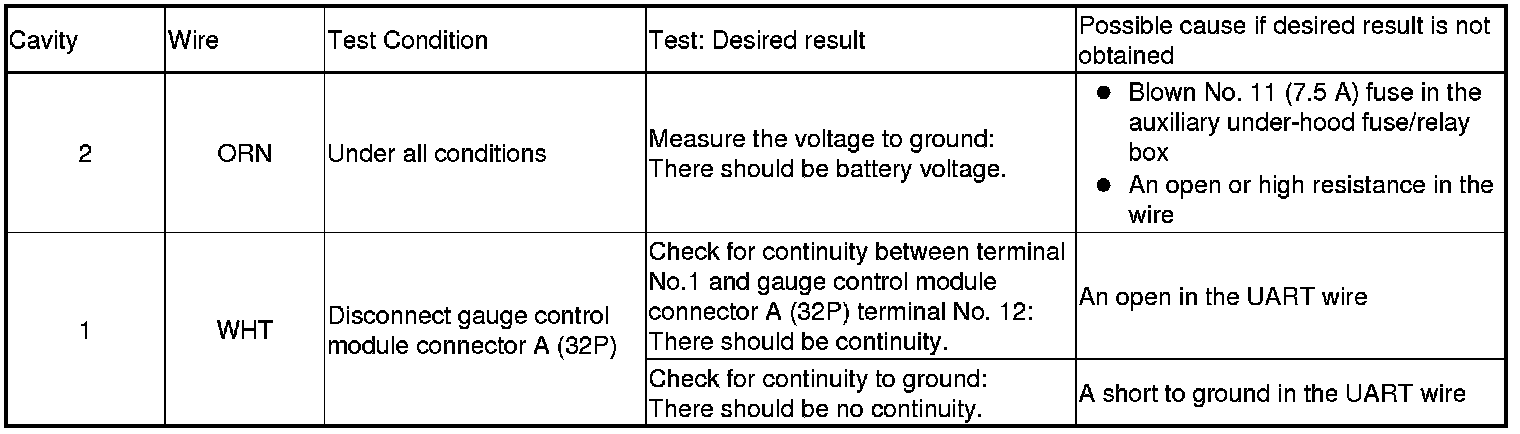

3. With the 2P connector still disconnected, do the following input tests.

- If any test indicates a problem, find and correct the cause, then recheck the system.
- If all the input tests prove OK, replace the battery sensor.
