Electric Load Sensor: Service and Repair

ELD Replacement

1. Remove the under-hood fuse/relay box Under-Hood Fuse/Relay Box Removal and Installation.

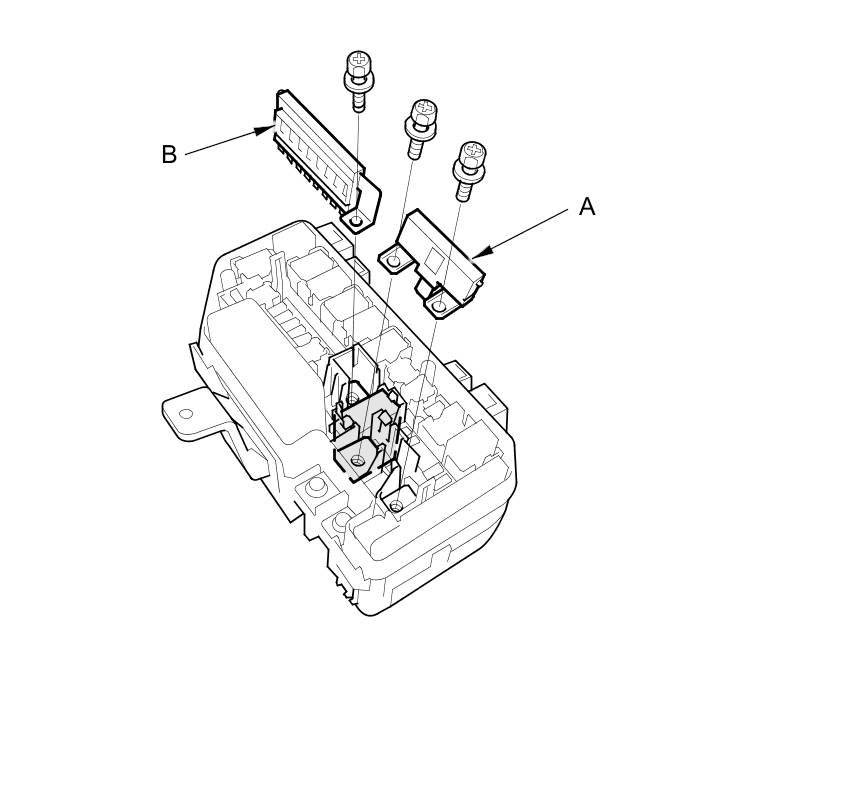

2. Remove the fuses (A and B).

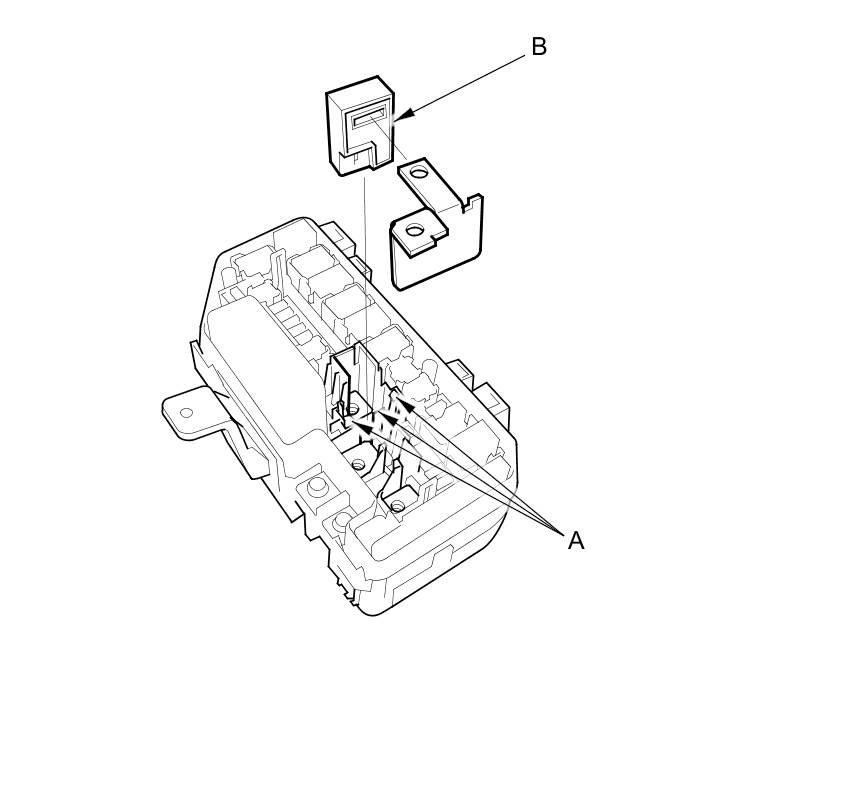

3. Release the three lock tabs (A), then remove the ELD (B).





4. Install the parts in the reverse order of removal.
