A/F Sensor Replacement

A/F Sensor Replacement

Special Tools Required

- O2 Sensor Socket Wrench Snap-on SWR2 or O2 Sensor Wrench Snap-on YA8875, commercially available

Front Bank (Bank 2)

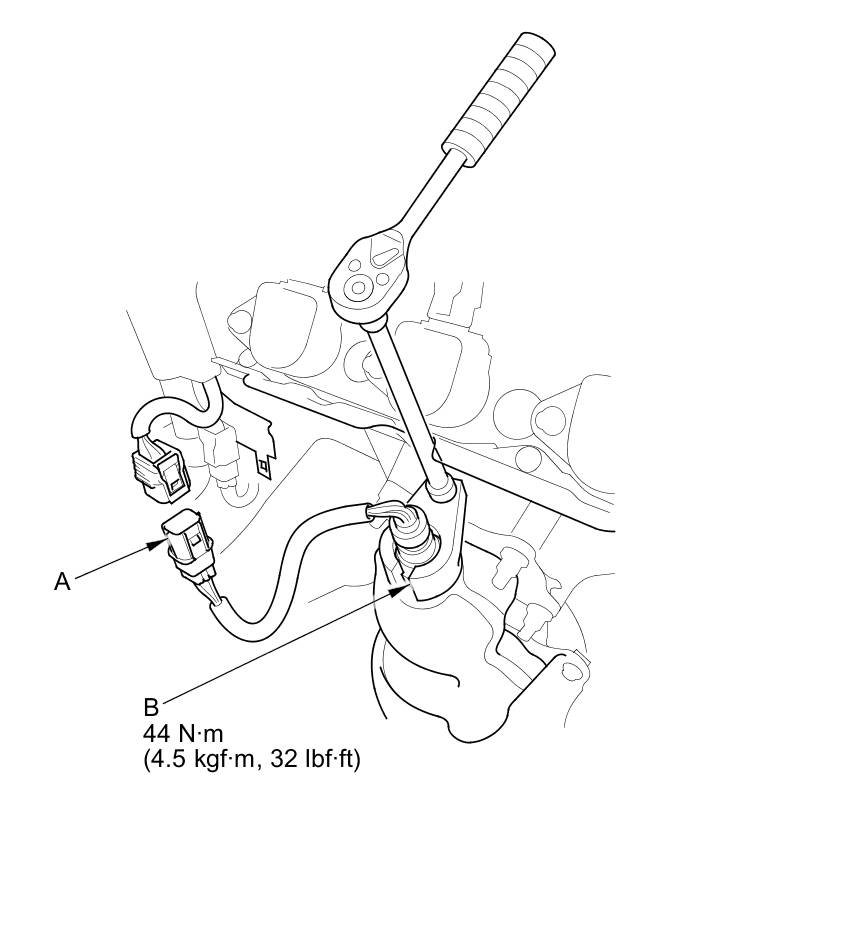

1. Disconnect the front A/F sensor 6P connector (A), then remove the A/F sensor (B).





2. Install the parts in the reverse order of removal.

Rear Bank (Bank 1)

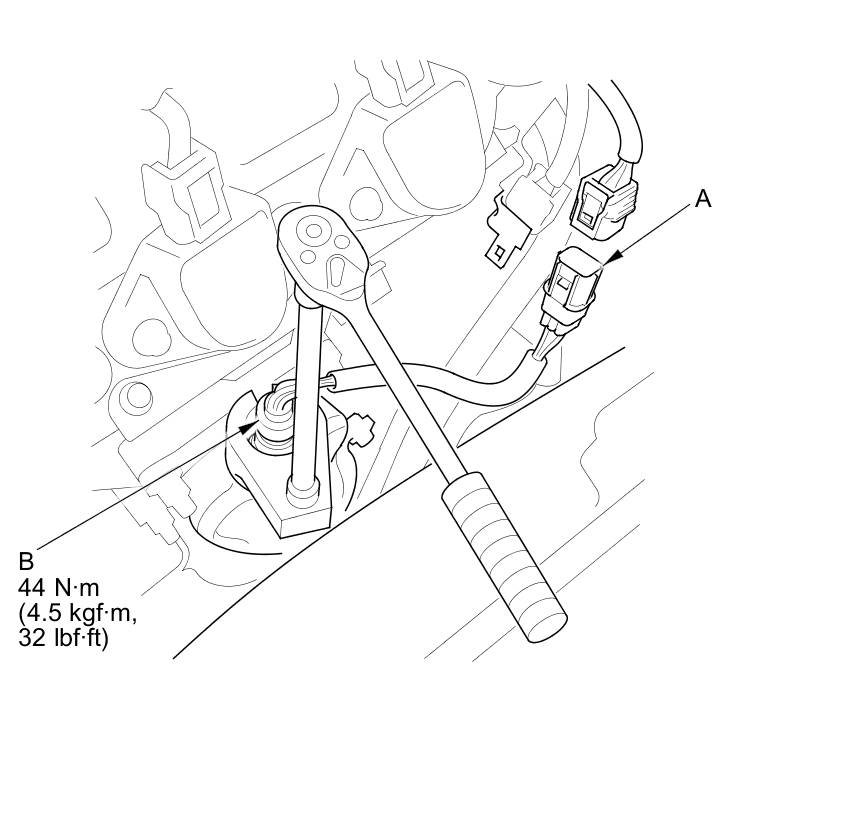

1. Disconnect the rear A/F sensor 6P connector (A), then remove the A/F sensor (B).





2. Install the parts in the reverse order of removal.
