Pinout Values and Diagnostic Parameters

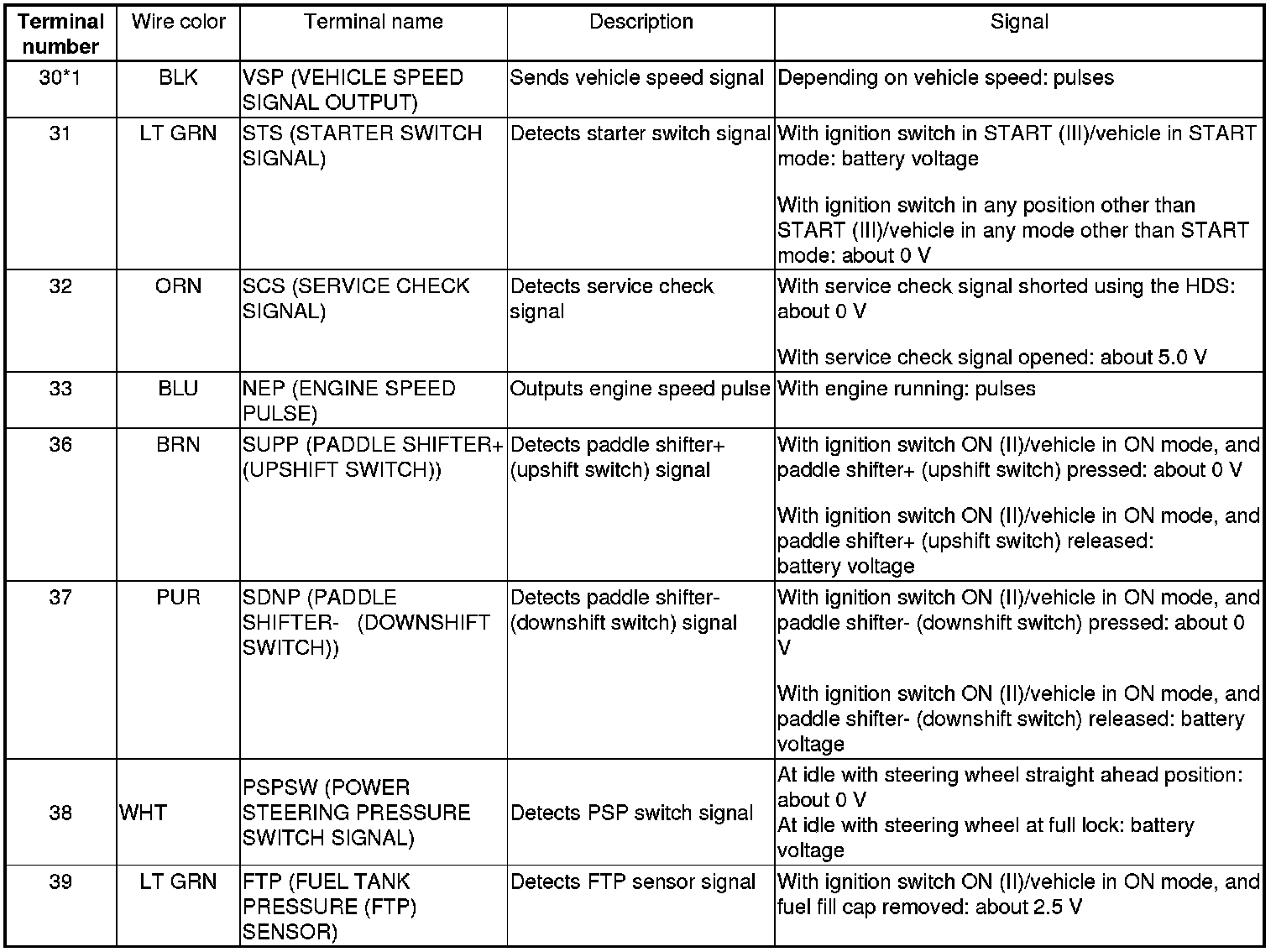

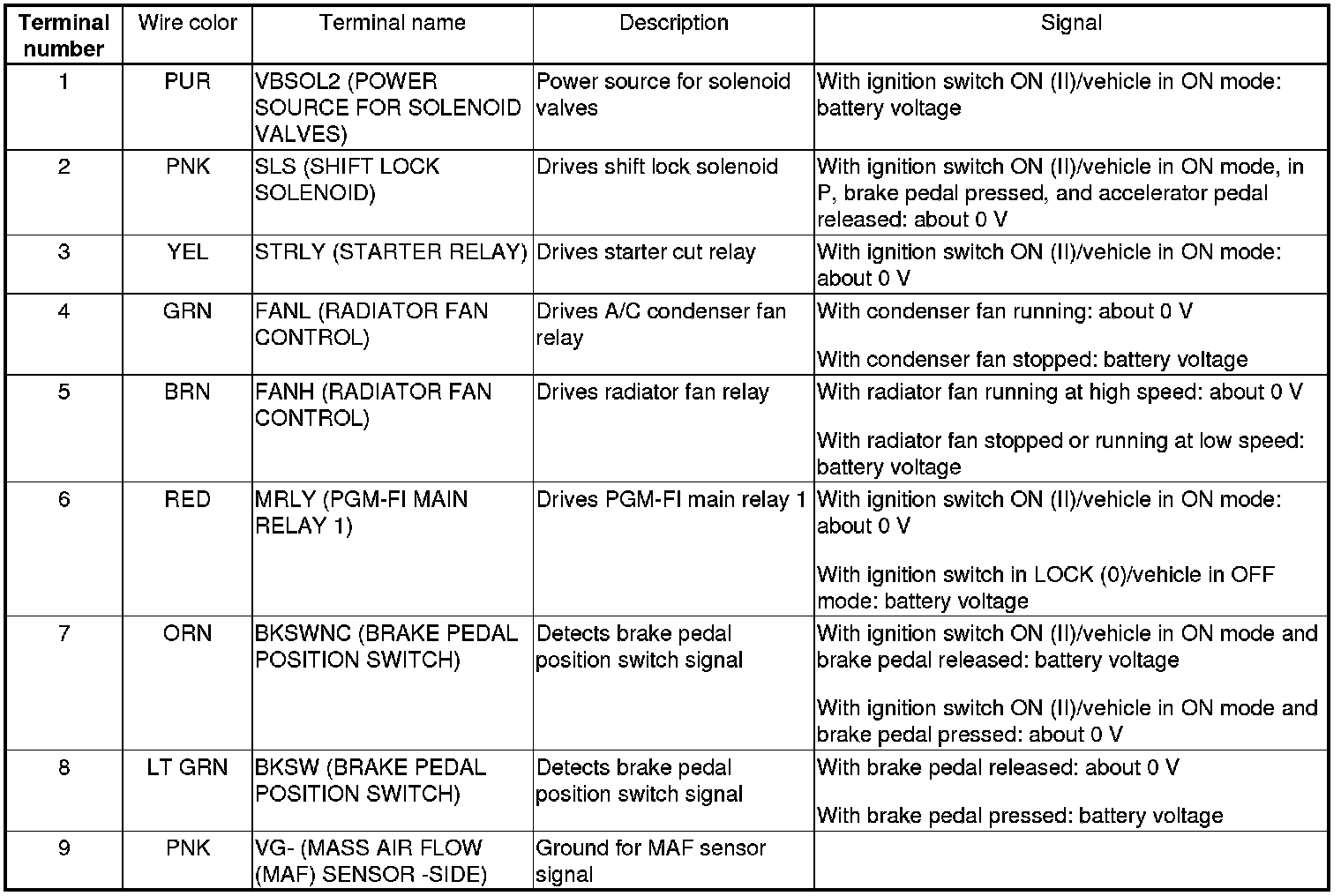

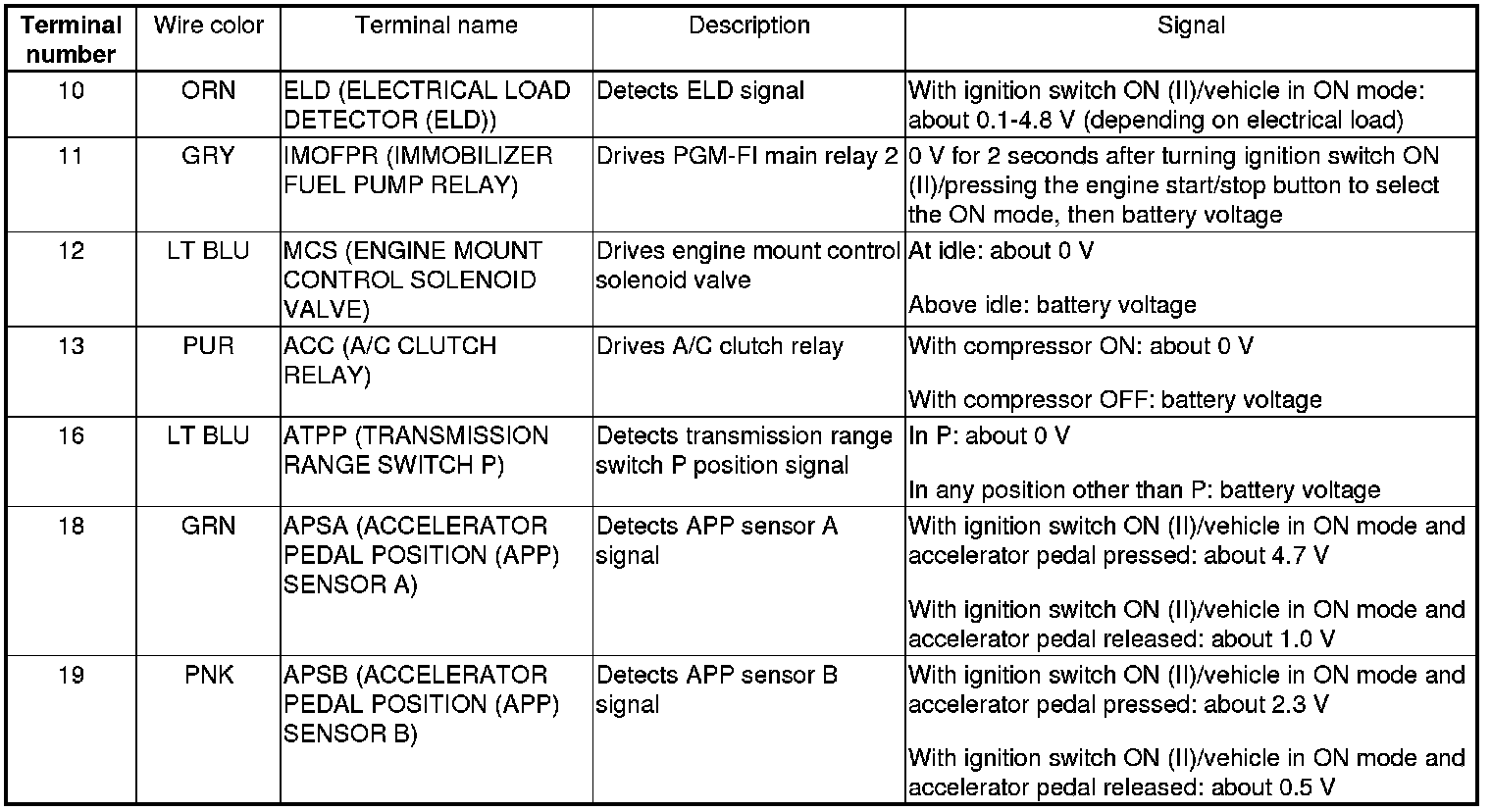

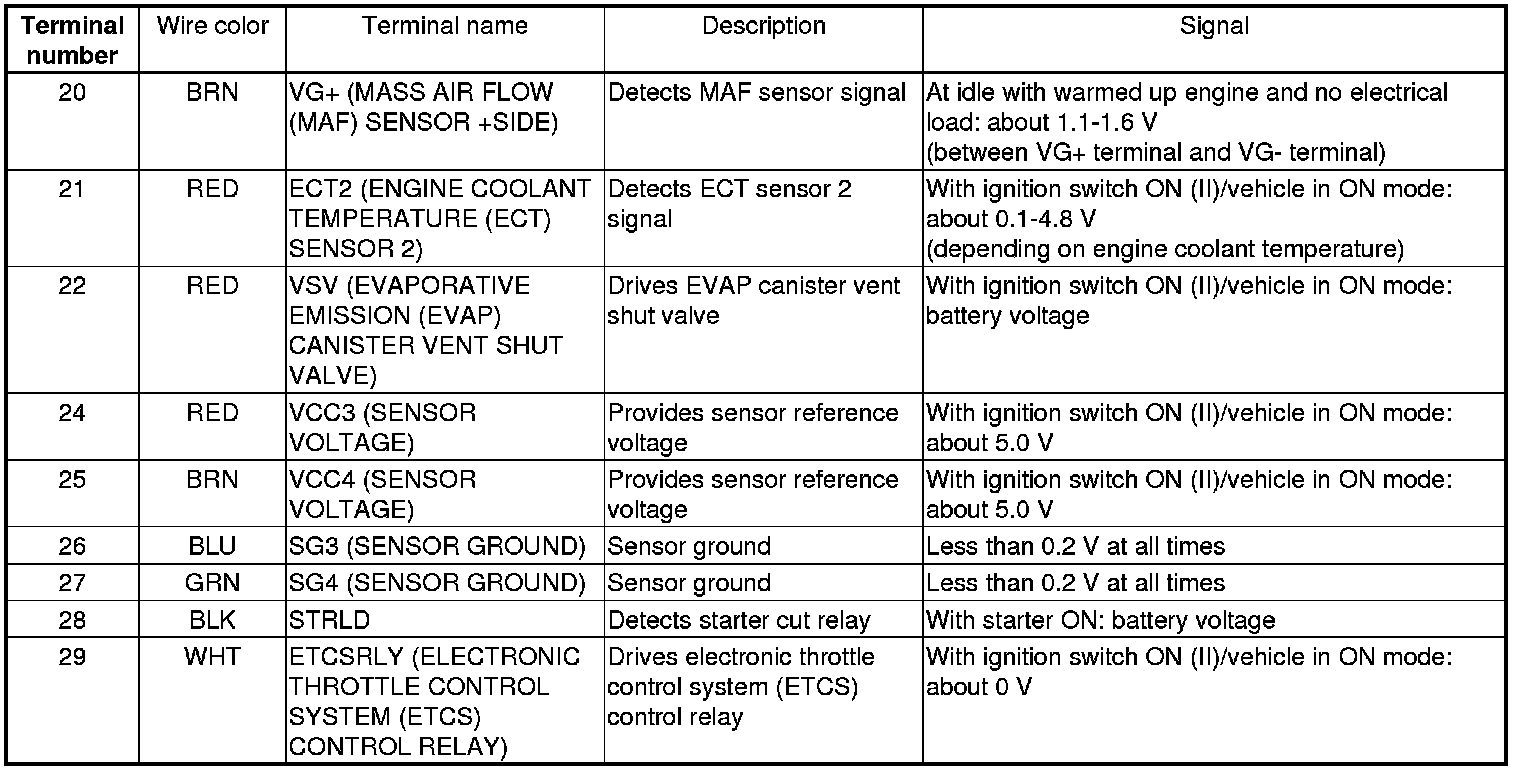

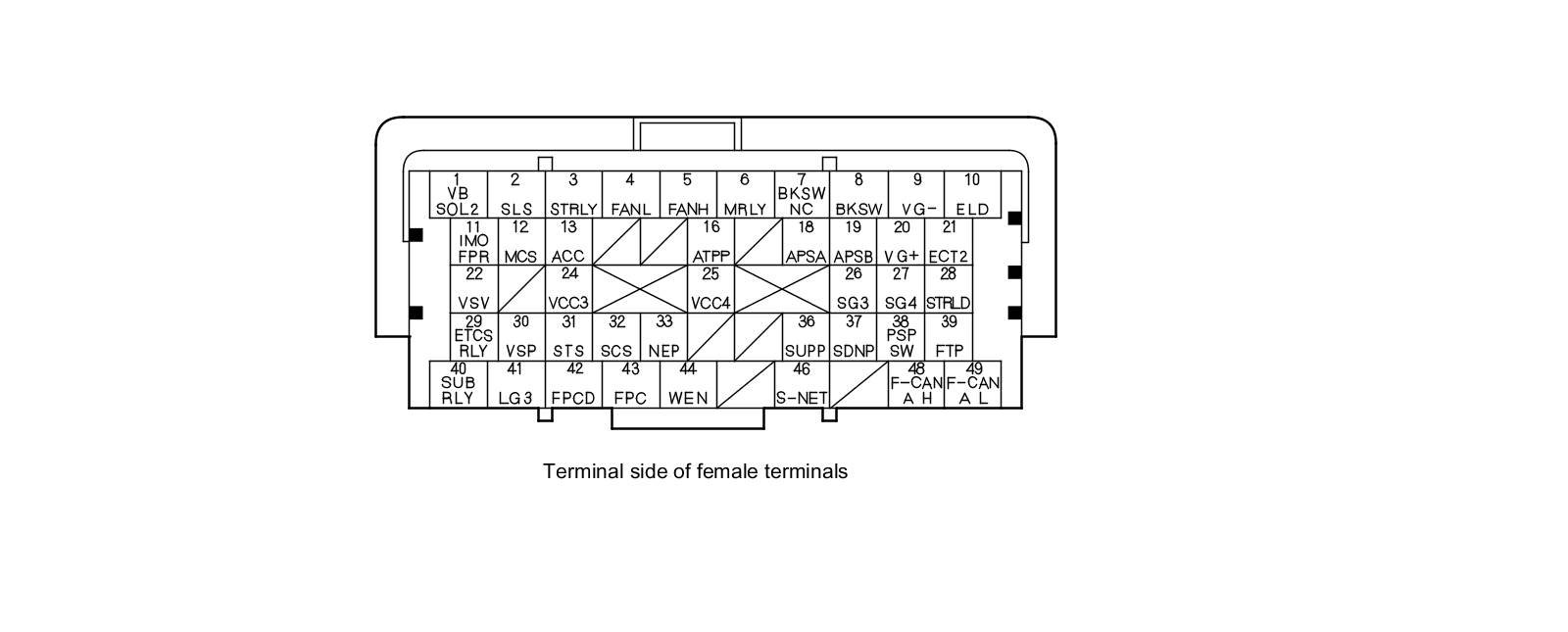

PCM Inputs and Outputs at PCM Connector A (square) (49P)










PCM Inputs and Outputs at PCM Connector A (square) (49P)










PCM Inputs and Outputs at PCM Connector A (square) (49P)










PCM Inputs and Outputs at PCM Connector A (square) (49P)









*1: With navigation

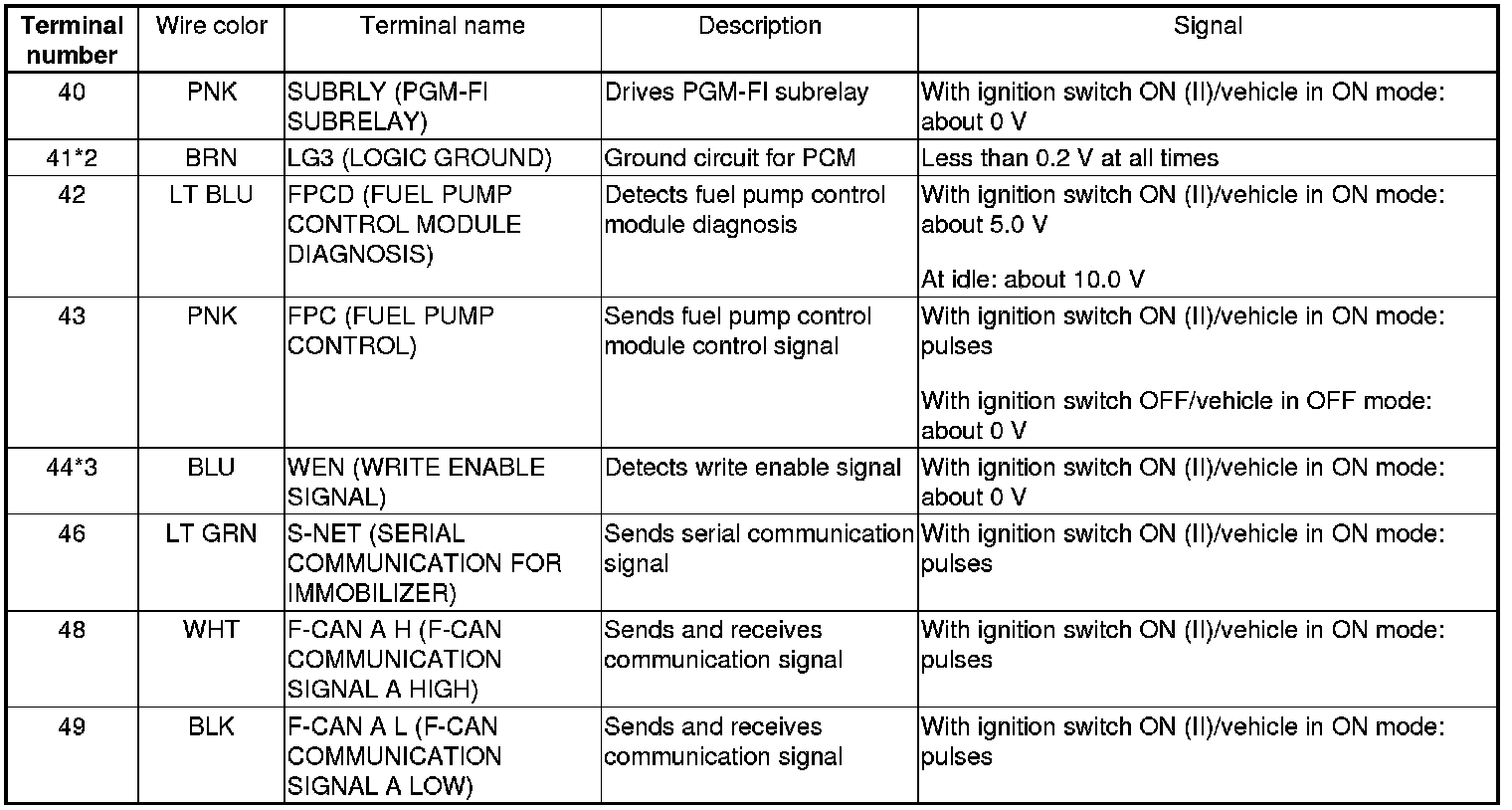

PCM Inputs and Outputs at PCM Connector A (square) (49P)









*2: Without keyless access

*3: '10-11 models

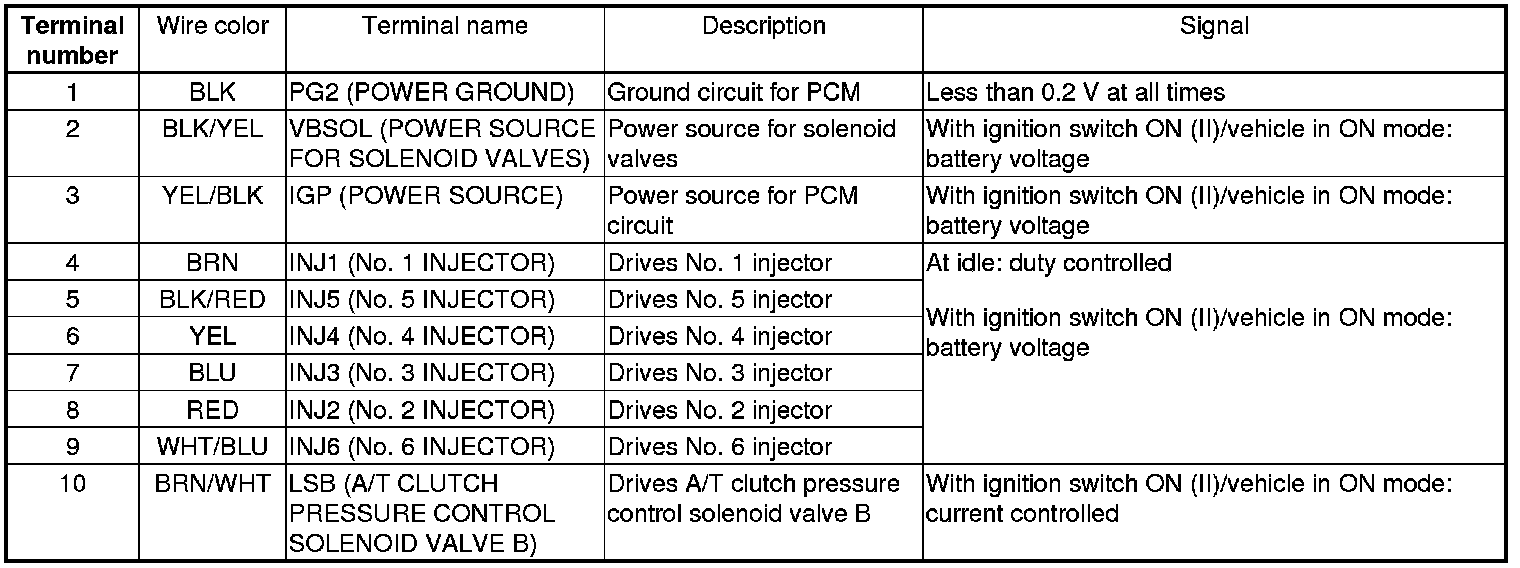

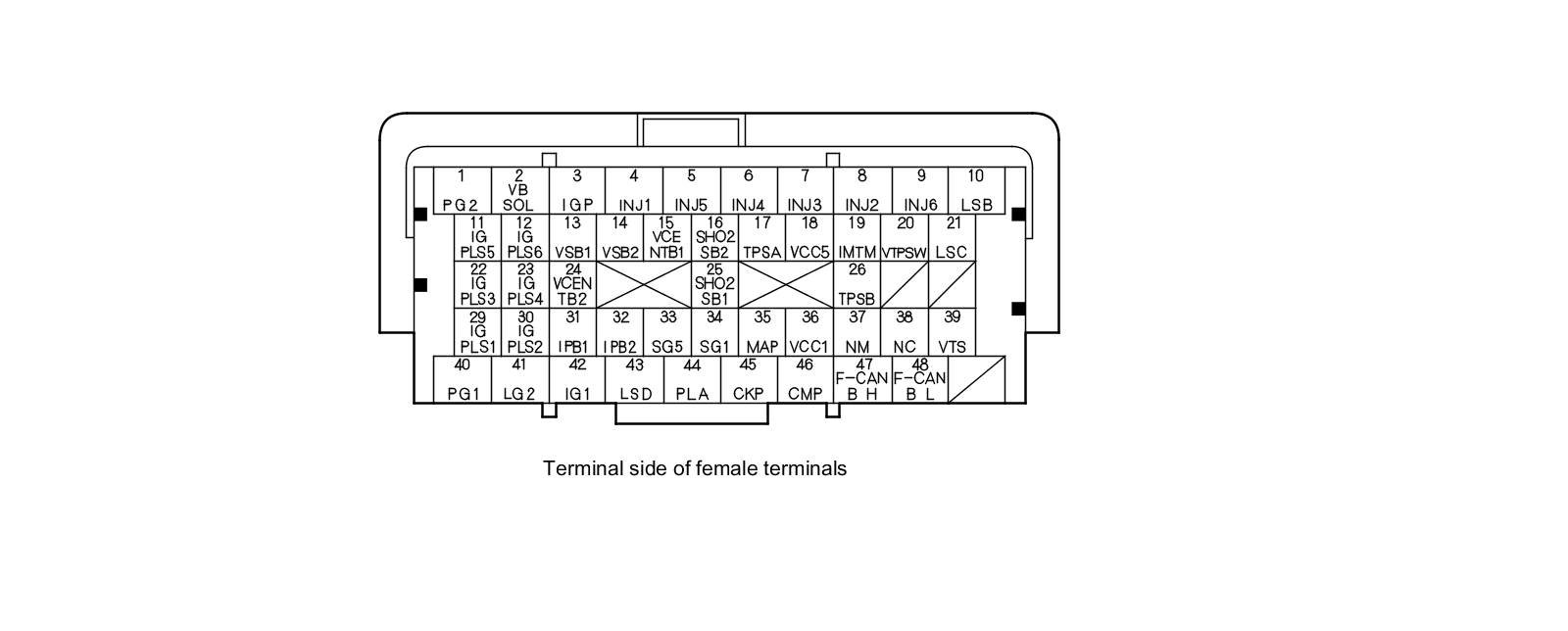

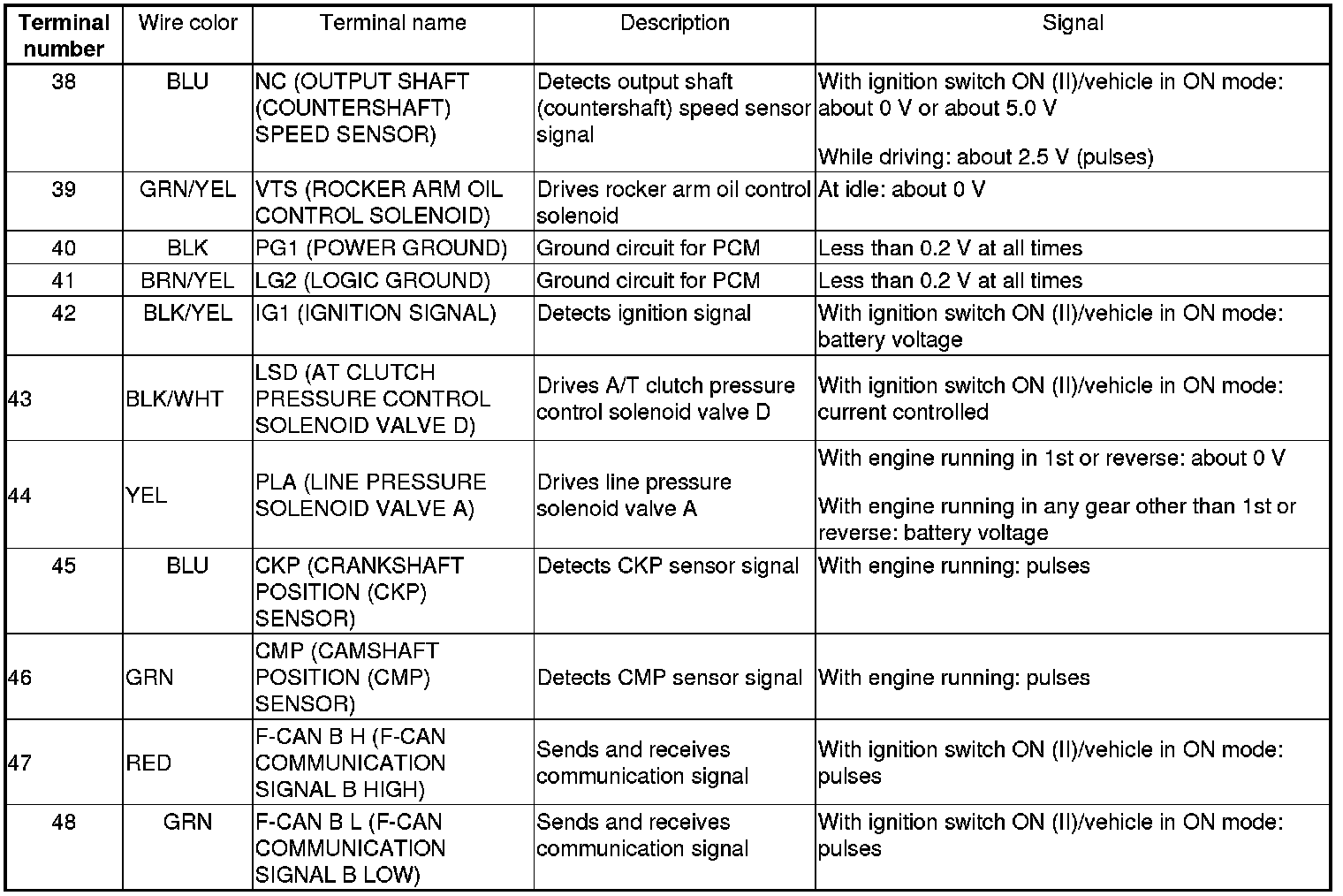

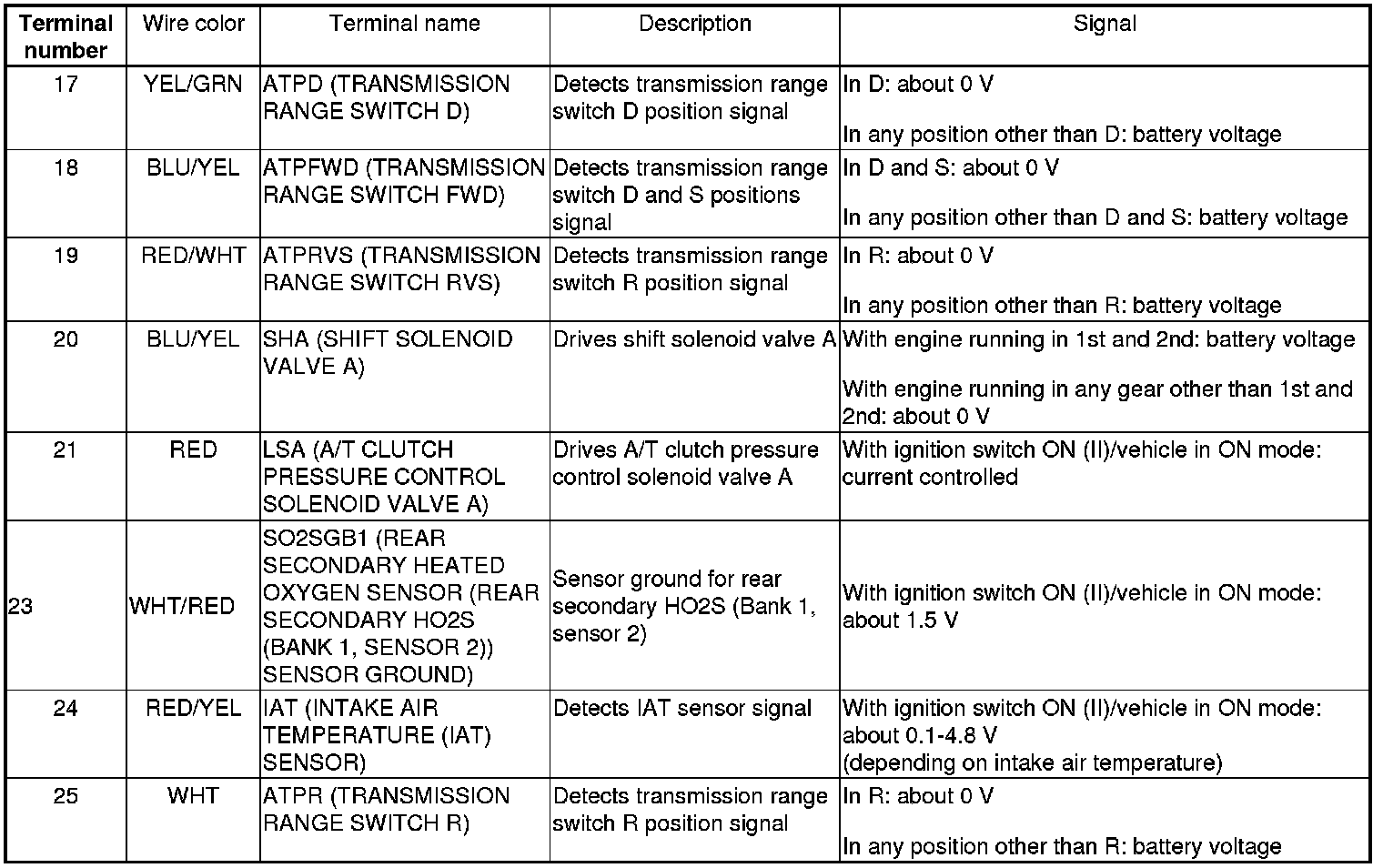

PCM Inputs and Outputs at PCM Connector B (triangle) (49P)










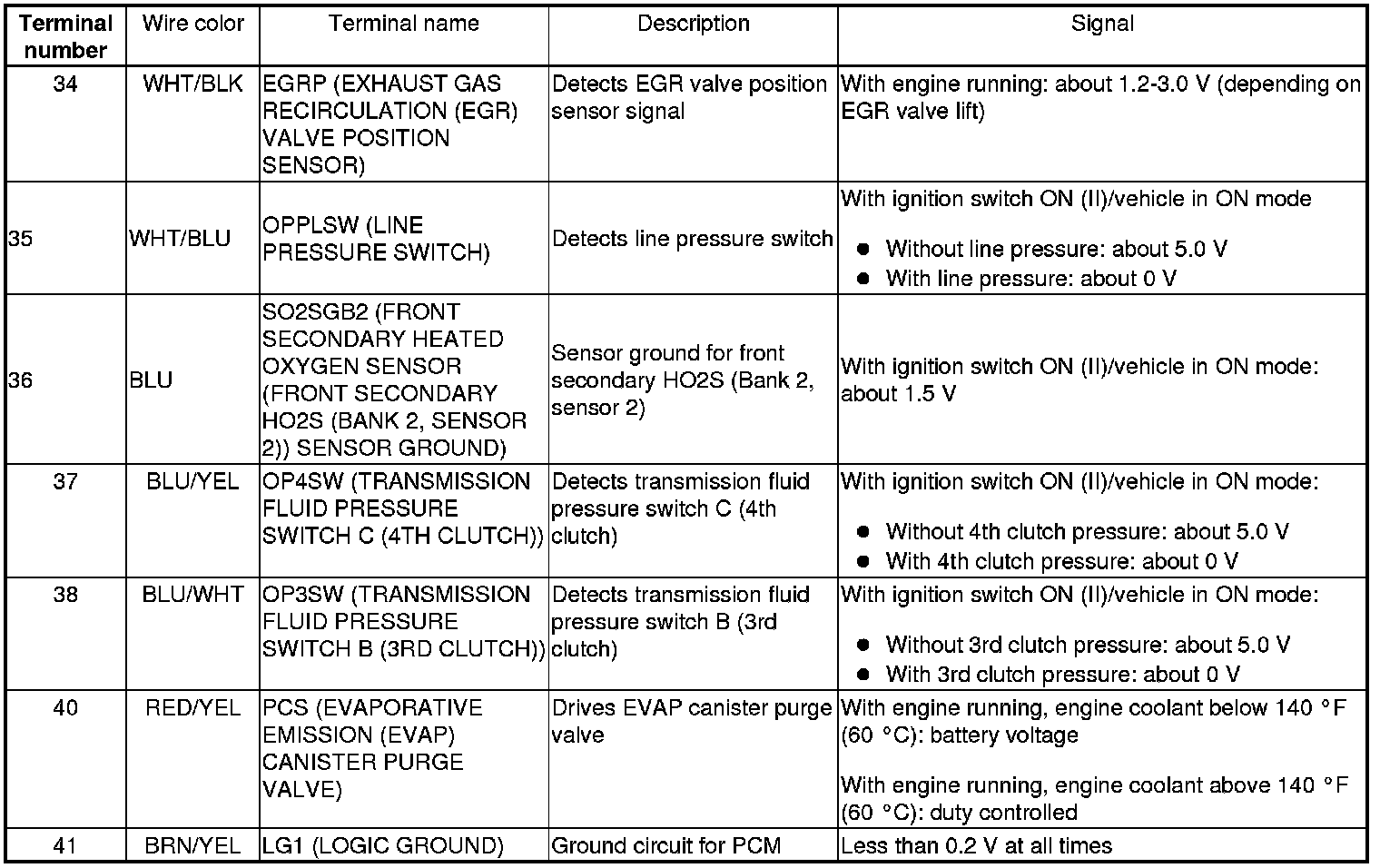

PCM Inputs and Outputs at PCM Connector B (triangle) (49P)










PCM Inputs and Outputs at PCM Connector B (triangle) (49P)










PCM Inputs and Outputs at PCM Connector B (triangle) (49P)










PCM Inputs and Outputs at PCM Connector B (triangle) (49P)

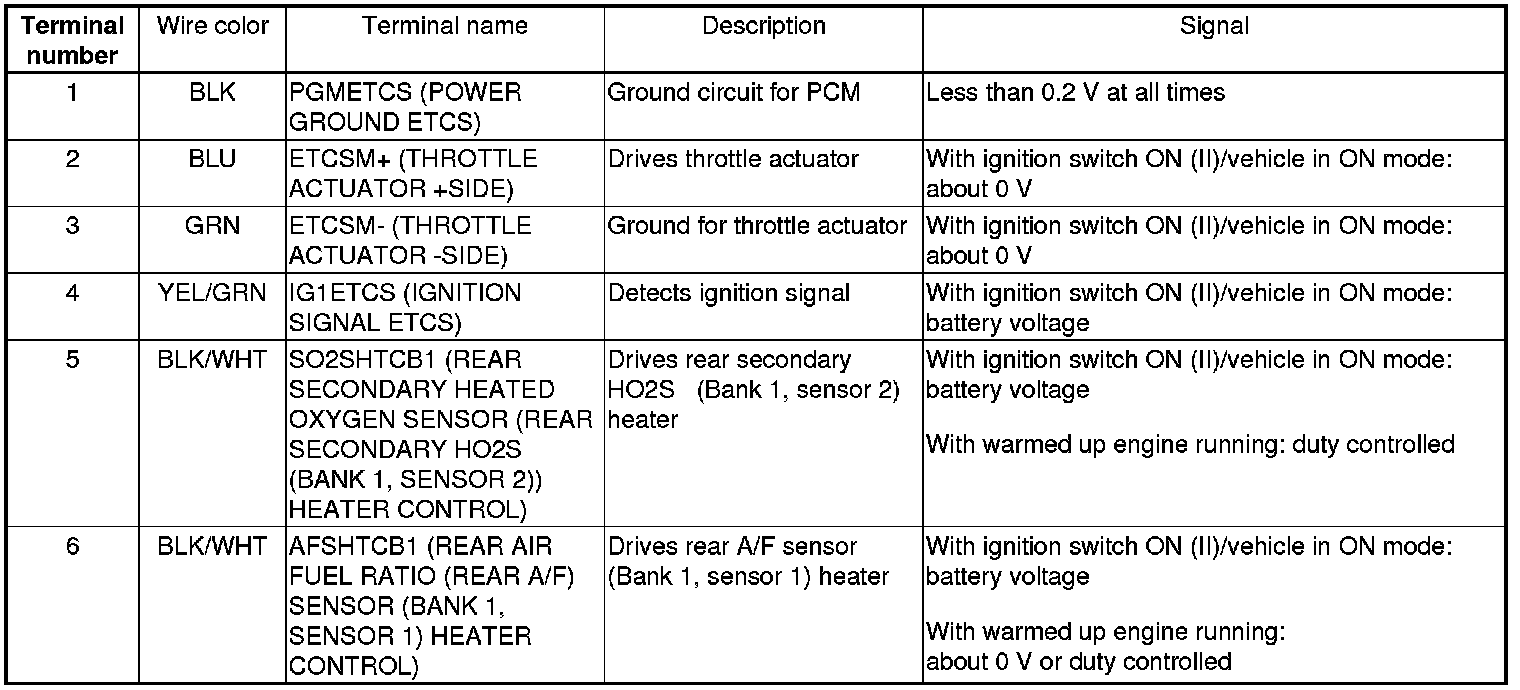

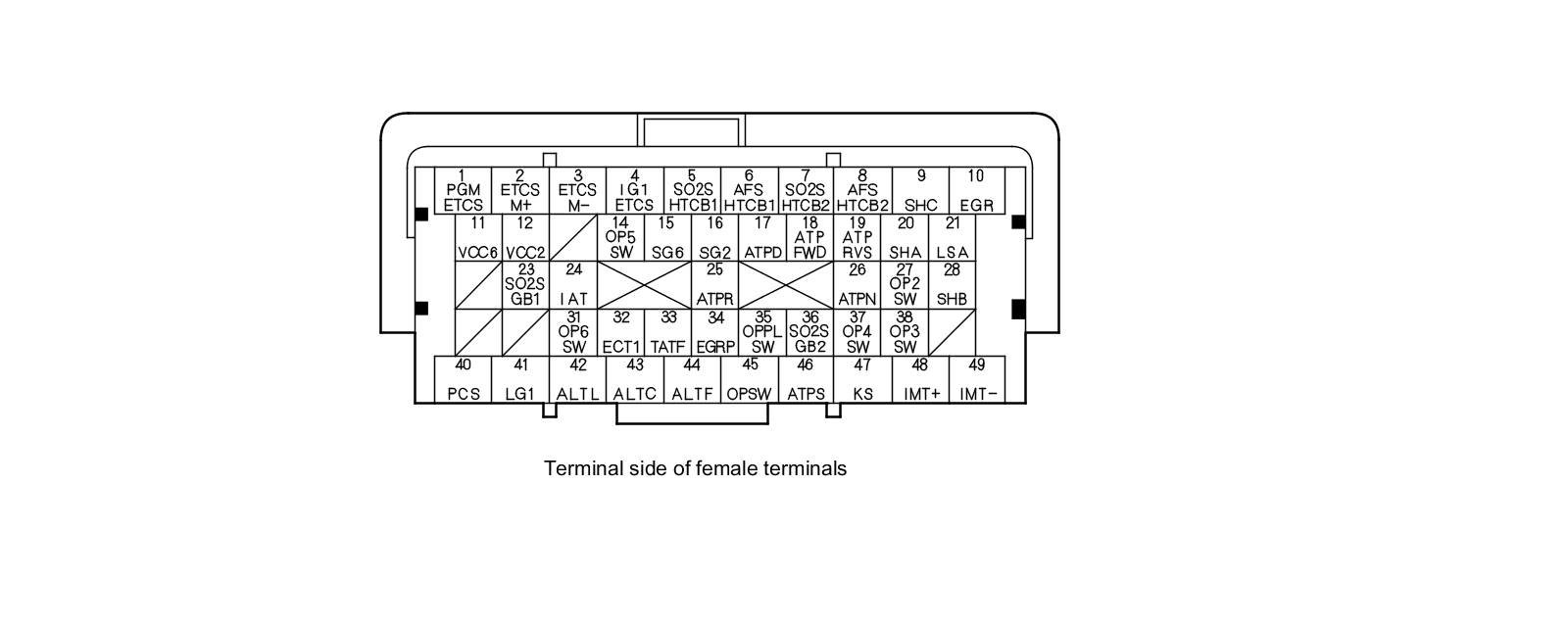

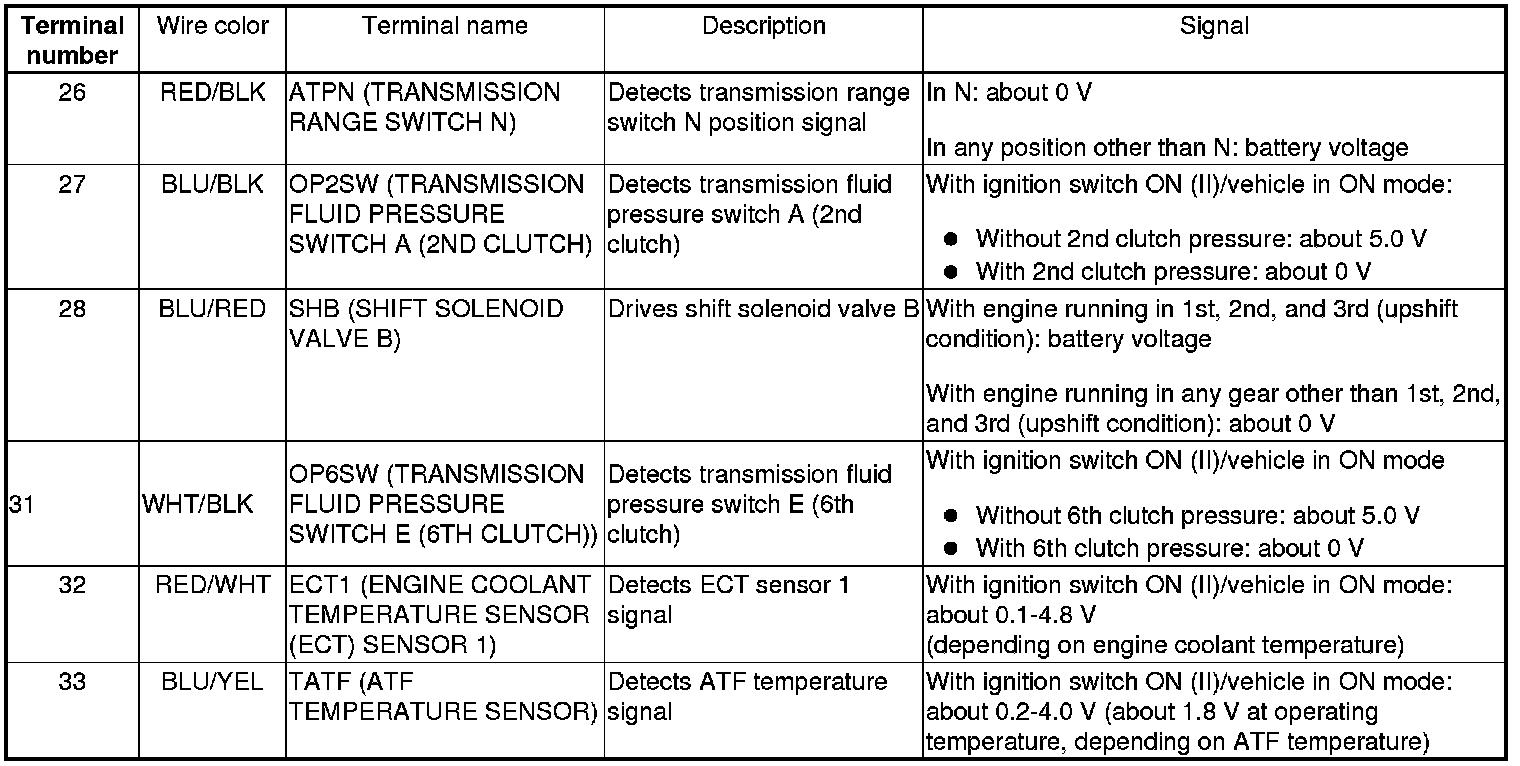

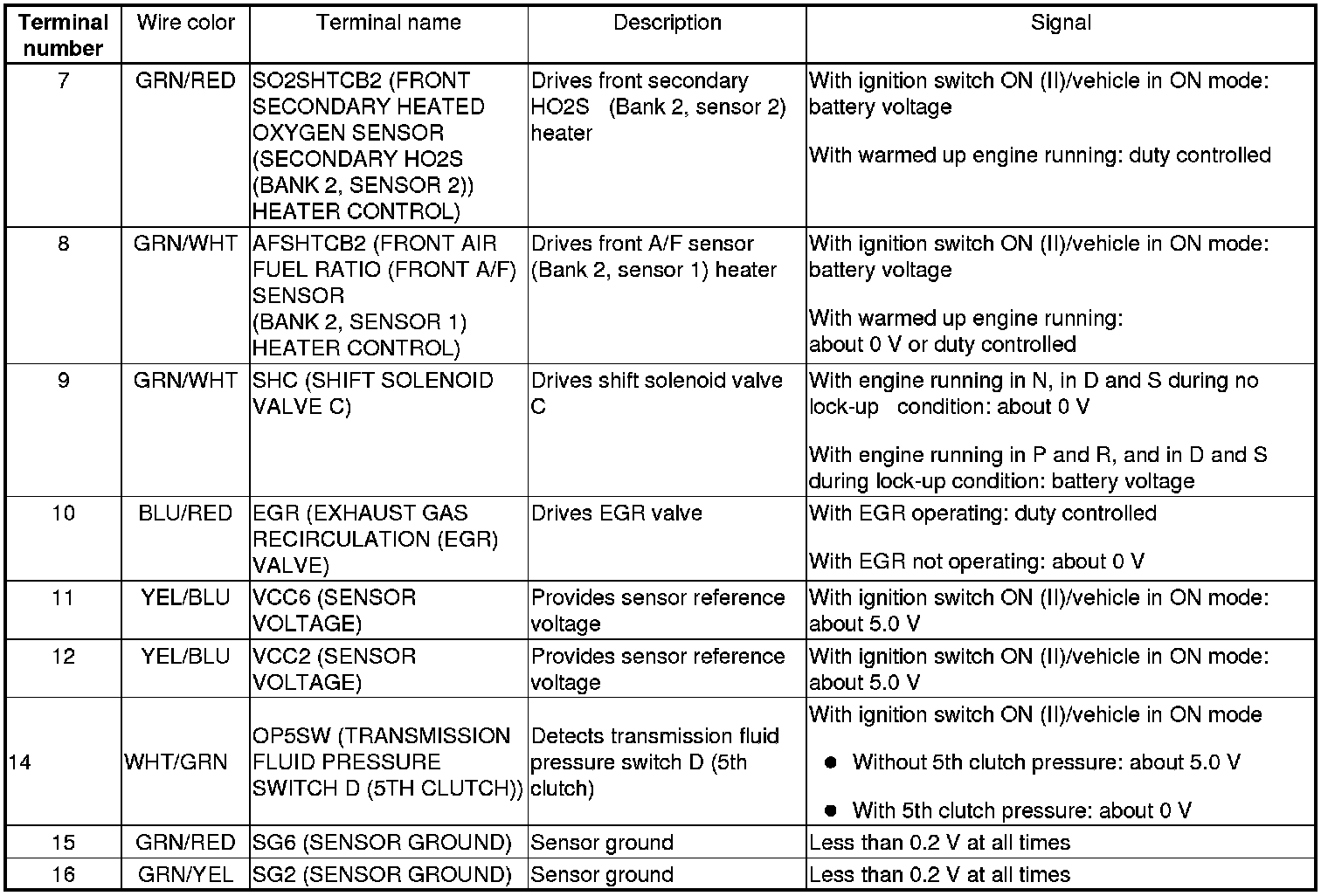

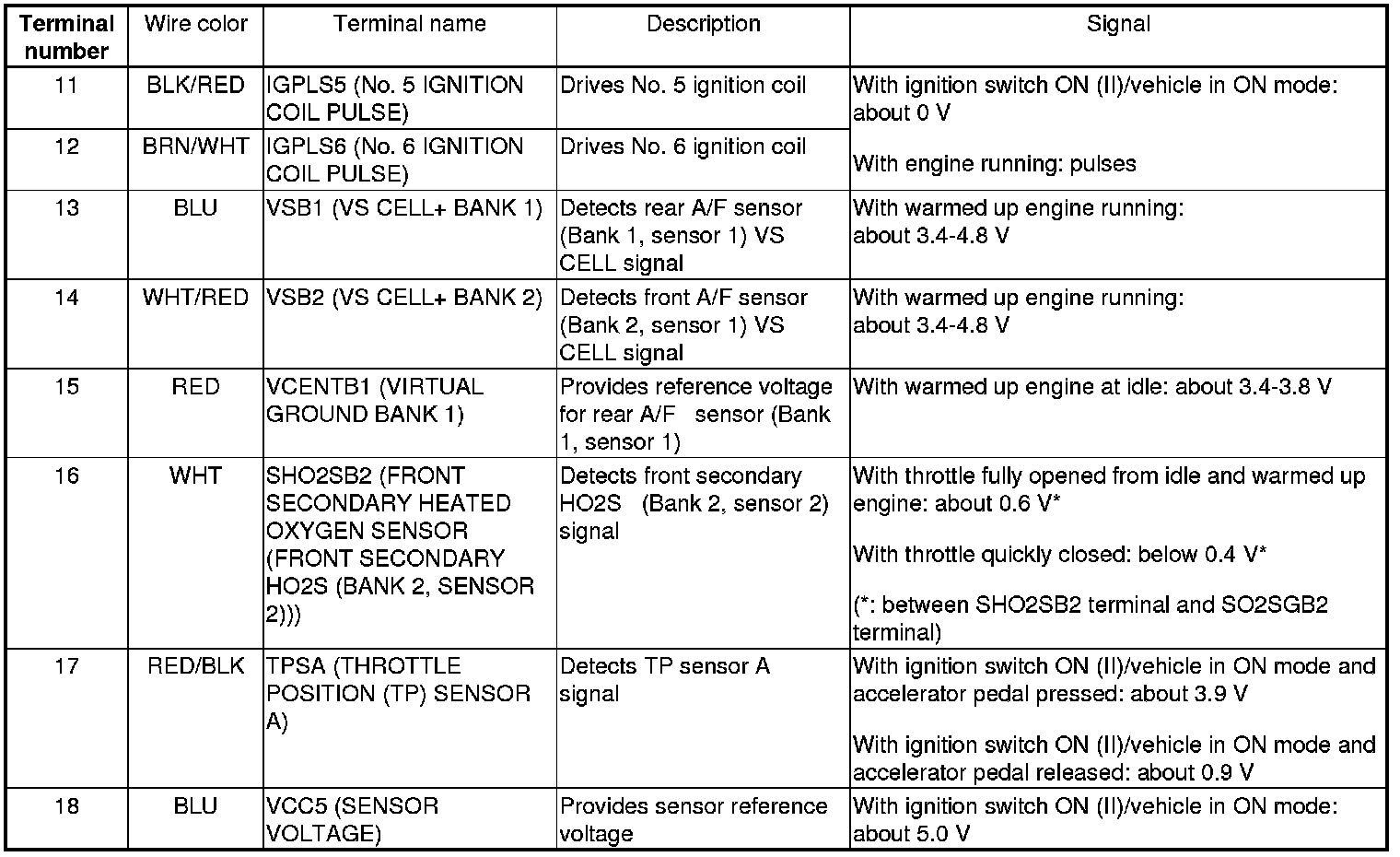

PCM Inputs and Outputs at PCM Connector C (circle) (49P)










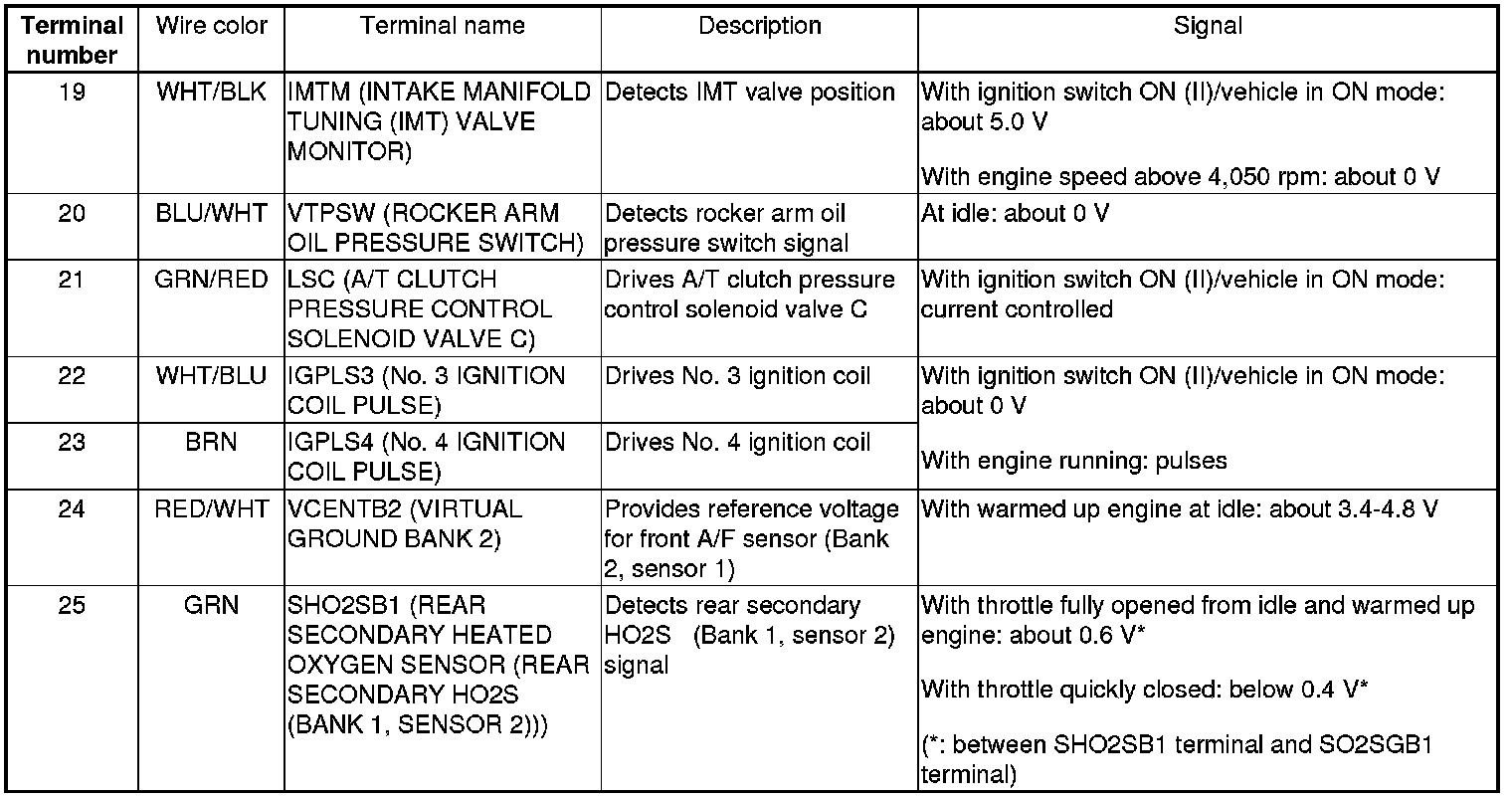

PCM Inputs and Outputs at PCM Connector C (circle) (49P)










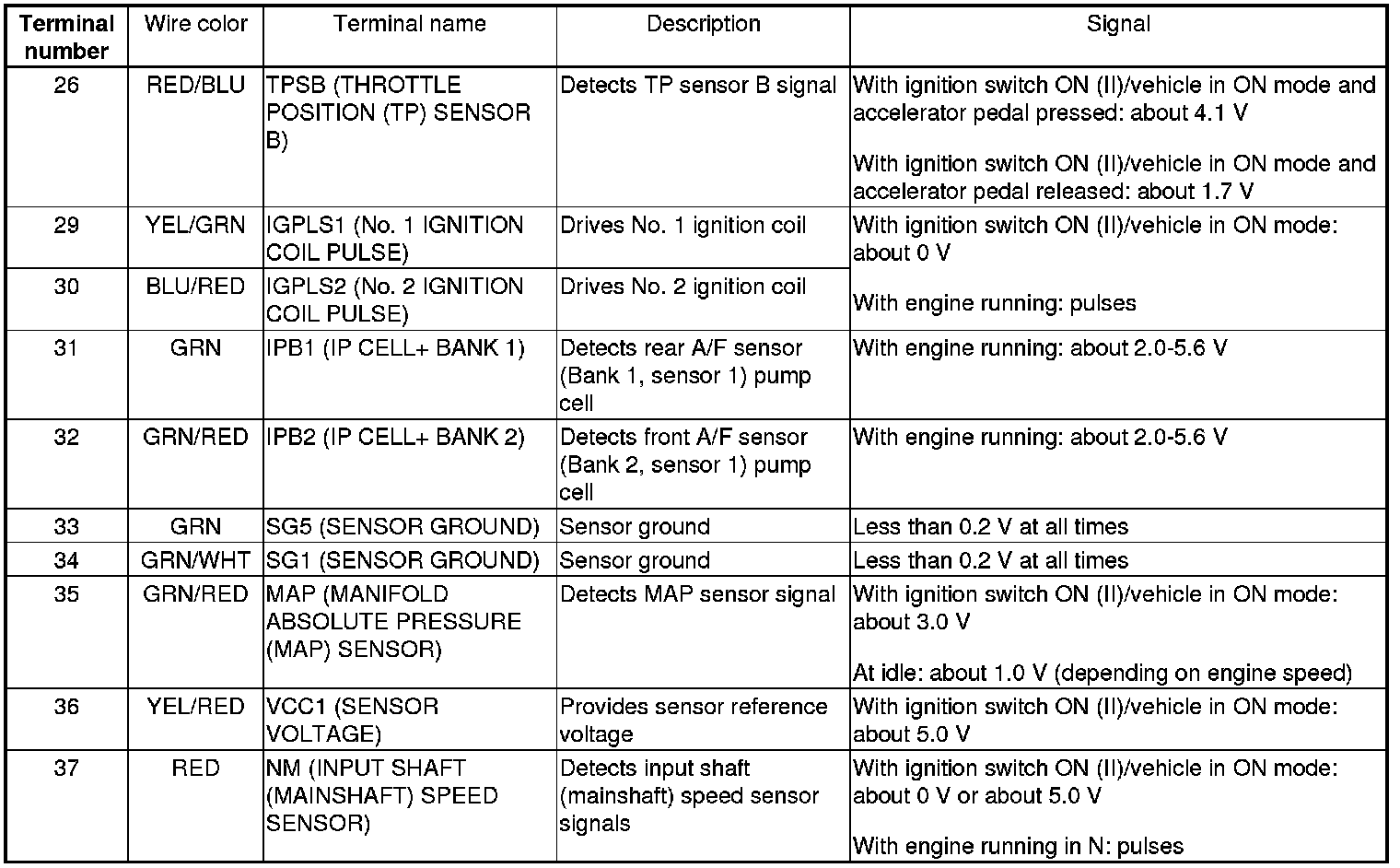

PCM Inputs and Outputs at PCM Connector C (circle) (49P)










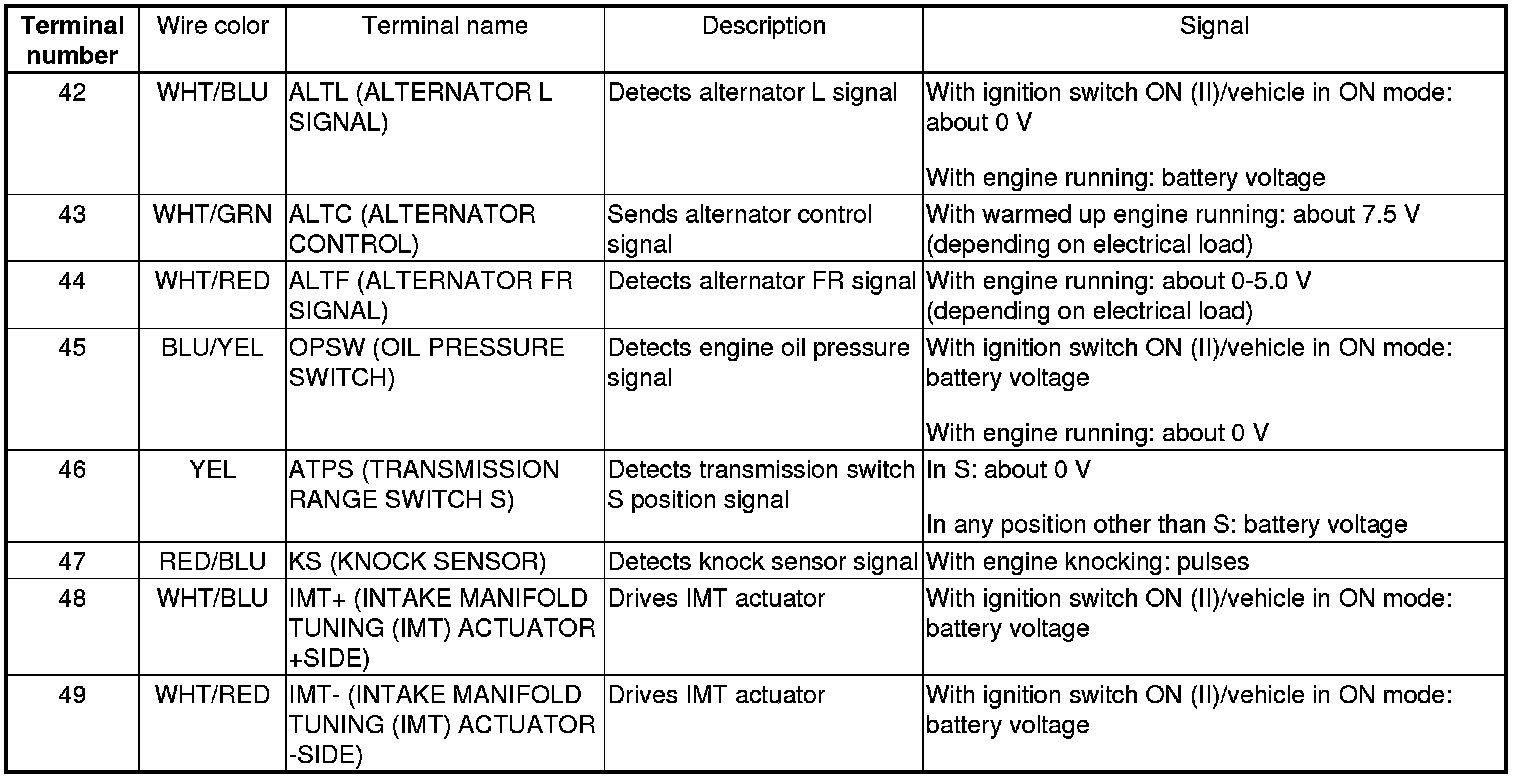

PCM Inputs and Outputs at PCM Connector C (circle) (49P)










PCM Inputs and Outputs at PCM Connector C (circle) (49P)










PCM Inputs and Outputs at PCM Connector C (circle) (49P)
