DTC B12F2: Power Control Unit Lost Communication With Keyless Access Control Unit
- Make sure the remote is not in the remote slot.
- Clear the DTCs with the HDS.
- Do this procedure 10 times: Press the engine start/stop button to select the OFF, ACC, ON, and OFF mode.
- Check for DTCs with the HDS.
Is DTC B12F2 indicated?
YES -Go to step 5.
NO -Intermittent failure, the system is OK at this time. Check for loose or poor connections.
- Select ONE-PUSH START from the SYSTEM SELECTION MENU with the HDS.
- Select the KEYLESS ACCESS CONTROL UNIT and check for DTCs with the HDS.
Are any DTCs indicated?
YES -Go to the indicated DTCS TROUBLESHOOTING .
NO -Go to step 7.
- Press the engine start/stop button to select the OFF mode.
- Disconnect these items:
- Power control unit connector C (36P)
- Remote slot control unit 40P connector
- Electric steering lock 12P connector
- Keyless access control unit connector B (32P)

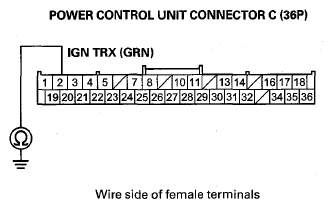

- Check for continuity between body ground and power control unit connector C (36P) terminal No. 2.Fig 1: Checking For Continuity Between Body Ground And Power Control Unit Connector C (36P) Terminal No. 2
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Is there continuity?
YES -Repair a short to ground in the wire.
NO -Go to step 10.

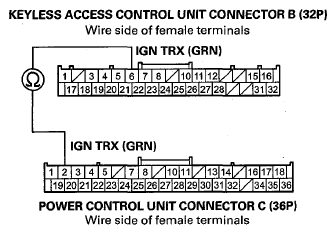

- Check for continuity between keyless access control unit connector B (32P) terminal No. 6 and power control unit connector C (36P) terminal No. 2.Fig 2: Checking For Continuity Between Keyless Access Control Unit Connector B (32P) Terminal No. 6 And Power Control Unit Connector C (36P) Terminal No. 2
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Is there continuity?
YES -Go to step 11.
NO -Repair an open or high resistance in the wire.
- Reconnect these items:
- Electric steering lock 12P connector
- Power control unit connector C (36P)
- Remote slot control unit 40P connector
- Keyless access control unit connector B (32P)
- Do the battery terminal disconnect procedure (see BATTERY TERMINAL DISCONNECTION AND RECONNECTION ).
- Wait for at least 10 seconds to clear the DTCs.
- Do the battery terminal reconnection procedure (see BATTERY TERMINAL DISCONNECTION AND RECONNECTION ).
- Turn the keyless access system mode switch ON.
- If necessary, remove the remote from the remote slot.
- Press the engine start/stop button to select the ON mode, then select the OFF mode.
- Insert the remote into the remote slot.
- Press and hold the engine start/stop button to select the ON mode.
Does the mode change to ON?
YES -Go to step 20.
NO -Go to step 23.
- Clear the DTCs with the HDS.
- Press the engine start/stop button to select the OFF.
- Check for DTCs with the HDS.
Is DTC B12F2 indicated?
YES -Replace the keyless access control unit (see KEYLESS ACCESS CONTROL UNIT ).
NO -Intermittent failure, the system is OK at this time. Check for loose or poor connections.
- Connect the HDS to the data link connector (DLC).
- Select COMMUNICATION STATUS in the INSPECTION MENU with the HDS.
- Check the value of STATUS with ESL, STATUS with KEYLESS ACCESS CONTROL UNIT, and STATUS with SLOT with the HDS.
HDS Description Value Status with ESL MTR CUT1 (Cont) Status 1 MTR CUT2 (IG) Status 1 IG1 Input State of ESL 1 MTRCONT Status of ESL 1 ESL Motor Status 1 Switch D detection for Unlock Status 1 Switch C detection for Unlock Status 1 Switch B detection for Unlock Status 1 Status with KEYLESS ACCESS CONTROL UNIT FOR KEY Authentication Result 1 Status with SLOT FOR KEY Authentication Result 1 Is the KEYLESS ACCESS CONTROL UNIT 1 value the only one indicated?
YES -Replace the keyless access control unit (see KEYLESS ACCESS CONTROL UNIT ).
NO -Replace the power control unit (see CONTROL UNIT INPUT TEST ).
