RF Unit 2 Replacement

  1. Fold forward the rear seat-back (see REAR SEAT REMOVAL/INSTALLATION ).
  2. Lift the front edge of the seat flap assembly (see REAR SEAT REMOVAL/INSTALLATION ).
  3. Disconnect the 3P connector (A) from RF unit 2 (B).

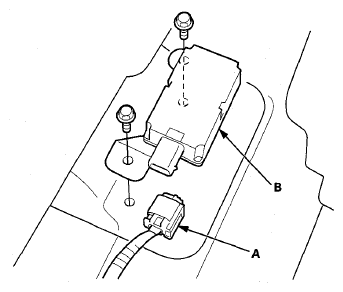

    Fig 1: Locating 3P Connector And RF Unit 2
    G08076721Courtesy of AMERICAN HONDA MOTOR CO., INC.
  4. Remove the two bolts, then remove RF unit 2.
  5. Install the unit in the reverse order of removal.
