Tailgate Lock Switch Test/Replacement

Open the tailgate and remove the tailgate lower trim panel (see TRIM REMOVAL/INSTALLATION - TAILGATE AREA ).
Remove the rear license trim (see REAR LICENSE TRIM REPLACEMENT ).
Disconnect the tailgate lock switch 2P connector (A).

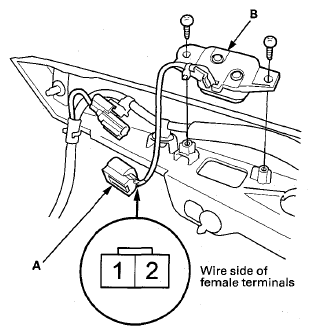

Fig 1: Identifying Tailgate Lock Switch 2P Connector Terminal And Tailgate Lock Switch
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Remove the two screws and tailgate lock switch (B).
Check for continuity between the terminals in each switch position according to the table.

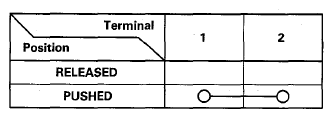

Fig 2: Tailgate Lock Switch Terminals Continuity Chart
Courtesy of AMERICAN HONDA MOTOR CO., INC.
If the continuity is not as specified, replace the switch. If the continuity is as specified, go to step 7.
Check for continuity between rearview camera 16P connector terminals No. 7 and No. 8, and tailgate lock switch 2P connector terminal No. 1 and No. 2.

Fig 3: Checking For Continuity Between Rearview Camera 16P Connector Terminals No. 7 And No. 8, And Tailgate Lock Switch 2P Connector Terminal No. 1 And No. 2
Courtesy of AMERICAN HONDA MOTOR CO., INC.
If there is no continuity, replace the rearview camera (see REARVIEW CAMERA REMOVAL/INSTALLATION ).
Install the switch in the reverse order of removal.
