Power Tilt/Telescopic Steering Motor Test
- Remove the steering column covers (see
COLUMN COVER REMOVAL/INSTALLATION
).

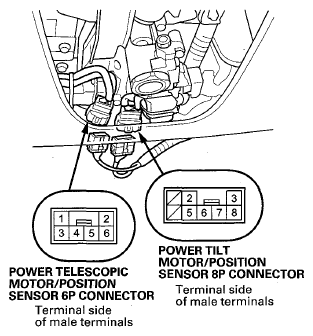

- Disconnect the 6P connector and 8P connector from the power tilt/telescopic steering motors.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
- Check each motor by connecting power and ground according to the table. When the motor stops running, disconnect battery power immediately.
POWER TILT MOTOR
| Terminal |
2 |
3 |
| Position |
| TILT UP |
(-) |
(+) |
| TILT DOWN |
(+) |
(-) |
POWER TELESCOPIC MOTOR
| Terminal |
1 |
2 |
| Position |
| TELESCOPIC IN |
(-) |
(+) |
| TELESCOPIC OUT |
(+) |
(-) |
- If the motor does not run or fails to run smoothly; replace the steering column assembly (see
STEERING COLUMN REMOVAL AND INSTALLATION
).
