Power Window Master Switch Input Test

NOTE: Before testing, troubleshoot the multiplex integrated control unit first, using B-CAN System Diagnosis Test Mode A (see TROUBLESHOOTING - B-CAN SYSTEM DIAGNOSIS TEST MODE A ).
  1. Turn the ignition switch to LOCK (0), or press the engine start/stop button to select the OFF mode.
  2. Open and close the driver's door, then open the door and remove the driver's door panel (see FRONT DOOR PANEL REMOVAL/INSTALLATION ).
  3. Disconnect the power window master switch 37P connector (A) from the power window master switch (B).

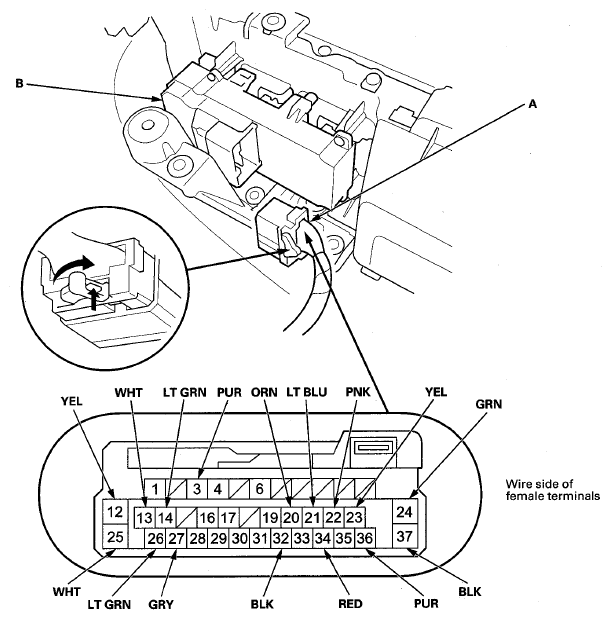

    Fig 1: Identifying Power Window Master Switch 37P Connector And Power Window Master Switch
    G08076875Courtesy of AMERICAN HONDA MOTOR CO., INC.
  4. Inspect the connector and socket terminals to be sure they are all making good contact.
    • If the terminals are bent, loose or corroded, repair them as necessary, and recheck the system.
    • If the terminals look OK, go to step 5.
  5. Reconnect the driver's door harness to driver's door subharness.
  6. With the power window master switch 37P connector still disconnected from the power window master switch, do the following input tests:
    • If any test indicates a problem, find and correct the cause, then recheck the system.
    • If all the input tests prove OK, go to step 7.
      Cavity Wire Test condition Test: Desired result Possible cause if desired result is not obtained
      12 YEL Connect terminals No. 25 and No. 24 (or No. 12), and terminals No. 12 (or No. 24) and No. 37 with jumper wires Check driver's power window motor operation: The driver's power window should open (or close).
      • Faulty driver's power window motor
      • An open or high resistance in the wire
      24 GRN
      23 YEL Turn the ignition switch ON (II) or power mode ON, connect terminals No. 25 and No. 36 (or No. 23), and terminals No. 23 (or No. 36) and No. 37 with jumper wires Check left rear power window motor operation:
      The left rear power window should open (or close).
      • Faulty left rear power window switch
      • Faulty left rear power window motor
      • Poor ground(G601)or an open in the ground wire
      • An open or high resistance in the wire
      36 PUR
      21 LT BLU Turn the ignition switch ON (II) or power mode ON, connect terminals No. 25 and No. 34 (or No. 21), and terminals No. 21 (or No. 34) and No. 37 with jumper wires Check right rear power window motor operation:
      The right rear power window should open (or close).
      • Faulty passenger's under-dash fuse/relay box
      • Faulty right rear power window switch
      • Faulty right rear power window motor
      • Poor ground(G652)or an open in the ground wire
      • An open or high resistance in the wire
      34 RED
      26 LT GRN Connect terminals No. 25 and No. 26 with a jumper wire Check left and right rear power window switch lights:
      The left and right rear power window switch lights should come on.
      • Faulty left or right rear power window switch
      • Faulty LED
      • Poor ground (G601, G652) or an open in the ground wire
      • An open or high resistance in the wire
      • A short to ground in the wire
      27 GRY Disconnect the front passenger's power window switch 37P connector and the panoramic glass roof control unit 10P connector Check for continuity between terminal No. 27 and front passenger's power window switch 37P connector terminal No. 29:
      There should be continuity.      		 An open in the UART wire
      Check for continuity between terminal No. 27 and the panoramic glass roof control unit 10P connector terminal No. 7:
      There should be continuity.      		 An open in the UART wire
      Check for continuity to ground:
      There should be no continuity-      		 A short to ground in the UART wire
  7. Reconnect the door multiplex control unit connector to the power window master switch, and do the following input tests:
    • If any test indicates a problem, find and correct the cause, then recheck the system.
    • If all the input tests prove OK, the door multiplex control unit is faulty; replace the power window master switch (see REAR POWER WINDOW SWITCH TEST/REPLACEMENT  ).
    NOTE: After replacing the power window master switch, reset the power window control unit (see RESETTING THE POWER WINDOW CONTROL UNIT  ).
    Cavity Wire Test condition Test: Desired result Possible cause if desired result is not obtained
    13 WHT Under all conditions Measure the voltage to ground:
    There should be battery voltage.
    • Blown No. 15 (10 A) fuse in the under-hood fuse/relay box
    • An open or high resistance in the wire
    14 LT GRN Ignition switch ON (II), or power mode ON Measure the voltage to ground:
    There should be battery voltage.
    • Blown No. 16 (7.5 A) fuse in the driver's under-dash fuse/relay box
    • Faulty driver's under-dash fuse/relay box
    • An open or high resistance in the wire
    25 WHT Under all conditions Measure the voltage to ground:
    There should be battery voltage.
    • Blown No. 24 (20 A) fuse in the driver's under-dash fuse/relay box
    • Faulty driver's under-dash fuse/relay box
    • An open or high resistance in the wire
    32 BLK In all ignition switch positions or all power modes Measure the voltage to ground:
    There should be less than 0.2 V.
    • Poor ground (G402)
    • An open or high resistance in the ground wire
    37 BLK In all ignition switch positions or all power modes Measure the voltage to ground:
    There should be less than 0.2 V.
    • Poor ground (G401)
    • An open or high resistance in the ground wire
    3 PUR Ignition switch ON (II), or power mode ON Measure the voltage to ground:
    There should be at least about 10V.
    • Faulty power window master switch
    • A short to ground in the wire
    20 ORN Ignition switch ON (II) or power mode ON, and driver's power window moving up or down Measure the voltage between terminals No. 20 and No. 32:
    An analog meter should alternate between 0 V and about 5 V (a digital voltmeter should read about 2.5 V while the window moves).
    • Faulty power window master switch
    • Faulty driver's power window motor
    • An open or high resistance in the wire
    • A short to ground in the wire
    22 PNK Ignition switch ON (II) or power ON, and driver's power window moving up or down Measure the voltage between the terminals No. 22 and No. 32:
    An analog meter should alternate between 0 V and about 5 V (a digital voltmeter should read about 2.5 V while the window moves).
    • Faulty power window master switch
    • Faulty driver's power window motor
    • An open or high resistance in the wire
    • A short to ground in the wire
