Power Window Master Switch Replacement

  1. Remove the driver's power window switch panel (see FRONT DOOR PANEL REMOVAL/INSTALLATION ).
  2. Remove the four screws (A), then remove the power window master switch (B) from the power window switch panel assembly (C).

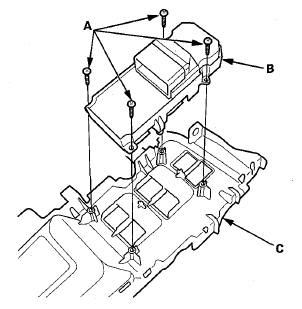

    Fig 1: Identifying Screws, Power Window Master Switch And Power Window Switch Panel Assembly
    G08076892Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Install the switch in the reverse order of removal.
  4. After replacement, reset the power window control unit (see RESETTING THE POWER WINDOW CONTROL UNIT  ).
