Rear Power Window Switch Test/Replacement

  1. Remove the rear door panel (see REAR DOOR PANEL REMOVAL/INSTALLATION ).
  2. Remove the three screws (A) and rear power window switch (B) from the armrest assembly (C).

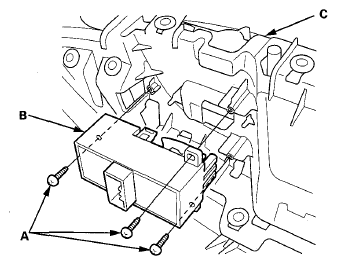

    Fig 1: Identifying Screws, Rear Power Window Switch And Armrest Assembly
    G08076891Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Swap the rear power window switch with another known-good power window switch and test. If the original power window switch is faulty; replace it.
  4. Install the switch in the reverse order of removal.
