VSA Modulator-Control Unit Removal and Installation: Removal

Turn the ignition switch to LOCK (0), or press the engine start/stop button to select the OFF mode.
Remove the air cleaner (see AIR CLEANER ELEMENT INSPECTION/REPLACEMENT ).

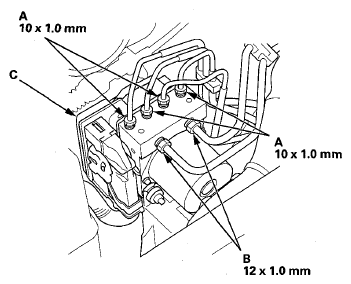

Disconnect the 10 mm brake lines (A) and the 12 mm brake lines (B) from the VSA modulator-control unit (C).

Fig 1: Identifying VSA Modulator-Control Unit And Brake Lines
Courtesy of AMERICAN HONDA MOTOR CO., INC.

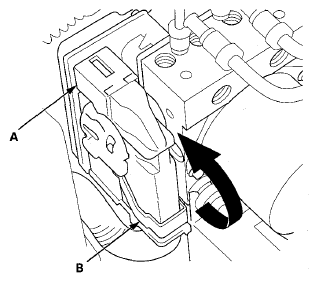

Disconnect the VSA modulator-control unit 46P connector (A) by pulling up the lever (B); the connector disconnects itself.

Fig 2: Identifying Lever Connector
Courtesy of AMERICAN HONDA MOTOR CO., INC.

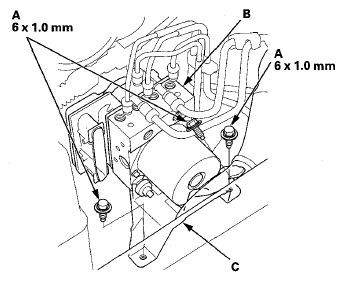

Remove the VSA modulator-control unit bracket mounting bolts (A), then remove the VSA modulator-control unit (B)-with the bracket (C) from the body.

Fig 3: Identifying VSA Modulator-Control Unit Bracket Mounting Bolts
Courtesy of AMERICAN HONDA MOTOR CO., INC.

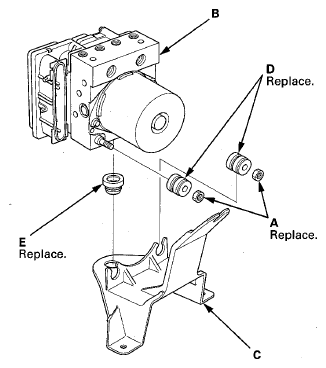

Remove the locknuts (A), then remove the VSA modulator-control unit (B) from the bracket (C).

Fig 4: Identifying VSA Modulator-Control Unit, Bracket And Locknuts
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Remove the rubber dampers (D) and the grommet (E) from the VSA modulator-control unit.
