VSA Sensor Neutral Position Memorization

NOTE: Do not press the brake pedal during this procedure.

Park the vehicle on a flat and level surface, with the steering wheel in the straight ahead position.
With the ignition switch in LOCK (0), or press the engine start/stop button to select the OFF mode, connect the HDS to the data link connector (DLC) (A) under the driver's side of the dashboard.

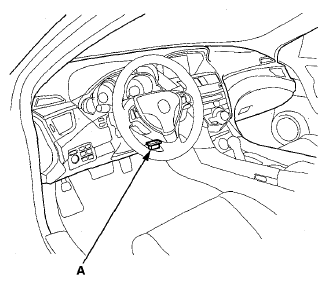

Fig 1: Identifying Data Link Connector
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Turn the ignition switch to ON (II), or press the engine start/stop button to select the ON mode.
Make sure the HDS communicates with the vehicle and the VSA modulator-control unit. If it does not, go to the DLC circuit troubleshooting (see DLC CIRCUIT TROUBLESHOOTING ).
Select VSA ADJUSTMENT with the HDS, and follow the screen prompts.
NOTE: See the HDS Help menu for specific instructions.
Turn the ignition switch in LOCK (0), or press the engine start/stop button to select the OFF mode.
