Connector To Fuse/Relay Box Index

Under-Hood Fuse/Relay Box

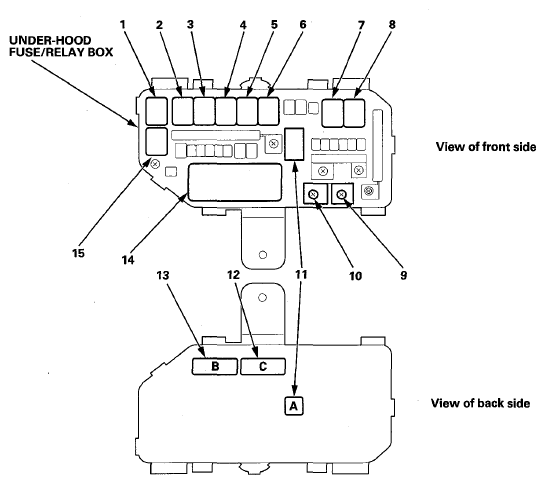

Fig 1: Identifying Under-Hood Fuse/Relay Box
G08074252Courtesy of AMERICAN HONDA MOTOR CO., INC.
UNDER-HOOD FUSE/RELAY BOX

Socket Ref Terminal Connects to Notes
A (electrical load detector (ELD)) 11 3 Right engine compartment wire harness (see CONNECTOR TO HARNESS INDEX )
A/C compressor clutch relay 15 4
A/C condenser fan relay 2 4
B 13 14 Right engine compartment wire harness (see CONNECTOR TO HARNESS INDEX )
Blower motor relay 8 4
C 12 5 Right engine compartment wire harness (see CONNECTOR TO HARNESS INDEX )
Electronic throttle control system (ETCS) control relay 6 4
Ignition coil relay 5 4
PGM-FI main relay 1 3 4
PGM-FI subrelay 4 4
Rear window defogger relay 1 4
Relay circuit board 14   Connector B (14P) and connector C (5P)
Headlight washer relay 7 4   (1)
T1 9 -- Starter cable (see CONNECTOR TO HARNESS INDEX )
T101 10 -- Engine wire harness (Engine section) (see CONNECTOR TO HARNESS INDEX )
(1) With headlight washer

Auxiliary Under-Hood Fuse/Relay Box

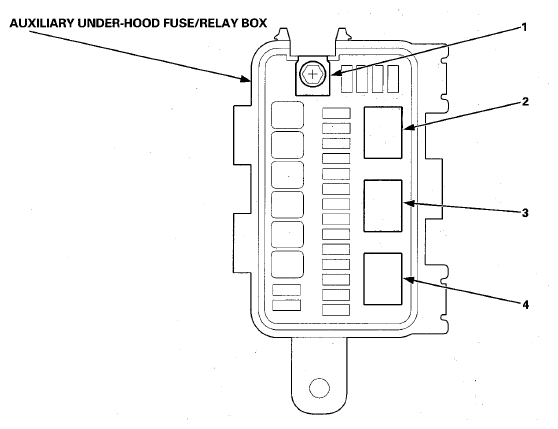

Fig 2: Identifying Auxiliary Under-Hood Fuse/Relay Box
G08074253Courtesy of AMERICAN HONDA MOTOR CO., INC.
AUXILIARY UNDER-HOOD FUSE/RELAY BOX

Socket Ref Terminal Connects to Notes
Brake light relay 3 5   (1)
Headlight high/low beam switching solenoid relay 4 4
Starter cut relay 2 2 5
T5 1 -- Starter cable (see CONNECTOR TO HARNESS INDEX )
(1) With ACC

Driver's Under-Dash Fuse/Relay Box

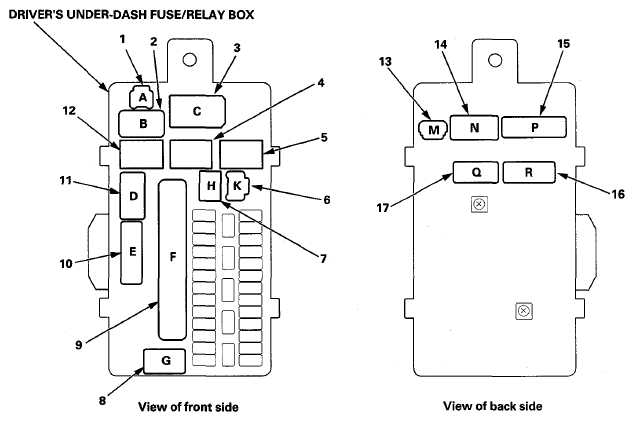

Fig 3: Identifying Driver's Under-Dash Fuse/Relay Box
G08074254Courtesy of AMERICAN HONDA MOTOR CO., INC.
DRIVER'S UNDER-DASH FUSE/RELAY BOX

Socket Ref Terminal Connects to Notes
A 1 -- Not used
Accessory relay 4 4   (1)
B 2 -- Not used
C 3 5 Dashboard wire harness (view of driver's side) (see CONNECTOR TO HARNESS INDEX )
Console accessory power socket relay 4 4   (2)
D 11 16 Floor wire harness (left branch) (see CONNECTOR TO HARNESS INDEX )
E 10 20 Floor wire harness (left branch) (see CONNECTOR TO HARNESS INDEX )
F 9 33 Left engine compartment wire harness (see CONNECTOR TO HARNESS INDEX )
G 8 13 Left engine compartment wire harness (see CONNECTOR TO HARNESS INDEX )
H (optional connector) 7 12
K (MICU service check connector) 6 3
M 13 4 Dashboard wire harness (view of driver's side) (see CONNECTOR TO HARNESS INDEX )
N 14 16 Dashboard wire harness (view of driver's side) (see CONNECTOR TO HARNESS INDEX )
P 15 20 Dashboard wire harness (view of driver's side) (see CONNECTOR TO HARNESS INDEX )
PGM-FI main relay 2 12 4
Q 17 20 Dashboard wire harness (view of driver's side) (see CONNECTOR TO HARNESS INDEX )
R 16 24 Dashboard wire harness (view of driver's side) (see CONNECTOR TO HARNESS INDEX )
Starter cut relay 1 5 4
(1) With keyless access system
(2) Without keyless access system

Passenger's Under-Dash Fuse/Relay Box

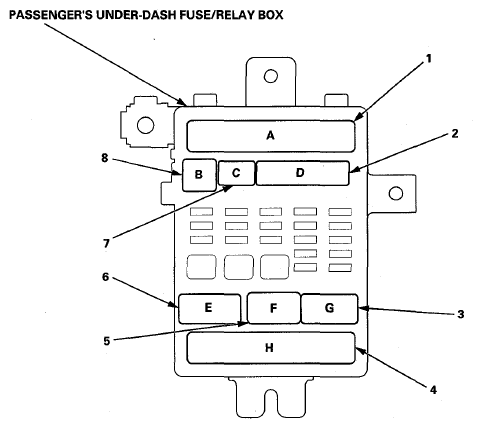

Fig 4: Identifying Passenger's Under-Dash Fuse/Relay Box
G08074255Courtesy of AMERICAN HONDA MOTOR CO., INC.
PASSENGER'S UNDER-DASH FUSE/RELAY BOX

Socket Ref Terminal Connects to Notes
A 1 38 Dashboard wire harness (view of middle to passenger's side) (see CONNECTOR TO HARNESS INDEX )
B 8 1 Right engine compartment wire harness (see CONNECTOR TO HARNESS INDEX )
C 7 12 Not used
D 2 28 Audio wire harness (see CONNECTOR TO HARNESS INDEX )
E 6 18 Right engine compartment wire harness (see CONNECTOR TO HARNESS INDEX )
F 5 2 Right engine compartment wire harness (see CONNECTOR TO HARNESS INDEX )
G 3 16 Not used
H 4 38 Floor wire harness (right branch) (see CONNECTOR TO HARNESS INDEX )
