With Keyless Access System

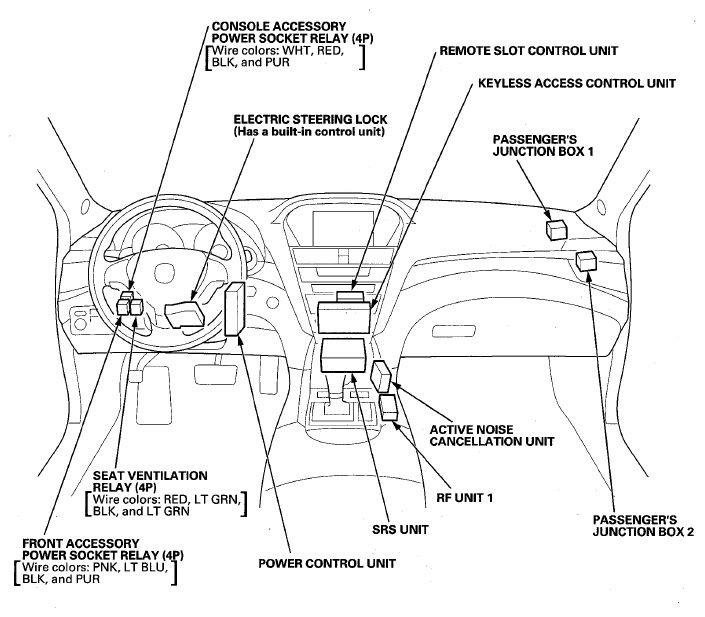

Fig 1: Identifying Relay And Control Unit Locations - With Keyless Access System
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
