Drive Belt Replacement

Special Tools Required

Belt Tension Release Tool Snap-on TK9317*, commercially available

*: Available through the Honda Tool and Equipment Program 888-424-6857.

1. Move the auto-tensioner (A) using the belt tension release tool (TK9317) in the direction of the arrow to relieve tension from the drive belt, then remove the drive belt.

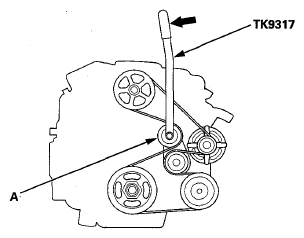

   Fig 1: Moving Auto-Tensioner Using Belt Tension Release Tool (TK9317)

   Courtesy of AMERICAN HONDA MOTOR CO., INC.
2. Install the new drive belt in the reverse order of removal.
