Front Engine Mount Removal and Installation: Installation

Connect the vacuum hose (A), then align the front engine mount (B) with its mounting holes and tighten the new front engine mount mounting bolts (C).

Fig 1: Identifying Front Engine Mount And Vacuum Hose
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Remove the jack and the wood block.

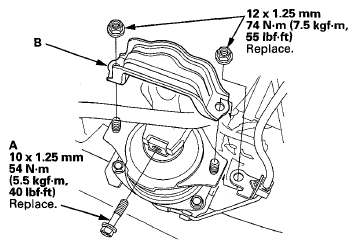

Tighten the new front engine mount bolt (A), then install the front engine mount stop (B).

Fig 2: Identifying Front Engine Mount Stop And Front Engine Mount Bolt
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install the radiator fan shroud assembly (see FAN, FAN MOTOR, AND SHROUD REMOVAL AND INSTALLATION ).
Install the splash shield (see FRONT SPLASH SHIELD REPLACEMENT ) and the engine undercover (see ENGINE UNDERCOVER REPLACEMENT ).
