Sealing Bolt Installation

NOTE: When installing the sealing bolts (A), always use new washers (B).

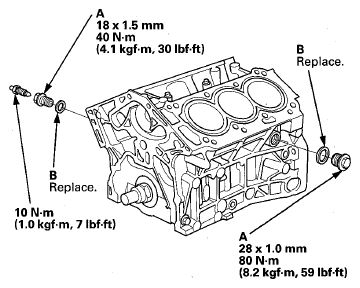

Fig 1: Sealing Bolts And Washers With Torque Specifications
G08075327Courtesy of AMERICAN HONDA MOTOR CO., INC.
