Driving Pattern

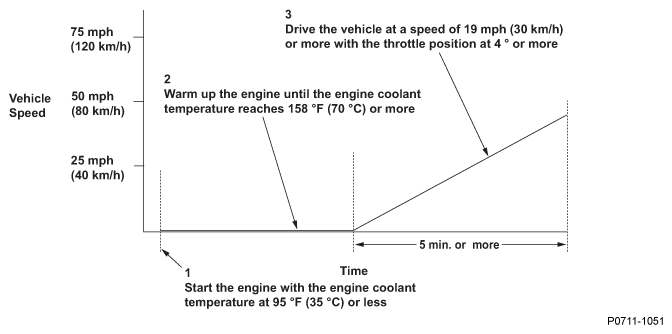

Fig 1: Vehicle Driving Pattern
G06562775Courtesy of AMERICAN HONDA MOTOR CO., INC.
  1. Stuck at low temperature
    1. Start the engine with the engine coolant temperature at 95 °F (35 °C) or less.
    2. Warm up the engine until the engine coolant temperature reaches 158 °F (70 °C) or more.
    3. Drive the vehicle at a speed of 19 mph (30 km/h) or more with the throttle position at 4 ° or more for at least 5 minutes.
  2. Stuck at high temperature
    1. Turn off the engine with the engine coolant temperature at 158 °F (70 °C) or more.
    2. Restart the engine after the engine coolant temperature drops to 95 °F (35 °C) or less.
    3. Warm up the engine until the engine coolant temperature reaches 158 °F (70 °C), and wait for at least 20 seconds.
