DTC P0761: Shift Solenoid Valve C Stuck OFF: Notes

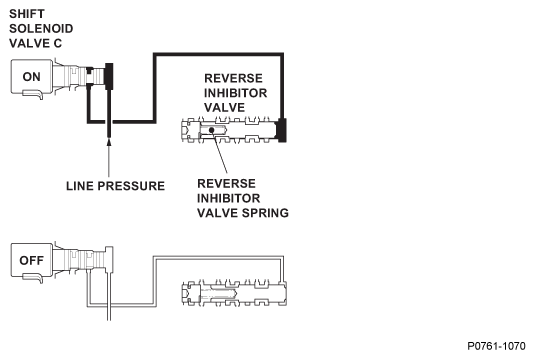

Fig 1: Shift Solenoid Valve C Operation Diagram

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Hydraulic pressure supply to the clutch by shift solenoid valve output

HYDRAULIC PRESSURE REFERENCE CHART

	D In-gear	1st	R In-gear	Reverse
Shift solenoid valve A	ON	ON	ON	OFF
Shift solenoid valve B	OFF	ON	OFF	OFF
Shift solenoid valve C	OFF	OFF	ON	ON
1st clutch	CPCD	LINE	-	-
4th clutch	-	-	CPCD	LINE
CPCD: A/T clutch pressure control solenoid valve D pressure LINE: Line pressure
