Driving Pattern

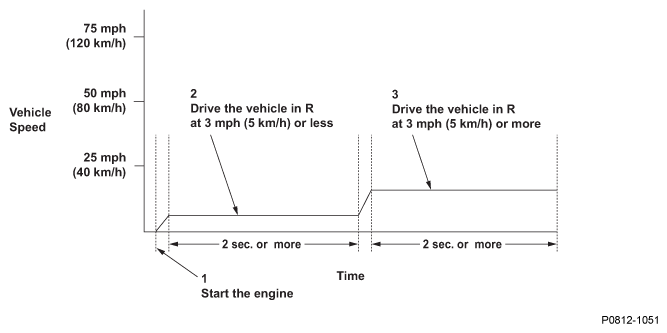

Fig 1: Vehicle Driving Pattern
G06562833Courtesy of AMERICAN HONDA MOTOR CO., INC.
  1. Start the engine.
  2. Drive the vehicle in R at 3 mph (5 km/h) or less for at least 2 seconds.
  3. Drive the vehicle in R at 3 mph (5 km/h) or more for at least 2 seconds.
