DTC P16BE: Starter Cut Relay 1 Malfunction: Notes

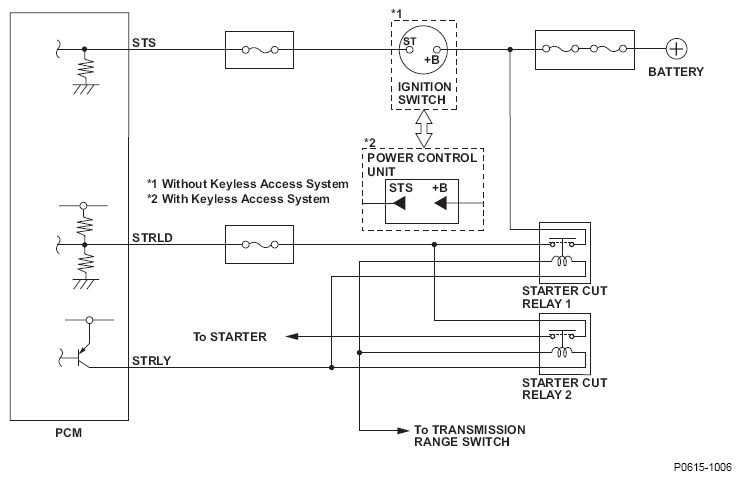

Fig 1: Starter Cut Relay - Circuit Diagram
G06616929Courtesy of AMERICAN HONDA MOTOR CO., INC.
