EVAP Canister Purge Valve Replacement

Disconnect the hoses (A) and EVAP canister purge valve 2P connector (B).

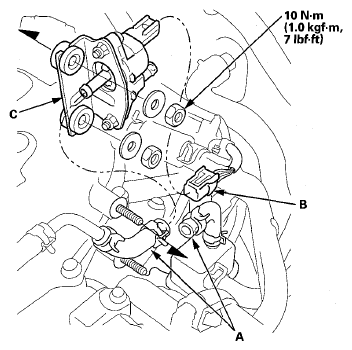

Fig 1: EVAP Canister Purge Valve 2P Connector, Bracket And Hoses With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Remove the EVAP canister purge valve and the bracket (C).
Remove the EVAP canister purge valve (A) from the bracket (B).

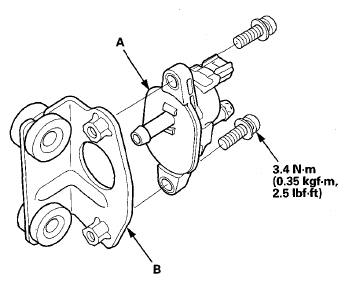

Fig 2: EVAP Canister Purge Valve And Bracket With Mounting Bolts With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install the parts in the reverse order of removal.
