EVAP Canister Replacement

Raise the vehicle on a lift.
Remove the EVAP canister cover (A).

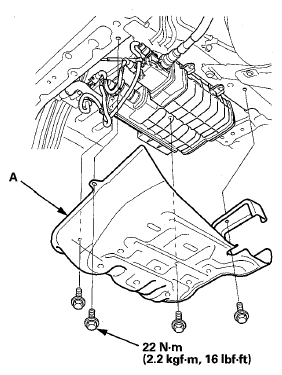

Fig 1: EVAP Canister Cover With Mounting Bolts With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Disconnect the quick-connect fitting (A), the hoses (B), the EVAP canister vent shut valve 2P connector (C), and the FTP sensor 3P connector (D), and remove the harness clamps (E).

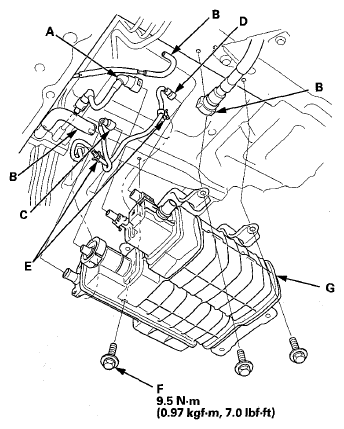

Fig 2: Quick-Connect Fitting, Hoses, EVAP Canister Vent Shut Valve 2P Connector With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Remove the bolts (F).
Remove the EVAP canister assembly (G).
Remove the EVAP canister (A) from the bracket.

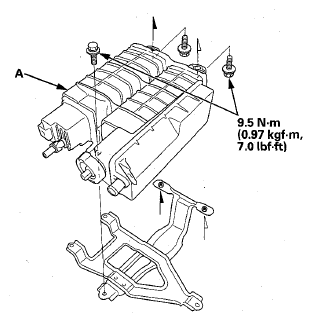

Fig 3: EVAP Canister With Mounting Bolts With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Remove the EVAP canister vent shut valve (A) and the FTP sensor (B) from the EVAP canister.

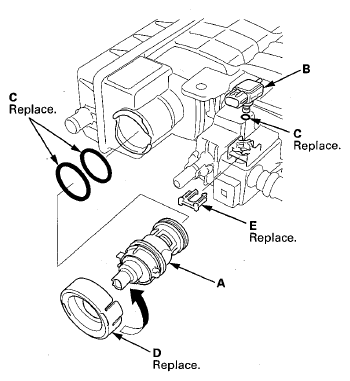

Fig 4: Identifying EVAP Canister Vent Shut Valve, FTP Sensor, O-Rings, Cap And Retainer
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Reassemble the EVAP canister with new O-rings (C), a new cap (D), and a new retainer (E), then install the EVAP canister bracket.
NOTE: Do not coat the O-rings with oil.
Install the parts in the reverse order of removal.
