Component Location Index

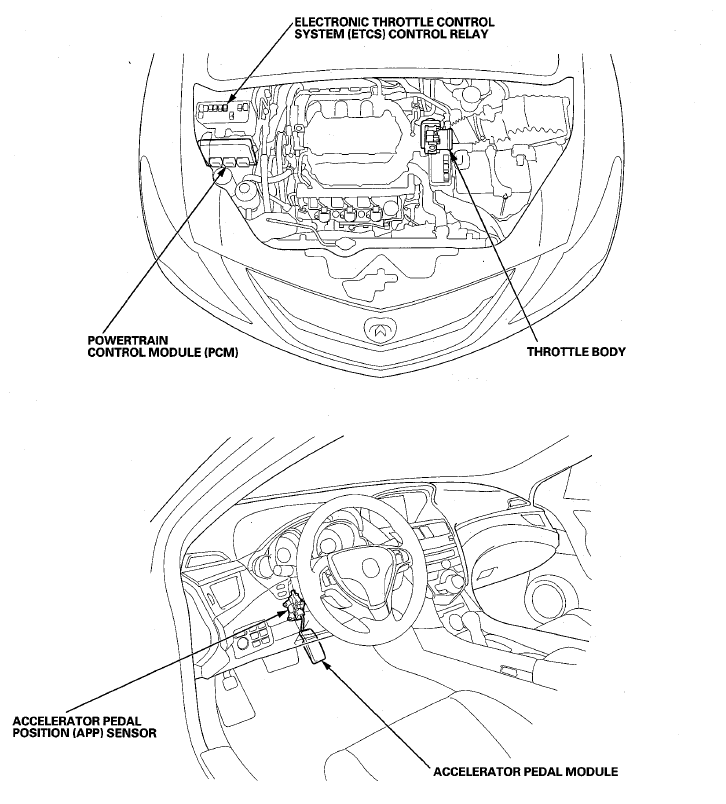

Fig 1: Identifying Electronic Throttle Control System Component Location
G08072812Courtesy of AMERICAN HONDA MOTOR CO., INC.
