PCM Circuit Diagram

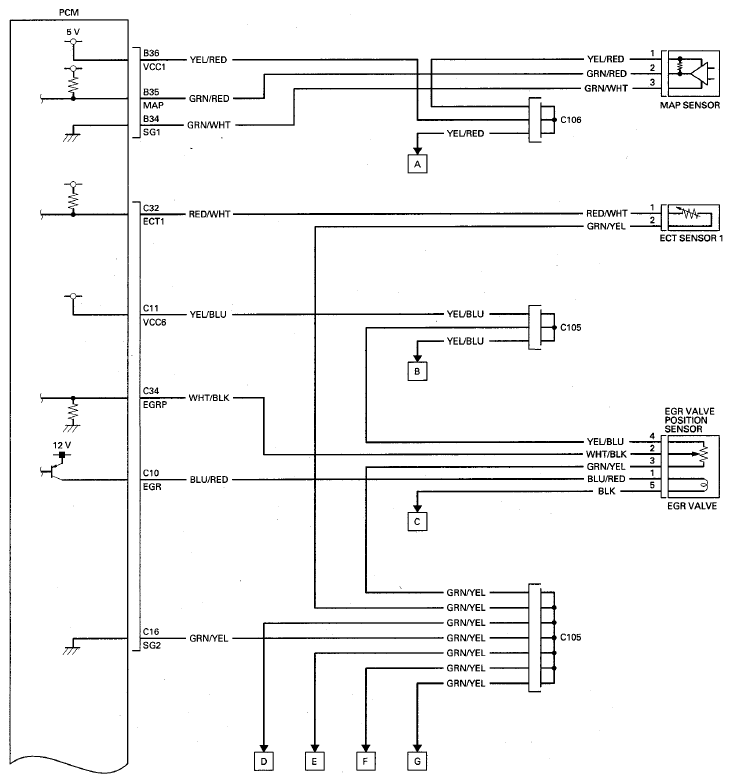

Fig 1: PCM Circuit Diagram (1 Of 16)

G08075449

Courtesy of AMERICAN HONDA MOTOR CO., INC.

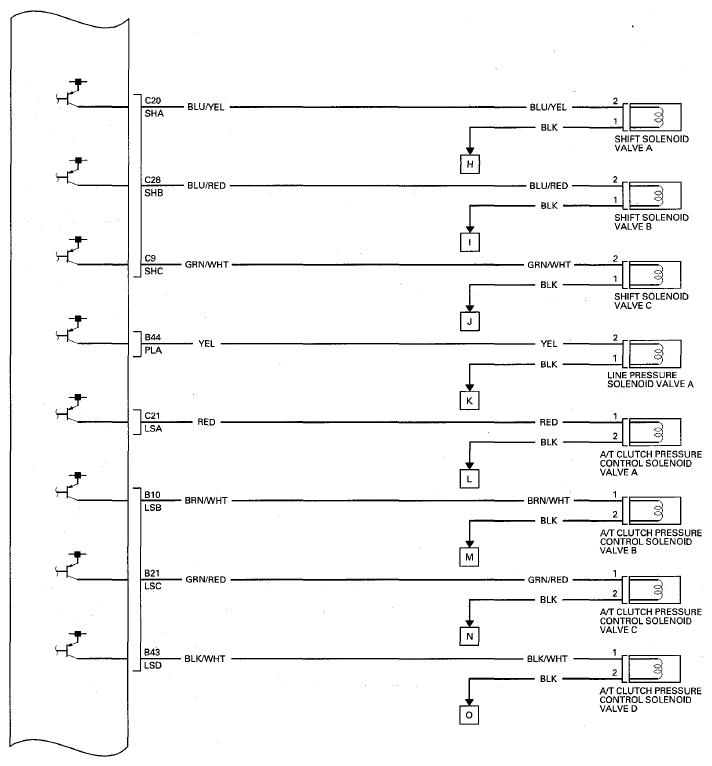

Fig 2: PCM Circuit Diagram (2 Of 16)

G08075450

Courtesy of AMERICAN HONDA MOTOR CO., INC.

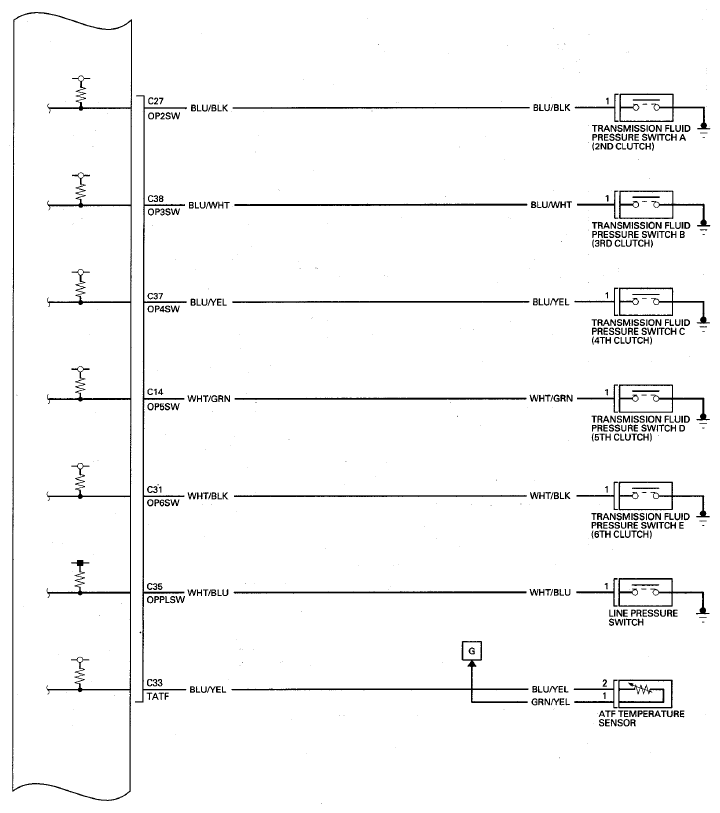

Fig 3: PCM Circuit Diagram (3 Of 16)

G08075451

Courtesy of AMERICAN HONDA MOTOR CO., INC.

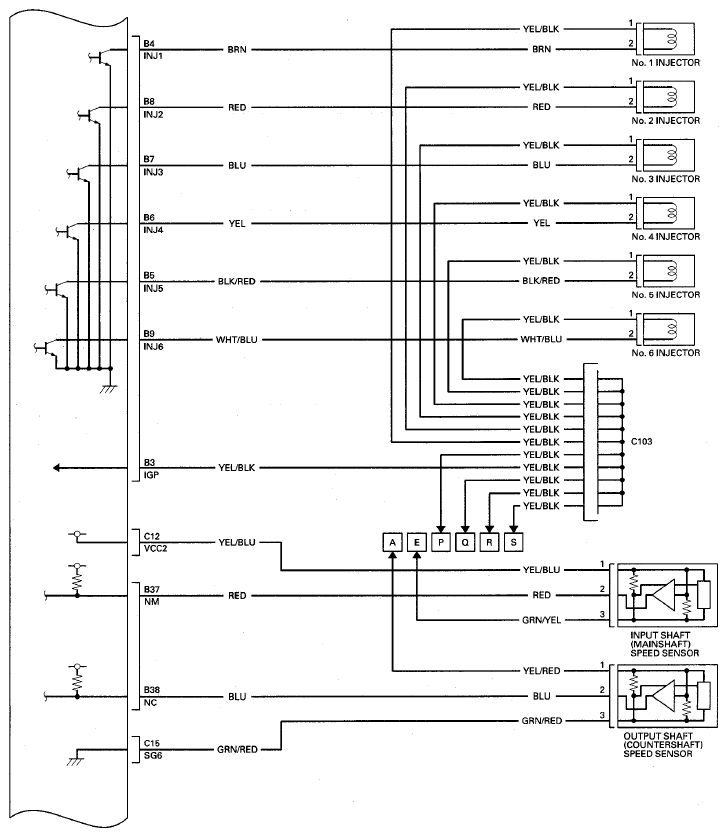

Fig 4: PCM Circuit Diagram (4 Of 16)

G08075452

Courtesy of AMERICAN HONDA MOTOR CO., INC.

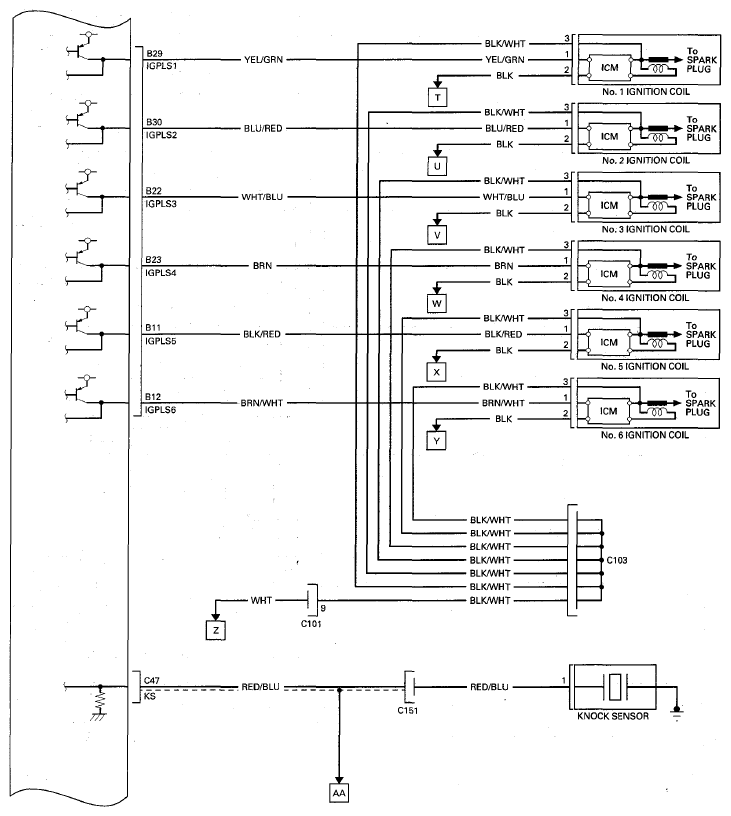

Fig 5: PCM Circuit Diagram (5 Of 16)

G08075453

Courtesy of AMERICAN HONDA MOTOR CO., INC.

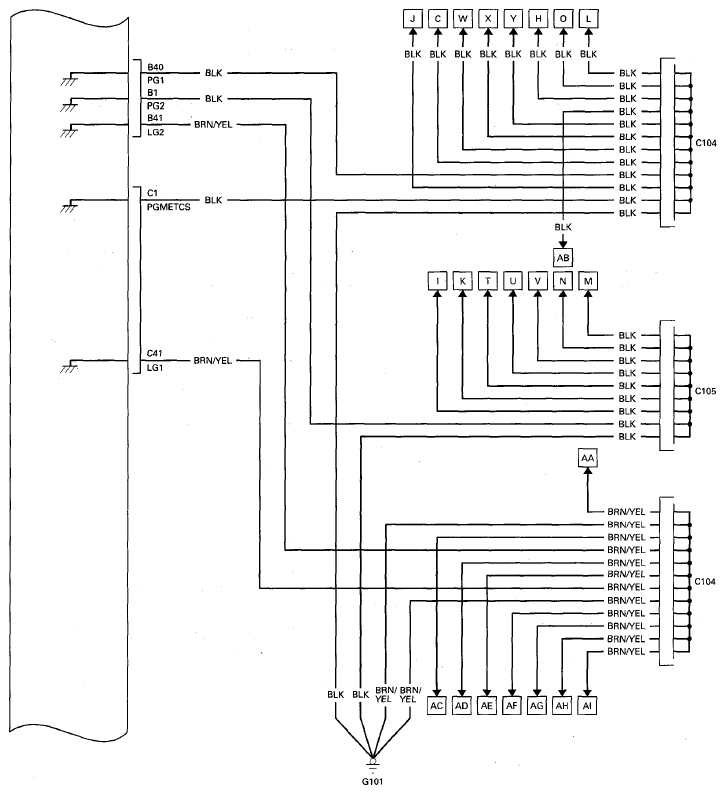

Fig 6: PCM Circuit Diagram (6 Of 16)

G08075454

Courtesy of AMERICAN HONDA MOTOR CO., INC.

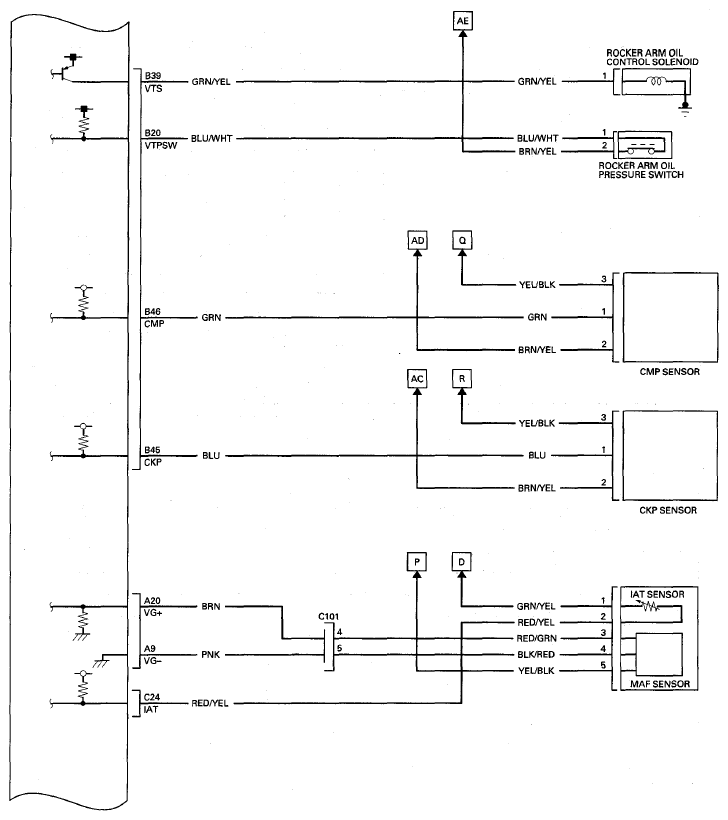

Fig 7: PCM Circuit Diagram (7 Of 16)

G08075455

Courtesy of AMERICAN HONDA MOTOR CO., INC.

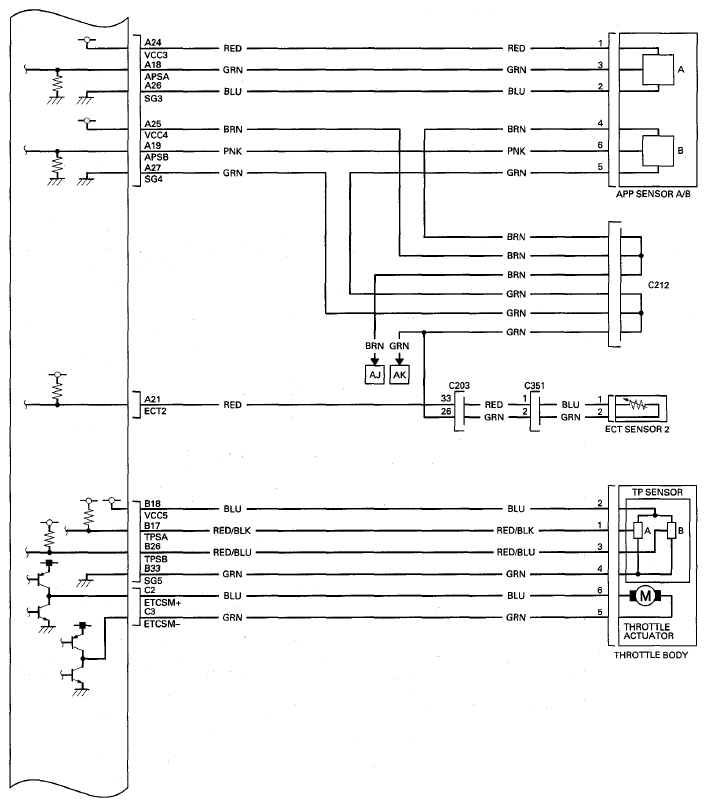

Fig 8: PCM Circuit Diagram (8 Of 16)

G08075456

Courtesy of AMERICAN HONDA MOTOR CO., INC.

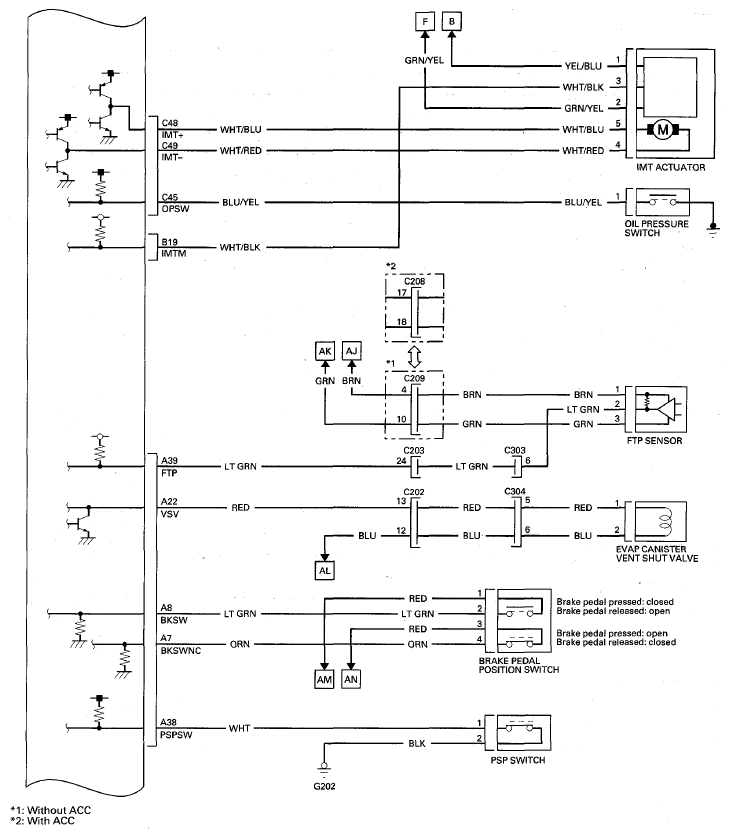

Fig 9: PCM Circuit Diagram (9 Of 16)

G08075457

Courtesy of AMERICAN HONDA MOTOR CO., INC.

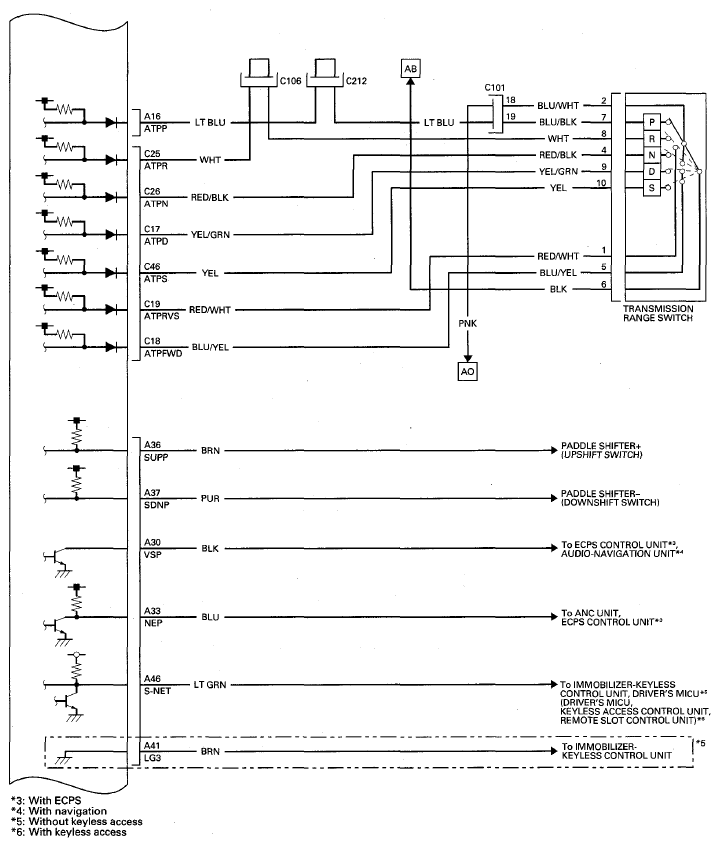

Fig 10: PCM Circuit Diagram (10 Of 16)

G08075458

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 11: PCM Circuit Diagram (11 Of 16)

G08075459

Courtesy of AMERICAN HONDA MOTOR CO., INC.

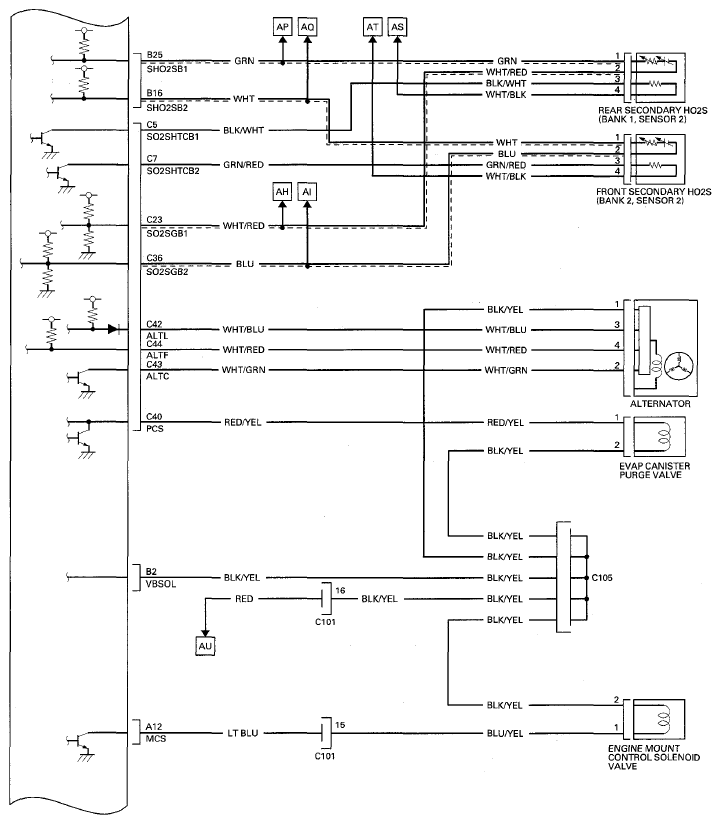

Fig 12: PCM Circuit Diagram (12 Of 16)

G08075460

Courtesy of AMERICAN HONDA MOTOR CO., INC.

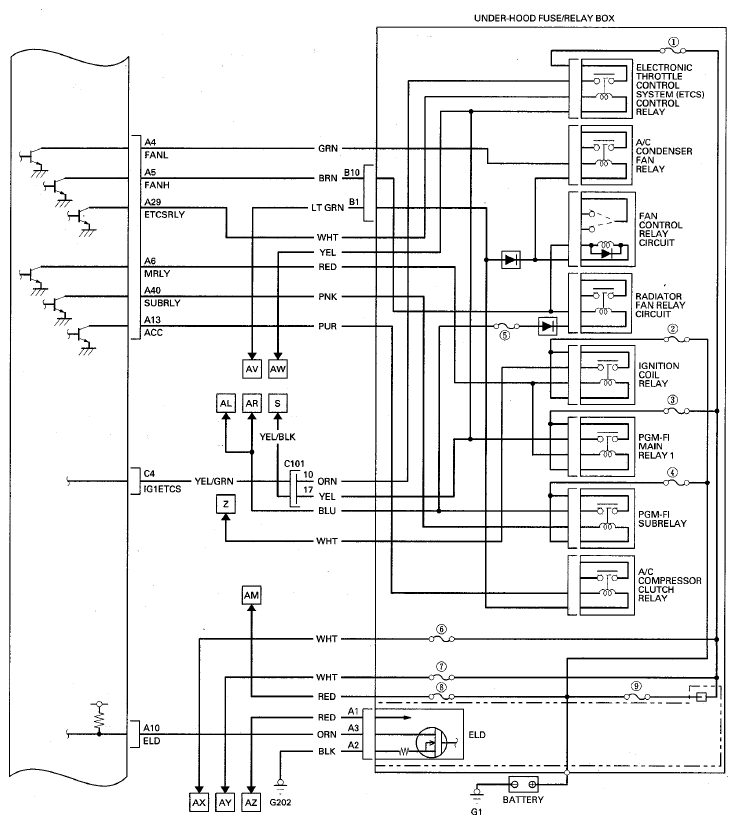

Fig 13: PCM Circuit Diagram (13 Of 16)

G08075461

Courtesy of AMERICAN HONDA MOTOR CO., INC.

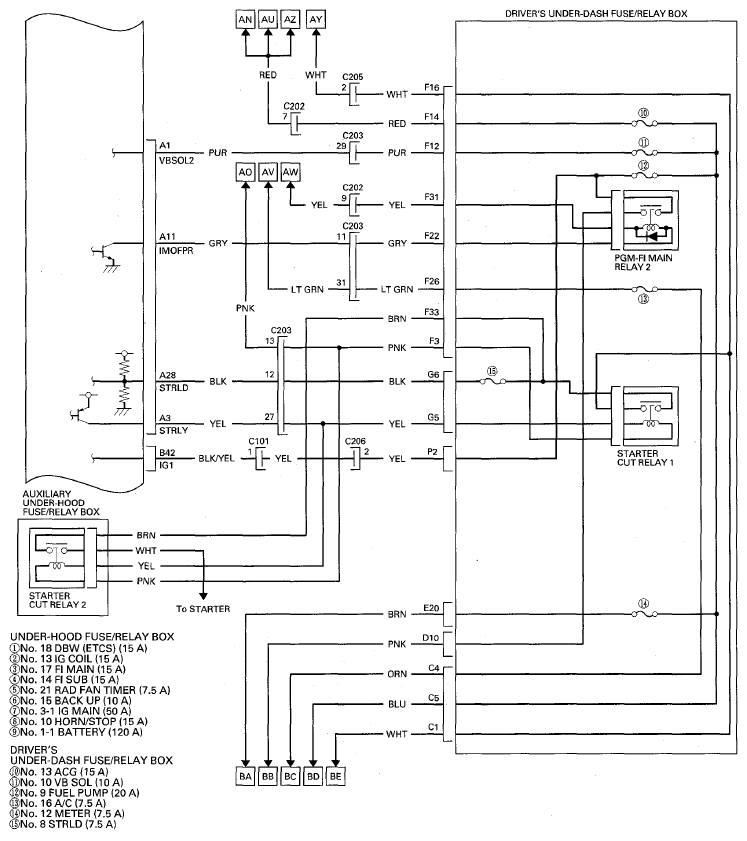

Fig 14: PCM Circuit Diagram (14 Of 16)

G08075462

Courtesy of AMERICAN HONDA MOTOR CO., INC.

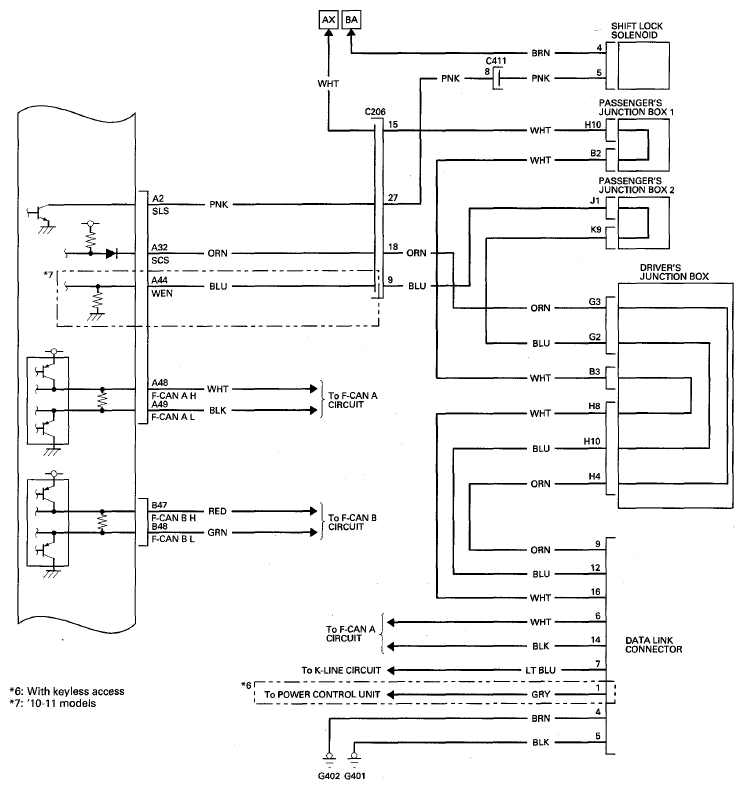

Fig 15: PCM Circuit Diagram (15 Of 16)

G08075463

Courtesy of AMERICAN HONDA MOTOR CO., INC.

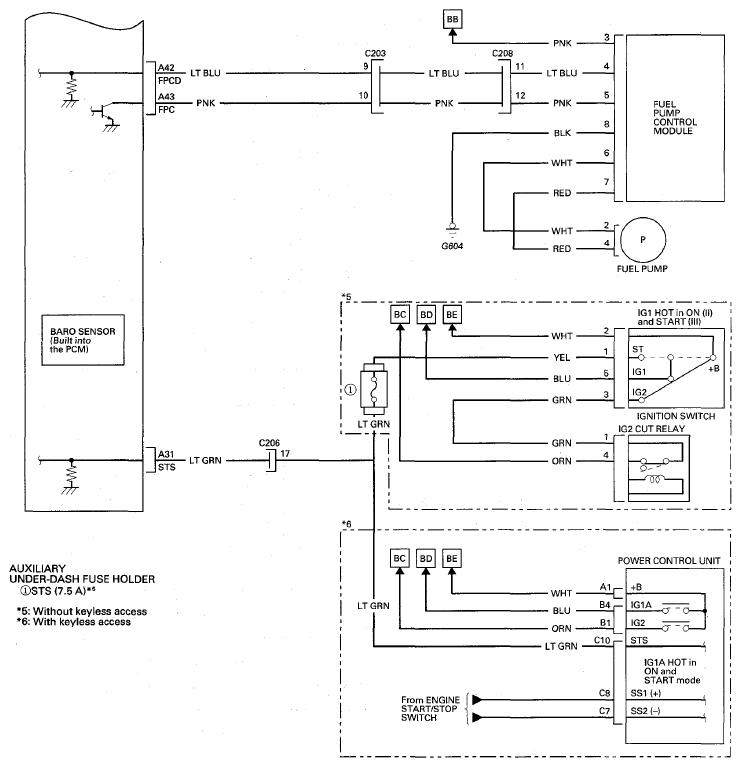

Fig 16: PCM Circuit Diagram (16 Of 16)

G08075464

Courtesy of AMERICAN HONDA MOTOR CO., INC.
