Fuel Tank Unit Removal and Installation: Removal

Relieve the fuel pressure (see FUEL PRESSURE RELIEVING ).
Remove the rear seat cushion (see REAR SEAT REMOVAL/INSTALLATION ).
Remove the access panel (A) from the floor.

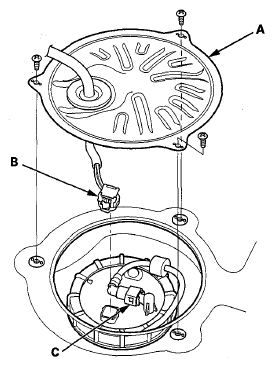

Fig 1: Identifying Access Panel And Fuel Tank Unit 4P Connector
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Disconnect the fuel tank unit 4P connector (B).
Disconnect the quick-connect fitting (C) from the fuel tank unit.
Using the fuel sender wrench, loosen the locknut (A).

Fig 2: Loosening Locknut Using Fuel Sender Wrench
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Remove the locknut (A), the locknut plate (B), and the fuel tank unit (C).

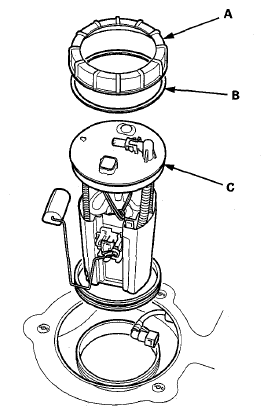

Fig 3: Identifying Locknut, Locknut Plate And Fuel Tank Unit
Courtesy of AMERICAN HONDA MOTOR CO., INC.
