MAP Sensor Replacement

Remove the engine cover (see step 1 on REMOVAL ).
Disconnect the MAP sensor connector (A).

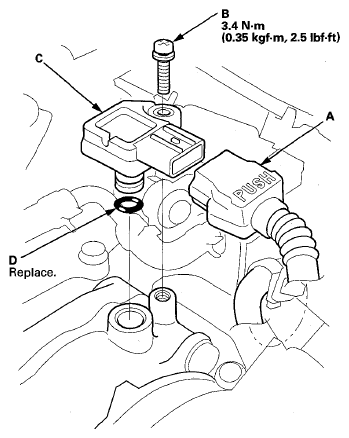

Fig 1: MAP Sensor, Connector, Screw And O-Ring With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Remove the screw (B).
Remove the MAP sensor (C).
Install the parts in the reverse order of removal with a new O-ring (D).
