Driver's Power Seat Motor Test

NOTE: SRS components are located in this area. Review the SRS component locations (see COMPONENT LOCATION INDEX ), and precautions and procedures (see PRECAUTIONS AND PROCEDURES ) before doing repairs or servicing.

Remove the driver's seat (see FRONT SEAT REMOVAL/INSTALLATION ).
Disconnect the connector from each power seat motor.
NOTE:
- For the recline motor, remove the seat-back cover (see FRONT SEAT-BACK COVER REPLACEMENT ).
- All connectors are terminal side of male terminals.

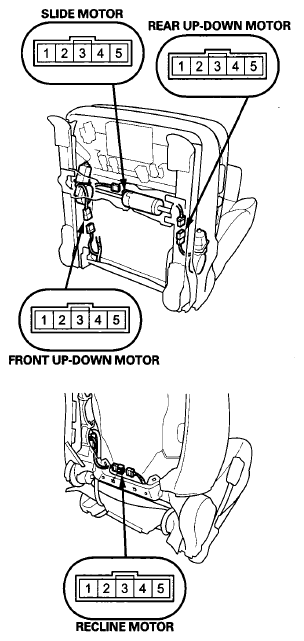

  Fig 1: Identifying Slide, Rear And Front Up-Down And Recline Motors
  Courtesy of AMERICAN HONDA MOTOR CO., INC.
Test each motor by connecting power and ground according to the table. When the motor stops running, disconnect battery power immediately.

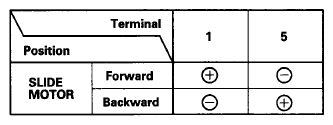

Fig 2: Testing Slide Motor By Connecting Power And Ground According To Table
Courtesy of AMERICAN HONDA MOTOR CO., INC.

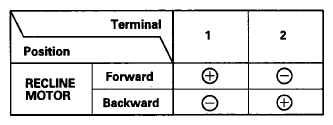

Fig 3: Testing Recline Motor By Connecting Power And Ground According To Table
Courtesy of AMERICAN HONDA MOTOR CO., INC.

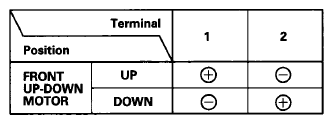

Fig 4: Testing Front Up-Down Motor By Connecting Power And Ground According To Table
Courtesy of AMERICAN HONDA MOTOR CO., INC.

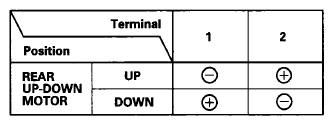

Fig 5: Testing Rear Up-Down Motor By Connecting Power And Ground According To Table
Courtesy of AMERICAN HONDA MOTOR CO., INC.
If the motor does not run or fails to run smoothly, replace:
- Slide motor (see FRONT SEAT SLIDE MOTOR REPLACEMENT )
- Front up-down motor/seat frame (see FRONT SEAT FRAME REPLACEMENT )
- Rear up-down motor/seat frame (see FRONT SEAT FRAME REPLACEMENT )
- Recline motor (see FRONT SEAT RECLINE MOTOR REPLACEMENT )

NOTE: The front and rear up-down motors are part of the seat frame.
