Roof and Trunk

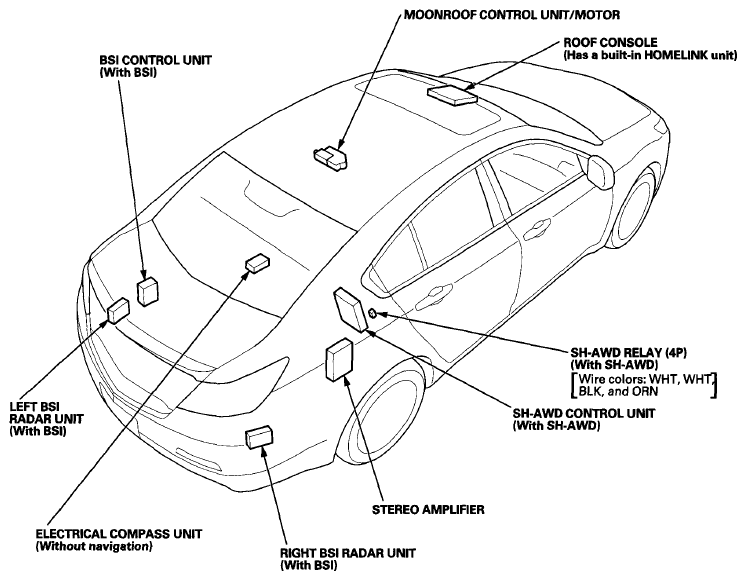

Fig 1: Identifying Roof And Trunk Components Location
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
