Accelerator Pedal Module Removal and Installation: Removal

1. Remove the driver's dashboard undercover (see DRIVER'S DASHBOARD UNDERCOVER REMOVAL/INSTALLATION ).
2. Disconnect the APP sensor 6P connector (A).

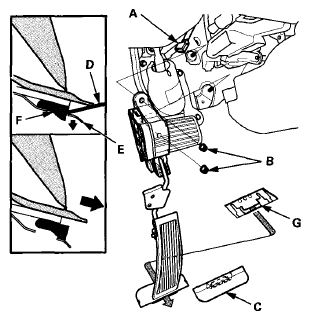

   Fig 1: Identifying APP Sensor 6P Connector, Clip, Screwdriver, Lock, Accelerator Pedal Pad, Mounting Nuts

   Courtesy of AMERICAN HONDA MOTOR CO., INC.
3. Remove the two mounting nuts (B), then remove the clip (C). Using a flat-tip screwdriver (D), push the lock (E), then remove the accelerator pedal pad (F) from the pedal stop (G).
4. Remove the accelerator pedal module.

NOTE:

• The APP sensor is not available separately. Do not disassemble the accelerator pedal module.
• If the pedal stop is damaged, replace it by pulling back the carpet (A), and removing the nuts (B), the bolt (C), and the pedal stop (D).

Fig 2: Carpet, Nuts, Bolt And Pedal Stop With Torque Specifications

Courtesy of AMERICAN HONDA MOTOR CO., INC.
