Without SH-AWD

  1. Remove the bolt (A), and disconnect the EVAP canister vent shut valve 2P connector (B), the FTP sensor 3P connector (C), and the hoses (D).

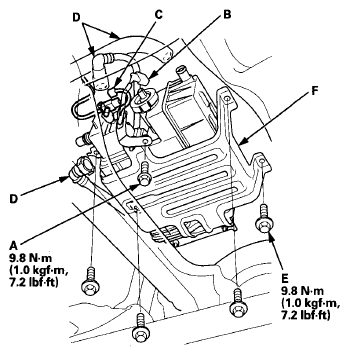

    Fig 1: Bolt, 2P Connector, FTP Sensor 3P Connector And Hoses With Torque Specifications
    G08069938Courtesy of AMERICAN HONDA MOTOR CO., INC.
  2. Remove the bolts (E), and move the EVAP canister assembly (F) to the rear.
  3. Remove the FTP sensor (A).

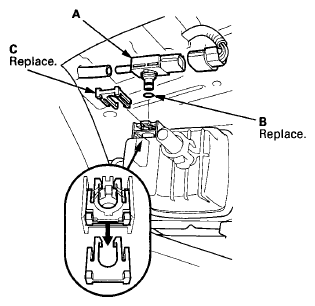

    Fig 2: Identifying FTP Sensor, O-Ring And Retainer
    G08069939Courtesy of AMERICAN HONDA MOTOR CO., INC.
  4. Install the parts in the reverse order of removal with a new O-ring (B) and a new retainer (C).
