With SH-AWD
- Remove the fuel tank unit .

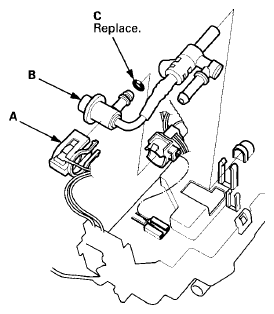

- Remove the bracket (A).
Courtesy of AMERICAN HONDA MOTOR CO., INC.
- Remove the pressure regulator (B).
- Install the parts in the reverse order of removal with new O-ring (C). When installing the fuel tank unit, align the marks on the fuel tank unit and the fuel tank .
NOTE:
- Coat the O-ring with clean engine oil; do not use any other oil or fluid.
- Do not pinch the O-ring during installation.
- Use all the new parts supplied in the pressure regulator replacement kit.
