Component Location Index

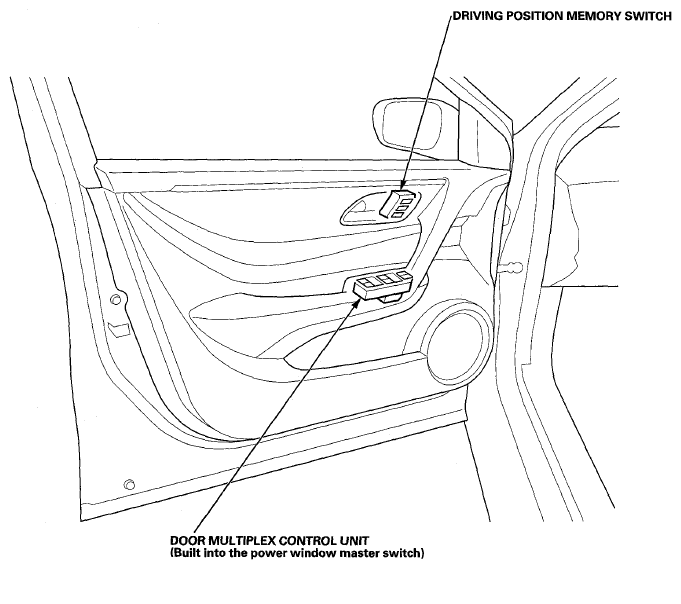

Fig 1: Identifying Driver Position Memory System Component Location (1 Of 4)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

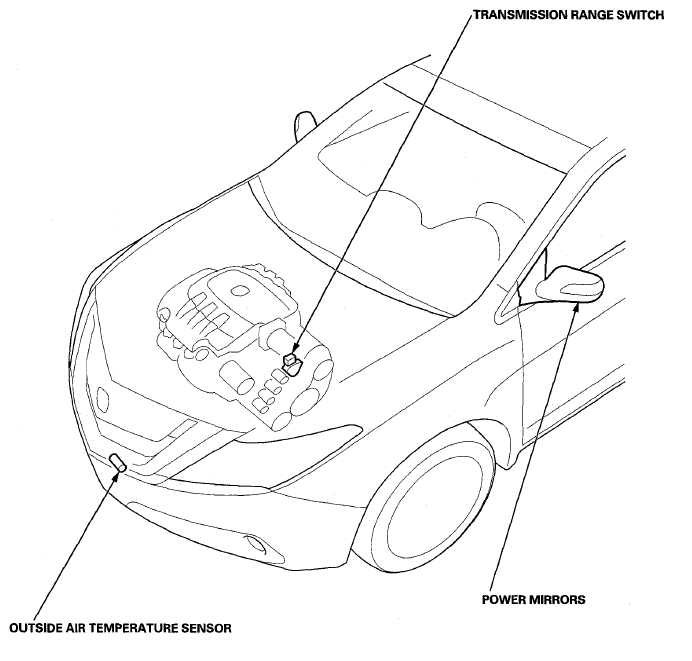

Fig 2: Identifying Driver Position Memory System Component Location (2 Of 4)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

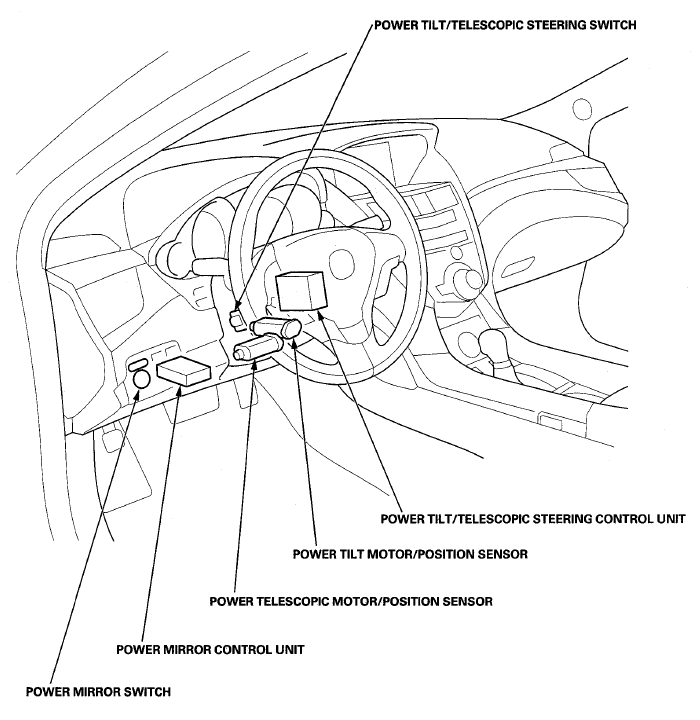

Fig 3: Identifying Driver Position Memory System Component Location (3 Of 4)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

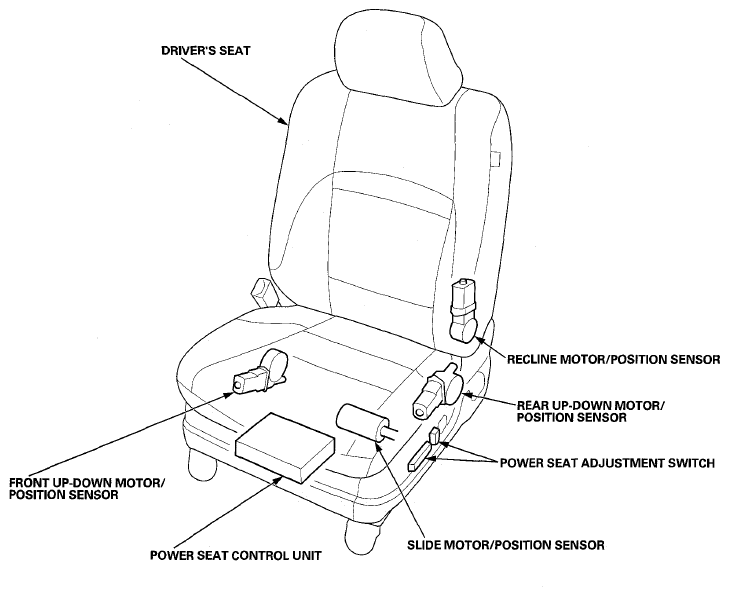

Fig 4: Identifying Driver Position Memory System Component Location (4 Of 4)

Courtesy of AMERICAN HONDA MOTOR CO., INC.
