Alternator Removal and Installation: Installation

Install the alternator, then tighten the mounting bolt (A) and the alternator bracket mounting bolt (B).

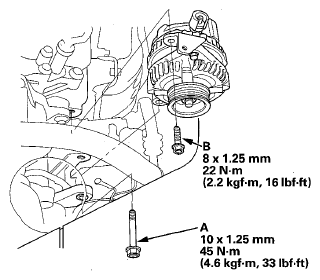

Fig 1: Alternator Bracket Mounting Bolt With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install the bolt (A) securing the harness holder (B).

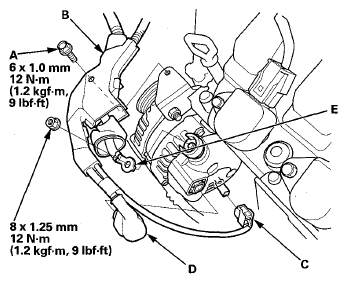

Fig 2: A/C Compressor Clutch Connector, Harness Holder And Bolt With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Connect the A/C compressor clutch connector (C) to the A/C compressor.
Connect the alternator connector (D) and the positive alternator cable (E) to the alternator. Make sure the crimped side of the ring terminal faces away from the alternator when you connect it.
Install the drive belt (see DRIVE BELT REPLACEMENT ).
Install the A/C condenser fan shroud assembly (see A/C CONDENSER FAN SHROUD INSTALLATION ).
Do the battery terminal reconnection procedure (see BATTERY TERMINAL DISCONNECTION AND RECONNECTION ).
