Accelerator Pedal Module Removal/Installation

  1. Disconnect the accelerator pedal position (APP) sensor 6P connector (A).

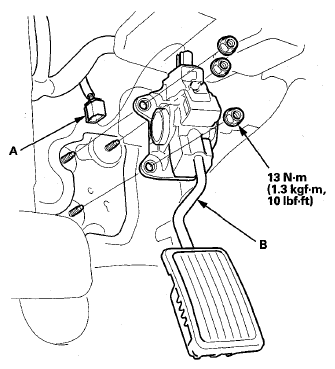

    Fig 1: Accelerator Pedal Position Sensor 6P Connector With Torque Specifications
    G08072876Courtesy of AMERICAN HONDA MOTOR CO., INC.
  2. Remove the accelerator pedal module (B).
    NOTE: The APP sensor is not available separately. Do not disassemble the accelerator pedal module.
  3. Install the parts in the reverse order of removal.
