IMT Actuator Replacement

  1. Remove the engine cover (see step 1 under INTAKE MANIFOLD REMOVAL AND INSTALLATION ).
  2. Disconnect the IMT actuator connector (A).

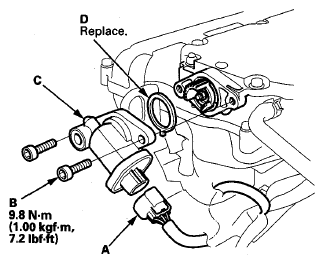

    Fig 1: IMT Actuator, Bolts And Connector With Torque Specifications
    G08073003Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Remove the bolts (B) and the IMT actuator (C).
  4. Install the parts in the reverse order of removal with new O-ring (D).
