Ignition Coil and Spark Plug Removal/Installation: Front
- Remove the engine cover (see step 7 under ENGINE REMOVAL ).

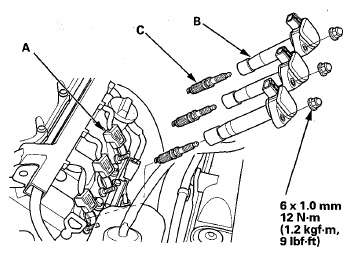

- Disconnect the ignition coil connectors (A), then remove the front ignition coils (B).
- Remove the spark plugs (C) and inspect them (see SPARK PLUG INSPECTION ).
- Apply a small amount of anti-seize compound to the plug threads, and screw the plugs into the cylinder head, finger tight, then tighten the plugs to the specified torque.
Specified Torque:
22 N.m (2.2 kgf.m, 16 lbf.ft)
- Install the front ignition coils in the reverse order of removal.
